GMAW small spatter carbon steel and low alloy steel G3Si1 co2 gas shield er70s-6 solid mig copper welding wire

Supplier: Tianjin Bridge Welding Materials Group Co., Ltd.
Region: Tianjin, China
Contact: Mr Luca Sun
Price: $0.80 / >=1080 kilograms
Min. Order: 1080 kilograms

Click here to contact

Product details

Single gross weight:	2 KG;	Place of Origin:	China;
Package Preview:	https://sc01.alicdn.com/kf/H1bcadf45c8424690825efe79a1bba097T.jpg_640x640.jpg,https://sc01.alicdn.com/kf/Hee78ea1341ef4024abf36a76acfce98dc.jpg_640x640.jpg;	Shielding Gas:	100% CO2 / 80% Ar+20%CO2;
OEM:	Accept;	Melting Point:	200-300;
Model Number:	AWS ER70S-6;	Brand Name:	Bridge;
Application:	Carbon steel and low alloy steel;	Spool Size:	270mm/300mm;
Flux Content:	CO2 or M21;	Certificate:	ABS/BV/CCS/DNV.GL/LR/NK/KR/CWB;
Material:	carbon steel and low alloy steel;	Selling Units:	Single item;

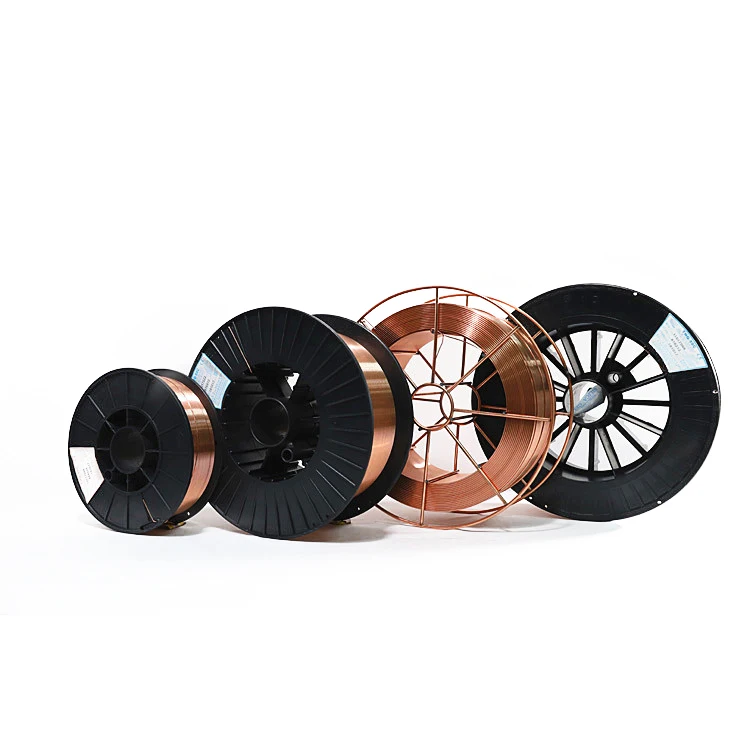

EU certification:	CPD-CE;	Package Type:	1kg/spool;5kg/spool;15kg/spool ;20kg/spool;250kg/drum; 350kg/drum 1080kg/pallet;
Package:	5kg/15kg/20kg spool 250kg drum;	Spool materials:	PS/Metal;
Weight:	5kg/15kg/20kg/250kg/350kg;	ISO model:	ISO14341-a-g42 3C1 Z3Si1;
Diameter:	0.8/0.9/1.0/1.2/1.6mm;	Single package size:	30X15X30 cm;

GMAW small spatter carbon steel and low alloy steel G3Si1 co2 gas shield er70s-6 solid mig copper welding wire

PRODUCT DISPLAY

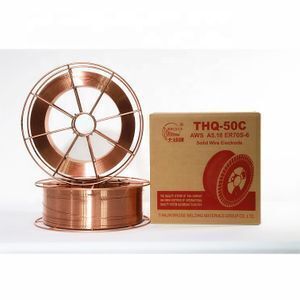

THQ-50C

GMAW Soild Wire

AWS A5.18 ER70S-6

ISO 14341-A-G42 3C1 Z3Si1

GB/T 8110 ER50-6

APPLICATIONS:

It is suitable for welding of low carbon steel and low alloy steel,such as Gr.50,and so on.

CHARACTERISTICS:

This GMAW wire is for Rm 500MPa level carbon steel with shield gas of CO₂ or M21. Small spatter, beautiful appearance, high deposition effciency and small weld metal porosity sensibility.All position is suitable.

ATTENTION:

1. The rust, oil, water and other impurities of the weld area must be removed before welding.

2. The mechanical properties of all weld metal be decided by heat input, normally the small heat input will better than larger one.

Chemical composition of the wire (mass fraction): %

Items	C	Mn	Si	S	P	Ni	Cr	Mo	V	Cu
Standard value	0.06-0.15	1.40-1.85	0.80-1.15	≤0.025	≤0.025	≤0.15	≤0.15	≤0.15	≤0.03	≤0.50
Case of value	0.08	1.50	0.89	0.012	0.013	0.03	0.02	0.002	0.003	0.11

X - Ray Detection: Grade II

Welding reference current : (DC +)

Welding wire diameter(mm)	0.8	1.0	1.2	1.6
Welding current(A)	50-180	70-230	80-350	120-500

Classification Society Certification:

Ship inspection agency

ABS

CCS

DNV

CWB

level of

recognition

3YSAH10

SA3YMHH

3YSH10

ⅢYMS(H10)

3YS

3YSH15

KSW53G(C)H10

3YSG(C)H10

B-G49A3CG6

EU certification:

Certification body	CPD-CE steel structure certification
Model	G42 3 C1 Z3Si1

PRODUCT APPLICATION

Some of our products have been applied to overseas key projects.

Electrode, SAW wire and flux of 600MPa Grade & 800MPa Grade

applied to hydro steel at Laos pumped storage power station

E6010 cellulose electrode Applied to the Ghana TEMA pipeline project in Africa successfully. It breaks the monopoly of Bohler cellulose electrode and won the bidding of oil pipeline Ghana tank project
