MY-380F/W HUALIAN Printing Machine

Product details
Brand Name:hualian;Voltage:110V/220V;
Type:Other;Gross Power:180w;
power(W):180;Weight:26kgs;
Type:Other;Plate Type:Letterpress;
Dimensions(L*W*H):440*65*300mm;Solid Ink Roller(mm):35*32 35*16;
Delivery Detail:20days;Condition:New;
Automatic Grade:Automatic;Supply Ability:1000 Set/Sets per Month;
External Dimensions(L*W*H)(mm)):440*345*300;Certification:CE,ISO9001;
Color & Page:Single Color;After-sales Service Provided:Overseas service center available;
Payment Terms:L/C,T/T,Western Union,MoneyGram;Usage:Card Printer;
Packaging Detail:carton packing;Printing Size(mm):Within 60-250;
Object Size(mm):L:50-550 W:30-300;Place of Origin:Zhejiang China;
Port:Shanghai or Ningbo;

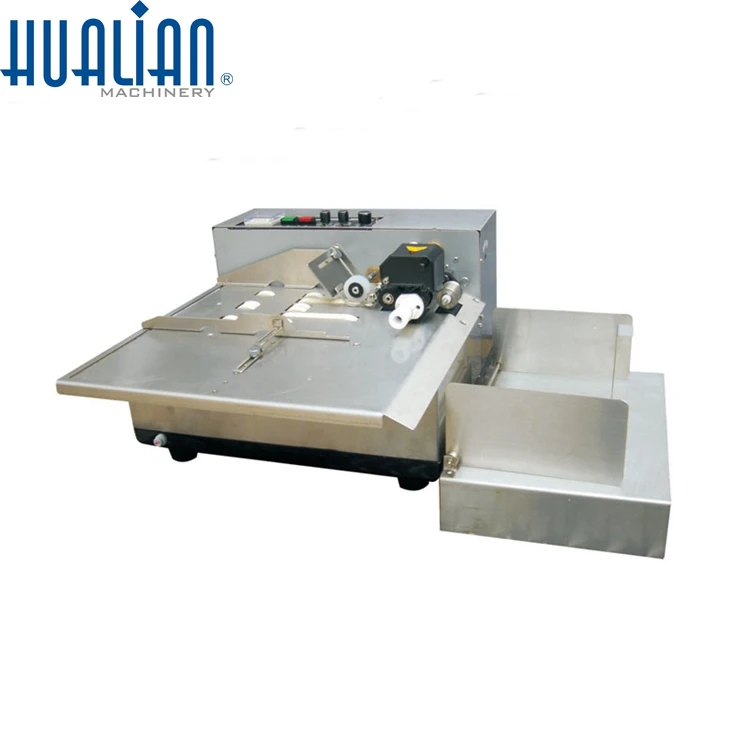

  HUALIAN Printing Machine(MY-380F/W)



Product Description



Description:.
MY-380F solid-ink coding machine fit for printing label on paper, thin cardboard, plastic film and aluminum foil. Adopt solid-ink coding, characterized by high definition, instant printing & instant dry, various colors selectable and strong adhesion.



Features:
1. Adopt photoelectric mechanism technology, automatic temperature control, auto counting, adjustable print position.

2. The printing roller equipped to the machine can be used for both R arrange and T arrange of types. For types in T arrange, the machine can print 1-10 lines with 1-10 characters in each line. For types in R arrange, the machine can print 1-8 lines with 1-8 characters in each line. Types in sizes of 2mm, 2.5mm, 3mm are available as option.
3. Work efficiently and automatically at high speed, up to 30pcs per minute.



Parameters:



MY-380F

MY-380F/W

Voltage(V/Hz)

AC 220/50  110/60

Power(W)

180

Solid Ink Roller(mm)

35×32   35×16

Printing Speed(pcs(/min)

≤300

Object Size(mm)

L:50-500 W:30-190

L:50-550 W:30-300

Max. Printing Line

T Arrange(10.5PT):11Lines (Max.10 characters/line)
R Arrange(10.5PT):8Lines(Max.8 characters/line)

Printing Size(mm)

Within 60-250

Type Size(mm)

2×1.5( 8PT )  2.5×2(9PT)  3×3(10.5PT)  4×2.5(18PT)

External Dimensions
(L×W×H)(mm)

440×345×300

440×465×300

Net Weight(Kg)

23

26
