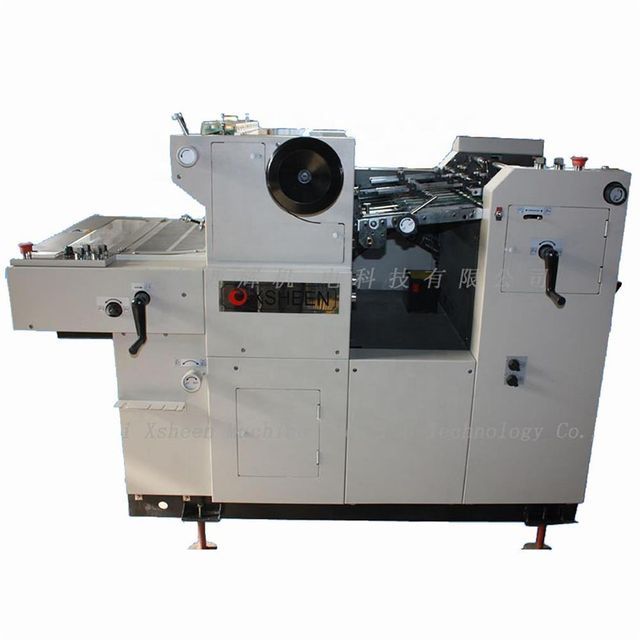

536 Automatic Paper Numbering Puncher

Click here to contact

Product details

Plate type:	Offset printing machine and numbering machine	maximum. Paper size:	560x400mm
Voltage:	220V	Applicable industries:	Manufacturing plant, Mechanical repair shop, Household, Retail, Print shop, Other, Advertising agency
Packaging Details:	The automatic sheet number punching machine is packed in a wooden case.	Health status:	new
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Core component warranty:	1 year
Warranty:	1 year	Paper weight:	28-250g
product name:	Paper Numbering Hole Puncher	Mechanical test report:	if
Showroom location:	U.S.	weight:	550 kg
Water pump motor power:	0.75KW	Video shipment inspection:	if
Printing speed:	2000-8000 sheets/hour	Core components:	engine
main motor power:	1.1KW	Total power:	1.85KW
Marketing Type:	New Products 2020	port:	Shanghai
usage:	Receipt printers, paper printers, numbering systems	After warranty service:	online support
Supply capacity:	210 automatic sheet number punchers per month	power supply:	220V 50HZ
Automatic level:	automatic	Main selling points:	long lasting
min paper size:	180x150mm	Colors and Pages:	Polychromatic
type:	other	Ink roller:	6 rollers (inking roller: 2 pcs)
Dimensions (LWH):	1780x1050x1100mm	brand:	XSHEEN
Origin:	China Shanghai

Paper automatic numbering punching machine

feature

1. Horizontal and longitudinal perforation can be carried out at the same time;

2. Resin plate printing, the number position is perfect, and the printing is clear;

3. The numbering speed can reach 8000 pieces per hour;

4. LCD computer control system is optional

5. Brand accessories: French components (Schneider) & Japanese bearings (NHK);

6. The oil-free vacuum pump adopts Japanese technology;

7. Positive limit protection is adopted to ensure safe operation;

8. Automatic powder spraying and blower system;

9. High-quality feed rubber wheel double sheet detection device;

10. Adopt chrome plating technology and stainless steel material to protect the drum

Technical data

Model	XHDM480	XHDM570	XHDM630
maximum. paper size	470x360mm	560x400mm	620x440mm
minute paper size	180x150mm
paper weight	28-250gsm
printing speed	2000-8000 sheets/hour
ink roller	6 rollers (inking roller: 2 pcs)
Number capacity:	Horizontal: 7 rows x 7 columns = 49 Vertical: 5 rows x 8 columns = 40	Horizontal: 7 rows x 8 columns = 56 Vertical: 5 rows x 10 columns = 50		Horizontal: 7 rows x 9 columns = 63 Vertical: 5 rows x 11 columns = 55
perforation	Minute horizontal perforating knife spacing: 10mm Min vertical perforating knife spacing: 30mm
main motor power	0.75KW	0.75KW		1.5KW
Water pump motor power	0.75KW
power supply	220V/50HZ
aspect	1780x935x1120mm	1900x1020x1120mm		2060x1150x1120mm
net weight	280 kg	320 kg		370 kg

Model	XHDM720
maximum. paper size	720x440mm
minute paper size	180x150mm
paper weight	28-250g
printing speed	2000-8000 sheets/hour
ink roller	6 rollers (inking roller: 2 pcs)
Number capacity:	Horizontal: 7 rows x 10 columns = 70 Vertical: 5 rows x 12 columns = 60
perforation	Minute horizontal perforating knife spacing: 30mm Minute vertical perforation knife spacing: 25mm
main motor power	1.5KW
Water pump motor power	1.5KW
power supply	220V 50HZ
aspect	2060x1170x1120mm
weight	800 kg
