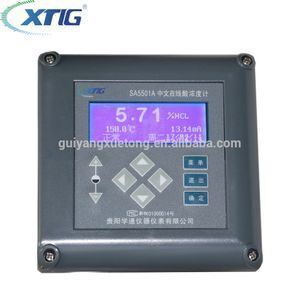

High precise acid concentration meter SA5501

Supplier: Guiyang Xuetong Instruments Co., Ltd.
Region: Guizhou, China
Contact: Ms. Sophie Tao
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	0.8Kg;	Accuracy:	±2.0%(commen point calibration errors can be less than 0.05%);±0.3℃;
Brand Name:	XUETONG;	Power lost save:	>10 years;
Packaging Detail:	high accuracy acid concentration meter standard packing.;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Protective level:	IP65;	Supply Ability:	100 Set/Sets per Week high accuracy acid concentration meter;
Alarm relay:	AC220,aaa,alarm signal isolating output;	Brand:	XUETONG;
NAME:	acid concentration meter;	Place of Origin:	Guizhou China;
Power supply:	AC 220V 10%;	Resolution:	0.01%;0.1℃;
Measure range:	0~10.00%HCL;	Delivery Detail:	5 working days after the payment received;
Model Number:	SA5501;	Port:	yantian;

Product Description

SA5501 series is my company a new generation of all microcomputer type, with all high-grade instrument display, menu type operation, all the intelligence, multi-function, measurement, high performance environment adaptable etc. Characteristics. Can be widely used in thermal power, chemical industry, suitable for inspection ion exchange legal take highly purified water technology, or the regenerative liquid concentration to preparation boiler, pipe acid liquid acid concentration of fluid, continuous monitoring.

Measuring scope Range automatically converts	SA5501A： 0～10.00%HCL SA5501B： 0～10.00%NaOH SA5501C:（0～30）%H2SO4、（35～80）%H2SO4、（92～99.9）%H2SO4 SA5501D: 0～20.00%NaCL SA5501E: 0～15.00%HNO3 SA5501F: 0～10.00%Na2CO3 0～99.9℃
Resolution Accuracy Current isolation output	0.01%, 0.1 ℃ + 2.0% (common point calibration errors can be less than 0.05%) after ℃ and + 0.3 4 ~ 20 mA (load < 750 Ω)
Communication interface Protective level	isolation RS485 (optional) IP65
Working conditions size The size of holes weight	environmental temperature 0 ~ 60 ℃, relative humidity 90 acuities ℅ 146 x 146 x 108 mm 138x138mm 0.8 kg
Second table installation	opening type/wall hung/frame mounting type/pipeline
Electrode installation	circulation type/sink into type/flange/pipeline
Electrode matching	Induction type concentration electrode
Standard configuration	SA5501X second table one, SA - 30 concentration meter electrode one

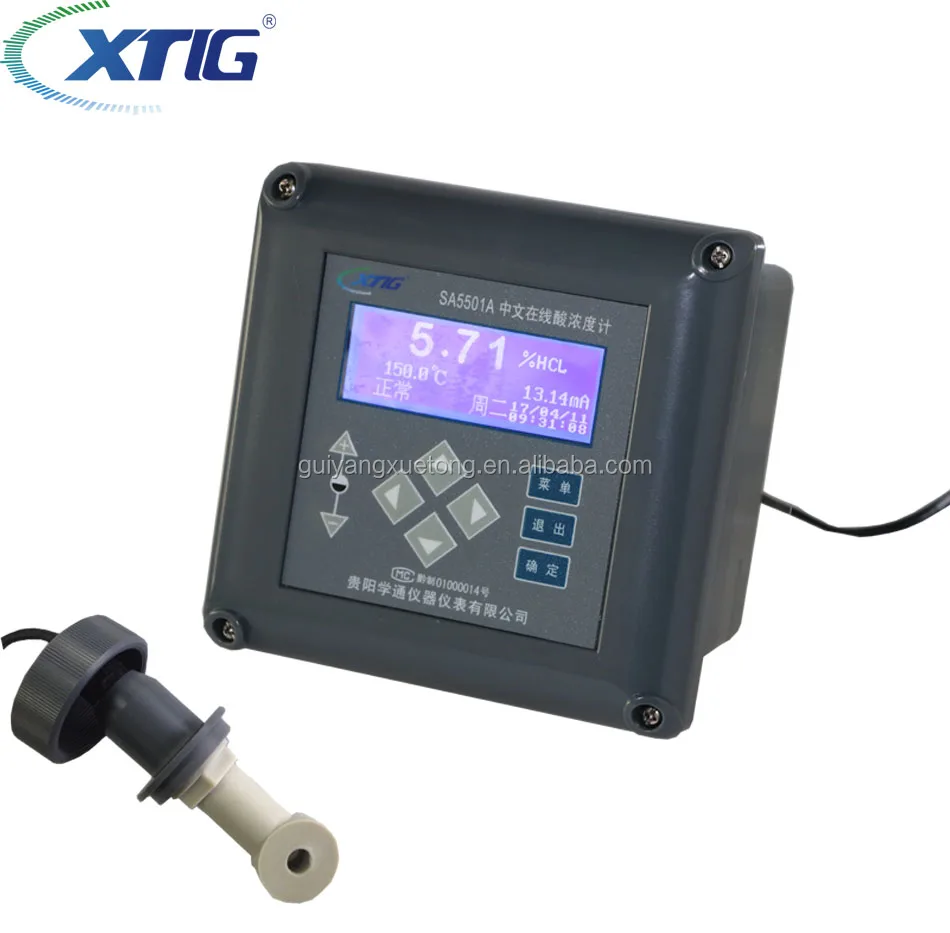

Products Show

Main features

High quality

Chinese LCD display, Chinese menu type, Chinese history.

Microcomputer: using high-performance the CPU chip, high-precision AD transform technology and SMT placement technology, perform multiple parameters measurement, temperature compensation, range automatically converts, instrument self-check and high precision, and repeatability.

High reliability: veneer structure, touch buttons, no switch knob and potentiometer.

Automatically converts measure frequency: avoid electrode polarization, improve measurement accuracy.

High quality

The electromagnetic compatibility (EMC/RFI) design: by European standards 50082 EN50081 / design and manufacture.

Alarm functions: alarm signal isolating output, alarm upper and lower limit can be arbitrary set, alarm lag withdrawn.
Two kinds of calibration means: can choose 2.00%, 4.00%, 6.00%, automatic calibration and 26.7% manual input electrode coefficient.

Network function: the isolation of current output and RS485 communication interface; The output of the current corresponding density upper and lower limit can be arbitrary setting.

Historical curve: continuous record of a month data, five minutes a point.

High quality

Notepad function: record 200 information.

Manual current source: convenient records and detection device testing.

Built-in real time clock: provide various function of time benchmark, etc.

Industrial control type watchdog: ensure instrument won't crash.
Password management: parameter setting and maintain all have password protection.

Waterproof dustproof design: protection class IP65, suitable for outdoor use.

Phase-sensitive detection design: the elimination of the influence of wire measured.

Our Company

Factory

Our Factory

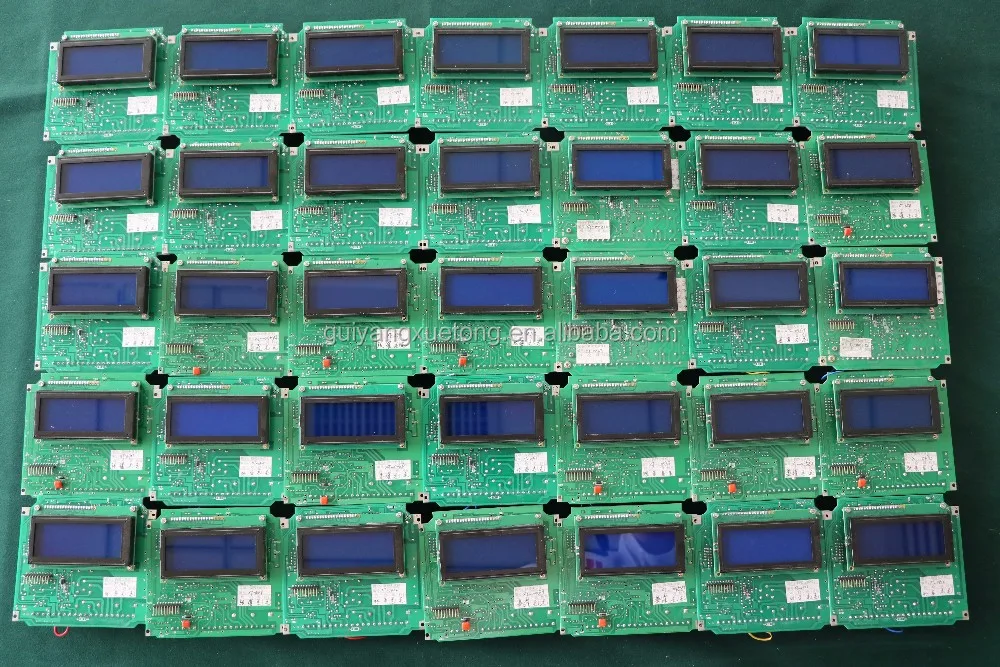

Workshop

Our Workshop

Warehouse

Our Warehouse

Team

Our Team

Packing & Delivery

Packing Details : Packing, 1pcs/carton

Delivery Details : 3-30 days after payment

1. Special logistics packaging

2. Suitable carton size

3. Shock bubble film

Our Certifications

Purchasing guidelines:
1, the length of the cables and electrode, according to match that was.
2, electrode and second instrument installation way.
