40W 50W 60W Double Color laser engraving machine price

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal;Graphic Format Supported:AI,BMP,DST,DWG,DXF,DXP,LAS,PLT;
Laser Type:CO2;Power Supply:220V/50HZ;
Repeated Positioning Accuracy:±0.01mm;Engraving Area:600*400mm;
Warranty:1 Year;Servo Motor Brand:MITSUBISHI;
After-sales Service Provided:Field maintenance and repair service;Laser Head Brand:Raytools;
Key Selling Points:High-accuracy;Laser tube:CO2 Laser Tube;
Brand Name:BIAOKE;Cooling Mode:Water Cooling;
Condition:New;Certification:CCC,CE,GS,ISO,SGS,FDA;
Cutting Thickness:0-20mm;Packaging Detail:1. Inner package:plastic transparent film and white foam 2. Middle package:small pieces of wood and screws 3. Outside package:standard export wooden case 4. Customize according to your need.;
Keywords:CO2 Laser engraving machine;Control System Brand:Cypcut;
Guiderail Brand:THK;Port:Shanghai or Ningbo;
Optical Lens Brand:Wavelength;Compatible Software:CorelDraw, AutoCAD, Photoshop, Laser CAD, etc;
Applicable Material:Acrylic,Crytal,Glass,Leather,MDF,Metal,Paper,plastic,Plexiglax,Plywood,Rubber,Stone;After-sales Service Provided:Engineers available to service machinery overseas;
CNC or Not:Yes;Laser power:40W/60W/80W/100W/130W/150W;
Application:Laser Engraving;Dimension(L*W*H):1020*700*600mm;
Supply Ability:300 Set/Sets per Month Co2 laser engraving machine;Software:RD Vision;
Engraving Speed:0-60000mm/min;Laser Source Brand:Coherent;
Place of Origin:Zhejiang China;

40W 50W 60W Double Color laser engraving machine price

Product specifications

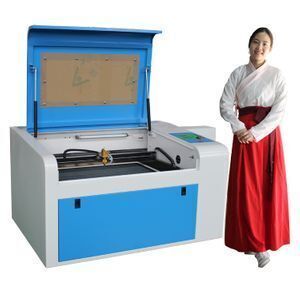

ProductJK4060 Laser Engraving Cutting Machine
Laser TypeCO2 Laser Tub
Laser Power40W 50W 60W 80W 100W 150W
Working Area (L*W)400*600mm
Engraving Speed0-75000mm/min
Engraving Thickness0-20mm
Cutting Speed0-60000mm/min
Cutting Thickness0-20mm
Repeated Positioning Accuracy±0.01mm
Working VoltageAC 110-220V ± 10%, 50-60HZ
Working Temperature0-45°C
Working Humidity 5-95%
Minimum Character1mm
Guideway Linear Guideway
Positioning ModeRed Light
Compatible Software CorelDraw, AutoCAD, Photoshop, Laser CAD, etc
Graphic Format Supported AI, BMP, DST, DWG, DXF, DXP, LAS, PLT, etc
Applicable MaterialAcrylic, Crytal, Glass, Leather, MDF, Paper,
Plastic, Plexiglas, Plywood, Rubber, Wood, etc
Cooling ModeWater Cooling
InterfaceUSB 2.0
Size (L*W*H)1400*835*620mm
Weight120KG
Optional DeviceWater-cooling Machine, 360° Simple Rolling Machine, Chuck Rolling Machine, Chuck Non-standard Rolling machine

Applicable Material:
Glass, organic glass , leather, cloth, acrylic,wood ,MDF,PVC,Plywood,stainless steel,Maple leaf,
Double-color sheet, bamboo,Plexiglas, paper, leather, marble, ceramics , etc.

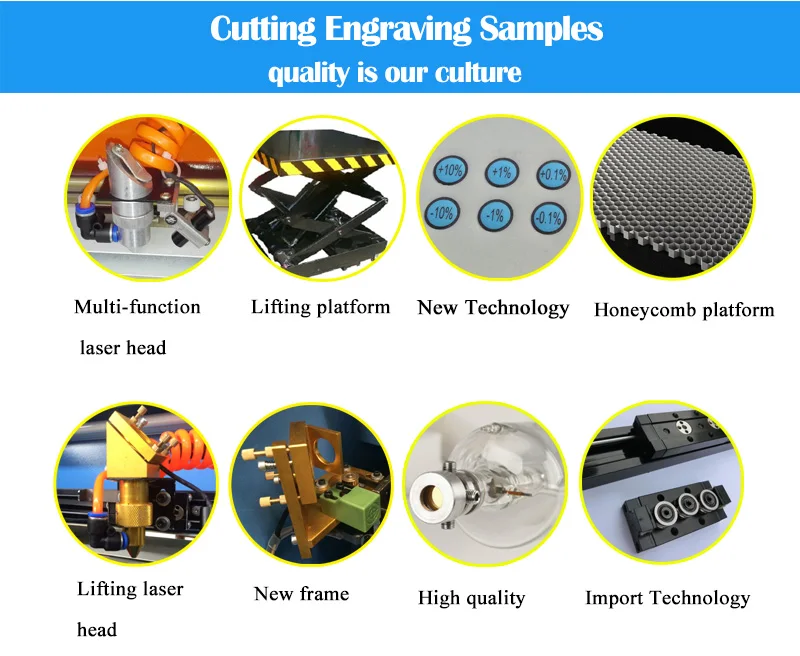

Main Features
1) High-effciency Laser Tube ,easy in cutting and engraving.
2) Precise Linear Guideway,high-speed and precise,strong load capacity and rigidity.
3) Professional Control System,high-speed engraving and cutting.
4) 3 Phase Stypper Motor, more precise control.

More Prpduct

More Product

FAQ

 1) This is the first time I use this kind of machine, is it easy operate?

There are english manual or guide video that show how to use machine.
If there is still have any question, we can talk from phone or skype.


2) If machine have any problem after I ordered it, how could I do?


Free parts send to you in machine warranty period if machine have any problem.
Free after-sales service life for machine, please feel free contact us if your machine have any problem. we will give you 24 hours service from phone and skype.


3) MOQ ?
Our MOQ is 1 set machine. We could send machine to your country port directly, please tell us your port name. There will be best shipping freight and machine price send to you.
