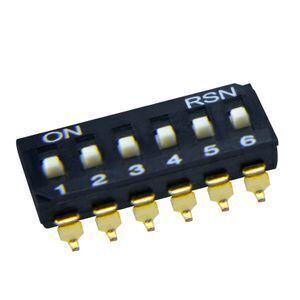

HONGJU SMD 6 Position DIP Switch With 2~12 Position Switch

Product details
Payment Terms:T/T,Western Union,MoneyGram;Place of Origin:Guangdong China;
Operating force:600gf max;Dielectric Strength:500VAC/1min;
Brand Name:HONGJU;Product Name:HONGJU SMD 6 Position DIP Switch With 2~12 Position Switch;
Circuit:SPST;Model Number:RM-04;
Max. Current:25mA;Port:SHENZHEN,SHANGHAI,NINGBO;
Operating Temperature:-25℃ to 70℃;Supply Ability:100000 Piece/Pieces per Day;
Contact Resistance:50mΩ Max.at Intial;Positions:6 position(2,3,4,5,7,8,9,10,11,12 position);
Packaging Detail:CARTON PACKING;Storage temp:-40℃ to 85℃;
Max. Voltage:24V DC;MOQ:100 pcs;
Insulation Resistance:100mΩ Min.at 500V DC;

Product Description for HONGJU SMD 6 Position DIP Switch With 2~12 Position Switch



♦ Specification

 Product Name HONGJU SMD 6 Position DIP Switch With 2~12 Position Switch
 Brand HONGJU
 Max. Current 25mA
 Max. Voltage 24V DC
 Contact Resistance 50mΩ Max.at Intial
 Insulation Resistance 100mΩ Min.at 500V DC
 Dielectric Strength 500VAC/1min
 Circuit SPST
 Operating temp 25℃ to 70℃
 Operation force 600gf Max



♦ Application

Product are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, mechanical Instrument, Medical equipment, etc.



♦ Related Products Display



About HongJu



♦ Over 20 Years of Experience

Established in 1998, Shenzhen Hongju Electronics is a professional manufacturer of various types of electronic switches like rockers switches, torches switches, pushbutton switches, fuse holders, power sockets, mold making, injection molding, metal stamping and other electronic accessories.



♦ Carrying UL, CUL, VDE, CE, CSA, CQC and KTL Marks

All our products are compliant with UL, CUL, VDE, CE, CSA, CQC and KTL standards. They are manufactured under ISO 9001 and ISO 14001 standards, and we control the raw materials strictly, all meeting RoHS and REACH regulations.



♦ Daily Capacity Reaching 100,000 to 119,999 Pieces

In our R&D department, we have our own product design, mold making, injection molding, metal stamping workshops and a laboratory. With established CNC machining centers, we have adopted more than 10 automatic and semi-automatic production lines, and production equipment. Within our 8,000-square-meter plant, supported by more than 500 workers, we can produce 100,000 to 119,999 pieces daily, which will be 100% inspected before shipment.



♦ Place Your OEM/ODM Order Today

With years of experience and enthusiastic service to customers, we have become the most reliable in service, quality and competitive price. For a wide range of quality components, we offer all-in-one services, and also welcome OEM and ODM projects.



♦ UL Accredited laboratory, Powerful Testing Equipment, Strict Product Control System

UL Accredited laboratory, Powerful Testing Equipment, and Strict Product Control System can make us easily to control the products quality and make high quality products. HONGJU always try our best to supply high quality products for all of our customer.



♦ Packing and Shipping for



♦ Others

-Thanks for you browsing our products, If you are interested in products, Please feel free to contact us, we will reply to you at the first time after receiving;

-We are sincerely looking forward to establish cooperative relationship with you based on preferential prices, quality products and sincere attitude.

-Looking forward to your enquiry, Thanks!
