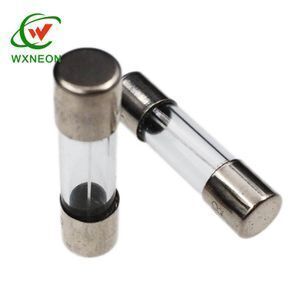

5 x20mm Automotive electronic glass tube fuse

Supplier: Wuxi Neon Electrical Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr wxneon zhao
Price: $0.022 / >=1000 pieces
Min. Order: 1000 pieces

Click here to contact

Product details

Brand Name:	wuxineon;	Packaging Detail:	Normal package, or packed as your requirement;
Place of Origin:	Jiangsu China;	payment term:	30% tt as deposit;
Usage:	Plug;	Breaking Capacity:	High;
package:	carton;	keywords:	tube fuse;
Material:	glass tube;	Product Name:	5 x20mm Automotive electronic glass tube fuse;
Safety Standards:	standard;	Usage:	Festival Day;
Application:	plug;	Model Number:	TF-C2;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,paypal or Trade Assurance;	Port:	shanghai;
Supply Ability:	500000 Piece/Pieces per Month;	Color:	glass clear;
Size:	5X20mm;	OEM:	Available;

Product Description

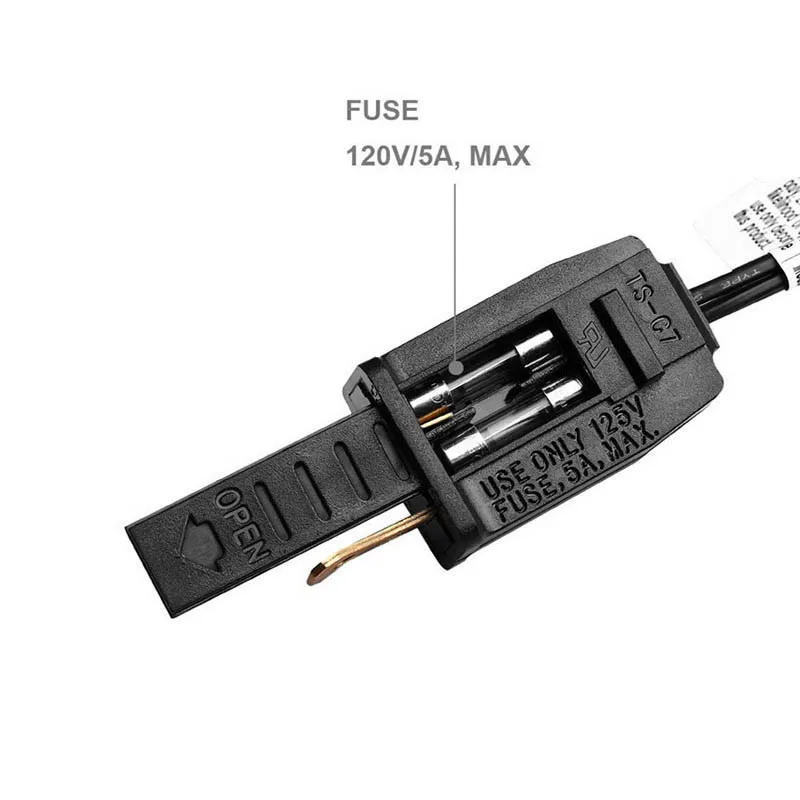

Automotive electronic glass fuse 5 x20 for string light plug

Perfect replacement for your C9 or C7 Christmas lights
5 Amp 125 Volt Fast Blow Glass Cartridge
5MM x 20MM
10 replacement fuses!
Bulk pack - small plastic bag

Specifications	Materials	Atmospheric conditions	Time/current characteristics
1) Dimensions: 5 x 20mm 2) Rated voltage: 125V AC 3) Rated current: 0.2~ 20A 4) Materials:glass tube a) Ferrule cap: brass cap, nickel plated b) Body glass tube c) Fuse element: copper-silver alloy	1) Fuse body: glass tube 2) 2 end caps: made of brass, good electrical conductivity 3) Coating of brass caps: the end cap surface nomally is plated with nickel, it is also available with tin or silver plating, or as per customers' requirements 4) Strength of fuse assembly: the min. axial pulling force between brass caps and glass tube is SN (0.5kgf)	1) Temperature: 15 ~ 35oC 2) Relative humidity: 15 ~ 35oC 3) Air pressure: 8.6 x 10 ~ 1.06 x 10Pa	1) Fuse overload testing (time/current characteristic) shall be under normal ambient temperature 2) Time/current characteristic shall be within the limits specified in the below figure 3) Current passes through the fuse, link shall be adjusted to within ±1% of the required value 4) Voltage of the source shall not exceed the rated voltage of fuse-link under test 5) The accuracy of measurement of time shall be within a tolerance of ±5% for time of less than 10s and ±2% for time of 10s above

Detailed Image

Packing & Delivery

Package:

1 Drop-proof packaging inside and hard carton box outside
2 Waterproof packaging
3 Or packed as your requirement

Delivery
1.Goods will be delivered within 10-20 working days after getting the payment
2.Shipped via EMS, DHL, Fedex, UPS, Door to Door service express or air and sea

Should any of these items be of interest to you, please feel free to let us know.

We will be happy to give you more details.

FAQ

Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q3. Are you a factory or foreign trade company?
A:We have our own factory. And Wuxi Neon Electrical Equipment Co., Ltd. is one of the best decoration lighting enterprises. We integrate the R&D, manufacture, sales and engineering as a whole

Q4. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order more.

Q5: Do you offer guarantee for the products?
A: Yes, we offer guarantee for our products.
