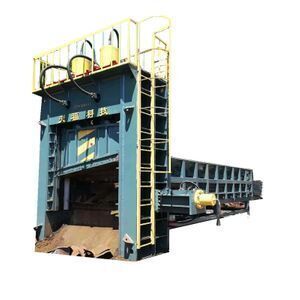

Q91Y Heavy metal scrap gantry shear cutting machine (CE)

Supplier: Jiangyin Tianfu Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Landry zhou
Price: $125000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Operation:	PLC or remote control;	Shearing force:	5000KN/500T;
Warranty:	1 Year;	Selling Units:	Single item;
Single gross weight:	45,000 KG;	Key Selling Points:	High Productivity;
Power (kW):	148;	Application:	waste car,metal scrap,shavings,HMS;
Weight (KG):	45000;	Condition:	New;
Feed box size:	60001600700mm;	Single package size:	700X220X300 cm;
Place of Origin:	Jiangsu China;	Package Preview:	https://sc01.alicdn.com/kf/HTB1KdrrNgHqK1RjSZFEq6AGMXXak.jpg_640x640.jpg;
After-sales Service Provided:	Online support,Field maintenance and repair service,No after-sales service,Video technical support;	Knife length:	1600mm;
Package Type:	scrap metal cutting machine packing: nude packing,shipped by containers;	Applicable Industries:	Metal recycling;
Capacity:	5-8 tons/hour;	Cooling system:	water cooler;
Material / Metal Processed:	Brass / Copper,ALLOY,Carbon Steel,Aluminum,Stainless Steel;	Machine Type:	Gantry Shears;
Shearing speed:	2.5-3times/min;	Lifetime:	More than 10 years;
Max. Cutting Force (Ton):	500;	Brand Name:	TFKJ scrap metal cutting machine;

Q91Y-5000 Heavy metal scrap gantry shear cutting machine CE

1.Applications:

YDJ series gantry shear cutting machine is applicable in steel plants,recycling companies,ferrous & non-ferrous smelting industry to press heavy metal scraps(steel,copper,aluminum, stainless steel,discarded cars), then cut the bale after baled into pieces.

2.Features:

1)Hydraulic drive,PLC control.

2)High efficiency and low labor cost.

3)Big enough pressing room to feed large size scrap.

4)Customized feedbox size and blade length.

5)We are factory with strict quality control team.

3.Technical parameters:

Nominal shearing force (KN)	5000
Feed box size(LWH) (mm)	60001800700
Shearing speed	2.5-3times/min
Blade length of shearer (mm)	1600mm
Capacity	5.8 Tons/hr
Quality standard	ISO;CE;SGS
Power (KW)	148KW
Operation Way	PLC control
