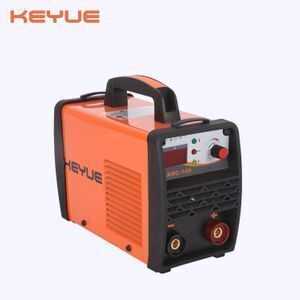

IGBT inverter submerged arc mini portable electric welding machine small size
- 46.50 set
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Warranty: | 1 Year; | Payment Terms: | L/C,T/T,Western Union; |
| After-sales Service Provided: | Free spare parts; | Motor Type: | DC MOTOR; |
| Supply Ability: | 10000 Set/Sets per Month; | Packaging Detail: | Package: 1pc /carton Gross weight: 4.7KGS Measurement: 350*235*265mm; |
| Place of Origin: | Zhejiang China; | Type: | IGBT chip; |
| Pulse Frequency: | 50/60; | Arc Current: | 140A; |
| Applicable Industries: | Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Home Use,Retail,Construction works ; | Usage: | MMA welding machine; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Port: | Shanghai,Ningbo,Guagnzhou,Shenzhen; |
| Voltage: | 220V; | Condition: | New; |
| Power(W): | 5000; | Brand Name: | KEYUE; |
| Certification: | CCC,CE,ROHS; | Dimensions: | 330*130*240mm; |
| Rated Duty Cycle: | 70%; |
Product description
Product feature
- IGBT DC Inverter Home-used machine
- Electrode: 1.6mm-3.2mm acid or basic type
- Function: Anti-stick, hot start, arc force, EMC and VRD
- Material: carbon steel and stainless steel
- Portable: 3.3KGS only
| Model | ARC-140 |
| Input voltage(V) | 1PH AC220V±15% |
| Input power(KVA) | 5.0 |
| Input current (A) | 23 |
| Rated output | 25.6V/140A |
| Output current(A) | 20-140 |
| No-load voltage (V) | 65±5 |
| Duty Cycle% (40℃ 10min) | 140A 40% |
| 89A 100% | |
| Efficiency (%) | 70 |
| Protection grade | IP21 |
| Insulation grade | F |
| Net weight (KG) | 3.3 |
| Gross weight (KG) | 4.7 |
| Dimension of machine (mm) | 330*130*240 |
| Dimension of package (mm) | 350*235*265 |
Performance
+
Material | Sheet thickness (mm) | Stick diameter (mm) | Current range(A) | Model |
Carbon steel Stainless steel Low alloy steel
| 1.5-5 | 2.2.5/3.25/3.2 | 20-140 | ARC-140 |
1.5-10 | 2.5/3.2/4.0 | 20-160 | ARC-160 | |
1.5-10 | 2.5/3.2/4.0 | 20-200 | ARC-200 | |
1.5-15 | 2.5/3.2/4.0/5.0 | 20-250 | ARC-250 | |
2-20 | 2.5/3.2/4.0/5.0 | 20-400 | ARC-400 | |
≥16.0 | 5.0/6.0/8.0 | 20-600 | ARC-630 |
