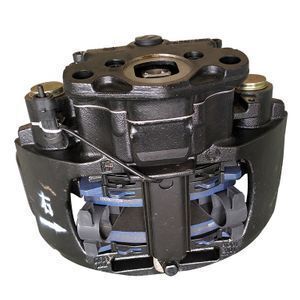

Yutong Brake(including brake caliper and brake pad)

Click here to contact

Product details

Size:	16/17.5/19.5/20/22.5"(inches);	Payment Terms:	L/C,T/T;
Port:	SHANGHAI, NINGBO, or according to customer requirements;	Brand Name:	HANGWAN/Customized;
Material:	iron;	Warranty:	1 Year;

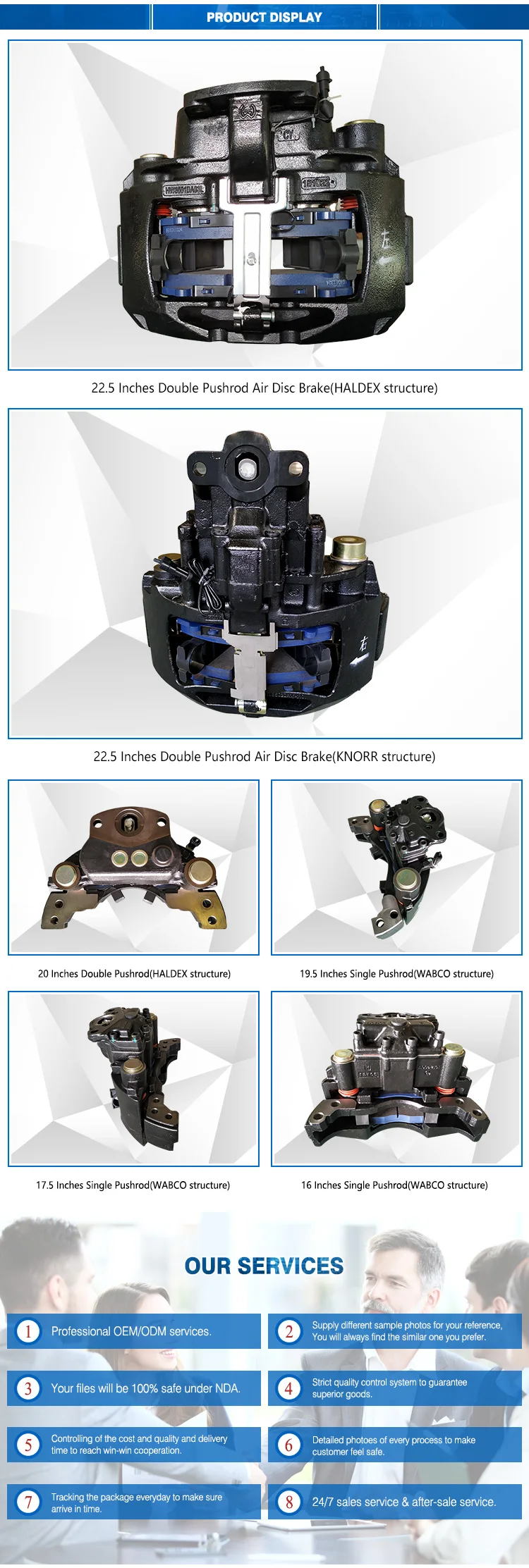

Place of Origin:	Zhejiang China (Mainland);	Packaging Detail:	Generally, carton packing, one set per carton.(or according to customer requirements) About the product: We often produce 16/17.5/19.5/20/22.5 inches Air Disc Brakes. The product structure includes WABCO, HALDEX and KNORR. We can also customize other sizes(inches) of Air Disc Brake for you, as well as its mounting dimension, trademark (requiring authorization), packaging, etc.;
Certificates:	TS16949;	OEM No.:	customized;
Supply Ability:	100000 Set/Sets per Year;

1	Brake caliper	9	Adjusting device	17	Inner six angle bolt	25	Pressplate
2	Dust cover	10	Short guide sleeve	18	Inner six angle bolt	26	Alarm line positioning unit
3	Long liner bushing	11	Short liner bushing	19	Brake lining	27	Crosshead screw
4	Long guide sleeve	12	Adjusting hexagon head bolt	20	Brake support bracket	28	Flat gasket
5	Cap	13	Hexagon head dust cover	21	Brake lining pressure spring	29	Alarm line
6	Inner six angle bolt	14	Hexagon headed bolt	22	Spacer blocks	30	Flexible gasket
7	Gland	15	Alarm line support	23	Lock pin
8	Plug cover	16	Positioning block	24	Pin shaft

---- Best regards and Sincerely welcome you to contact us! ----
