abrasives knife sharpening stones grinding wheel Products from Jiangxi Star Grinding Wheel Co., Ltd.

Product Details

Size:	75mm40mm20mm;	Model Number:	Straight Cup Grinding Wheel;
Color:	Pink, black, white, taupe, gray-white, orange-red, green;	Hardness:	Standard;
Port:	Ningbo/Shanghai or other Chinese port;	Material:	A,WA,C,GC,brown fused alumina,white fused alumina,etc;
Hardness:	D/E/G, G/H/L, K/L, M/N ,P/Q/R, S/T ,Y;	Group number:	5 or 6;
Application:	Grinding knife, drill and saw blade;	Combining with the agent:	Ceramic binding agent or resin binding agent;
Viscosity:	Great;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Accept other terms of payment;
Supply Ability:	50000 Piece/Pieces per Month;	Abrasive:	Corundum;
Shape:	Cup-Shaped;	size:	754020mm,1005020,1256332,1508032,200100100,etc;
Brand Name:	Star;	Max. speed:	30m/s;
Packaging Detail:	Each grinding disc is contained inside an internal cardboard box, some internal boxes are in an export standard carton, and then straps are reinforced.or upon your request;	Bonding Agent:	Ceramic;
Shape:	Cup;	Grit:	36#---240#;
Place of Origin:	Jiangxi China;

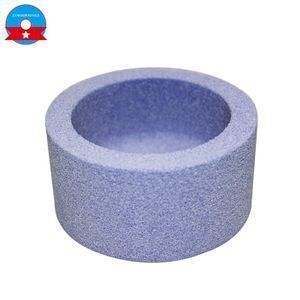

abrasives knife sharpening stones grinding wheel

Product Parameter

Shape: Cup
Material: A, WA, C, GC, brown fused alumina, white fused alumina,green silicon carbide, black carbon
Hardness: D/E/G, G/H/L, K/L, M/N ,P/Q/R, S/T ,Y
Grit: 36#-240#
Group number: 5 or 6
Combining with the agent: Ceramic binding agent or resin binding agent
Max. speed: 30m/s
Application: Grinding knife, drill and saw blade
Size: 75mm*40mm*20mm, 100mm*50mm*20mm, 125mm*63mm*32mm, 150mm*80mm*32mm, 200mm*100mm*100mm, 200mm*100mm*32mm, 250mm*100mm*150mm
Color: Pink, black, white, taupe, gray-white, orange-red, green

D(mm)	T(mm)	H(mm)	W(mm)	E(mm)	R(m(mm)m)
3-900	3-200	3-500	1	1	R<6

D	T	H	W	E	R
40	25	13	4	5	3
50	32	13	5	7
60	32	20		7
75	40			8
100	50		7.5	10	4
125	63	32,65	7.5,12.5	13	4
150		65	25	25	5
		65	12.5	13
	80	32	12.5	15
200	63	32,75	15	18
200	100	32,75,100	25	25
250	100	150	25	25
