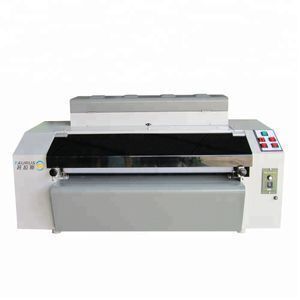

Taurus 24inches desktop UV coating machine uv coater lamination machine

Product details
coating thickness:0.2-2mm;Packaging Detail:Export Wooden Case;
Weight:116kg/129kg;Warranty:2 Years;
Place of Origin:Shandong China;After-sales Service Provided:Engineers available to service machinery overseas;
Condition:New;Port:China Port;
After-sales Service Provided:Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;Type:Paper coating machine;
Max.coating width:650mm;coating speed:15m/min;
Automatic Grade:Semi-Automatic;Certification:ISO9001;
Payment Terms:L/C,T/T,Western Union,MoneyGram,Skrill,Paypal;Dimension(L*W*H):1040*650*500mm;
Brand Name:TAURUS;Voltage:220V/50Hz;
Supply Ability:10 Set/Sets per Year;



1,Exquisite appearance design:
Delicate design with small occupation which can save shippping cost. Easy handling, changing the complicated operation and bulky machine features.
2,Humanized design:
A, The outlet is made of aluminium alloy(rust-proof) with the automatically recycle system,reducing the UV liquid consumption and add UV liquid frequently .
B, The scraping board is made of unique material,more convenient for clients . No need to clean everyday, and no hurt the photos

C, The machine adopts the worm wheel design, to ensure all the rollers can move at the same time and have evenly coating thickness .
D, The interal design of coating machine , ultraviolet lighting is sealed and shielded and heat evenly, so that the UV liquid can be solidified in a short time
3,Low cost with high efficiency : Precision roller'design, coating evenly, the coating cost is RMB 0.35-0.50/square meter.
4,Range of Application :

Special material of double screw design, uv light is shielded competely and the photos are drying quickly and fast

applicable:



Applicable for coating with many papers, such as laser printing, inkjet photo, coated paper, adhesive paper
ect.After coating the papers can be water-proof, moisture-proof, anti-aging, anti- ultraviolet,and no hurt for the papers,repeated coating is accpepted . The UV liquid is attached to the picture'surface directly , after ultraviolet irradiation it will be solidified , not easy to drop , also can under the high temperature. Glossy and matt liquid are accepted ,the glossy liquid is shiny , brightly . The matt liquid is elegant ,mysterious appearance .
Now it has been widely used in magazine , photo printing, portrait painting, canves , book cover, pictures, calendars, cards, product samples, packages and cartons etc.



Model


Coating Width


Coating Thickness


Coating Speed


Voltage


Power


N.W/G.W


Dimension


TR-UVC12

320mm

0.2~2mm

15m/min

AC220V/50HZ

2.2KW

74kg/89kg

740*650*520mm


TR-UVC14

380mm

0.2~2mm

15m/min

AC220V/50HZ

2.2KW

78kg/95kg

790*650*490mm


TR-UVC18

480mm

0.2~2mm

15m/min

AC220V/50HZ

2.3KW

91kg/108kg

790*680*490mm


TR-UVC24

650mm

0.2~2mm

15m/min

AC220V/50HZ

4.4KW

116kg/129kg

1040*650*500mm


TR-UVC24A

650mm

0.2~2mm

15m/min

AC220V/50HZ

4.4KW

139kg/159kg

1040*650*1080mm


TR-UVC36

930mm

0.2~2mm

15m/min

AC380V/50HZ

7.5KW

173kg/192kg

1380*780*1080mm


TR-UVC50

1300mm

0.2~2mm

15m/min

AC380V/50HZ

6.9KW

400kg/450kg

1720*1120*1110mm


TR-UVC63

1600mm

0.2~2mm

15m/min

AC380V/50HZ

8.3KW

490kg/560kg

2.25*2.30*1.60 m
1.40*2.10*1.40m

1.How can I get sample to check your quality?

We have free sample available for all dear customers,you just have to pay the cost of freight or air courier.If you place order to us,we can deduct the cost from the total order amount.



2.If there is any problem on machine,how can I solve it?

First of all,we have online service,after submitting and problem we will come up with solution,if you can solve it yourself we will give you procedure step by step teach you solve it,by msg,pic,voice,or video talk.Normally we are good at video talk,and it is most successful method.If any electronic parts in problem which is occured itself(not improper operation),within one year warranty we will send new parts for replacement.You just cover the cost of frieght or air lift.



3.What's the lead time and lead term?

Leading time is 7 days after receipt of all payment.
