four heads woodworking usage hinge boring machine

Supplier: Qingdao Fucheng Yijia Machine Co., Ltd.
Region: Shandong, China
Contact: Mr Guy Wang
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

max working depth:	60mm;	Payment Terms:	L/C,Western Union,MoneyGram;
Place of Origin:	Shandong China (Mainland);	CNC or Not:	Normal;
Condition:	New;	max drill diameter:	35mm;
Brand Name:	FCYJ;	Spindle Speed:	2840r/min;
Motor Type:	Standard Motor;	Packaging Detail:	plywood packing;
Supply Ability:	100 Set/Sets per Month;	air pressure:	0.6-0.8mpa;
After-sales Service Provided:	Engineers available to service machinery overseas;	Weight:	600kgs;
Dimension(LWH):	28008501200mm;	type:	four heads;
Certification:	CE ISO;	Voltage:	380V/50HZ;
spindle speed:	2840r.p.m;	Port:	Qingdao;
Warranty:	12 Months;	Power(W):	1.5kw*4;
motor:	1.5kw*4;

Product Description

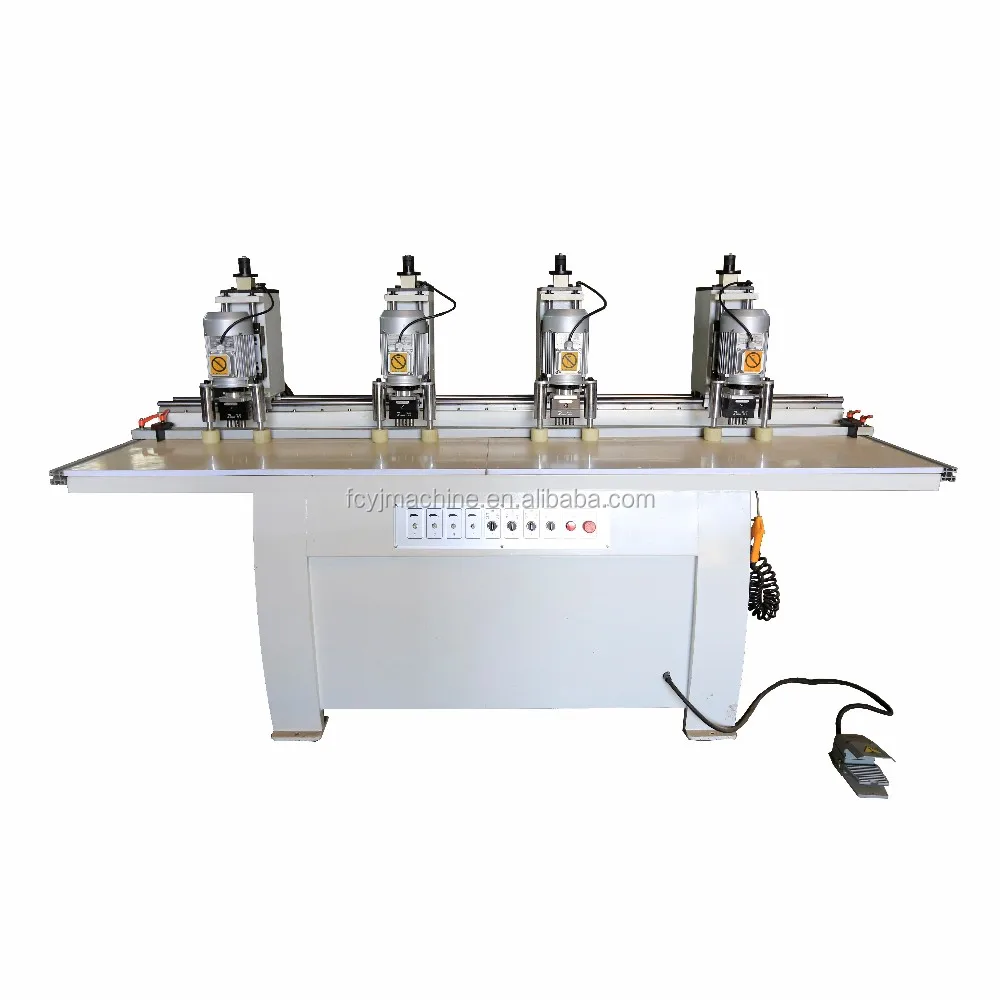

Four heads woodworking usage hinge hole boring machine

Product Application

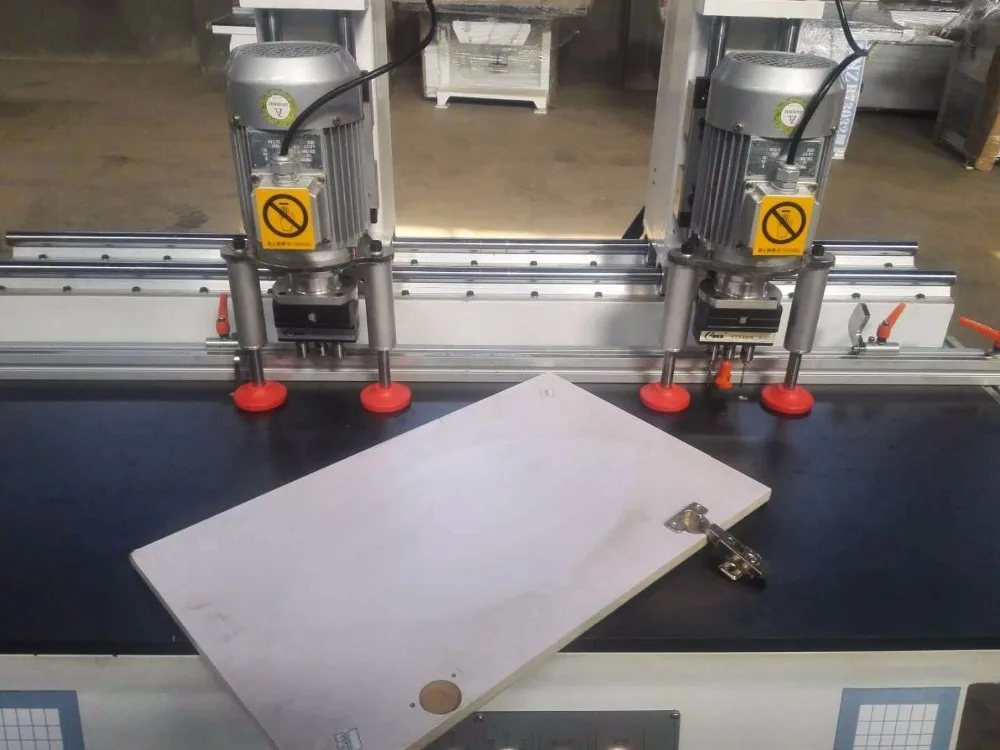

MZ73034 vertical double row hinge boring machine is widely used in panel type of furniture production. It is mainly used to drill hinge holes on panel type furniture.

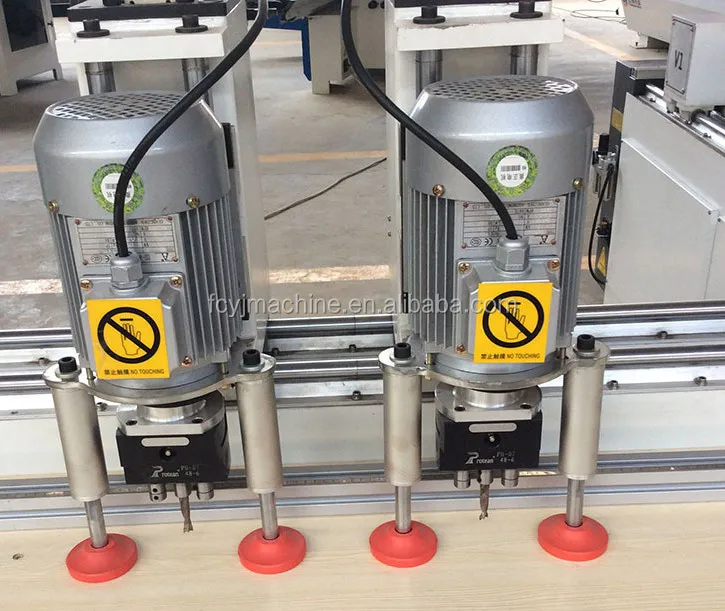

Adopts high precision Triple rail, to guarantee the precise movement and adjustment of the vertical spindles. The imported boring spindle guarantees to drill holes with high precision.

Technical data
Max drill diameter	35mm	Max working depth	60mm
distance between two heads	185-2200mm	Number of spinlde	4spindels
Spinlde speed	2840r/min	Motor power	1.5kw*4
Air pressure	0.6-0.8Mpa	Overall size	2600×900×1700mm

Our Company

Introduction

Qingdao Fucheng Yijia Machine Co., Ltd. is located by the beachside of the Yellow Sea and Jiaozhou Gulf, with beautiful natural scenery and convenient transportation of sea, land and air. We are the professional woodworking machine supplier, and our main products are the Precise panel saw, all kinds of edge banding machine, wood polishing sanding machine, wood multiple-drilling machine, spindle moulder, hydraulic cold press, hot press machine, etc.

Our Service

Pre-sale services:
Provide the free consultation of the equipment .
Provide the standard device and the flow chart.
According to the clients' special requirement, offering the reasonable plan and free design helping to select the equipment.
Welcome to visit our factory.
Services during the sales:
Inspect the machine before leaving the factory.
Oversea install and debug the equipment.
Train the first-line operator.
After sale services:
24 hours online service.
Provide the VIDEO with Install and debug the equipment.
Provide technical exchanging.

Packing & Delivery

Packaging
Size	2700(L) 1000(W) 1800 (D)mm
Weight	600kg
Packaging Details	The normal package is wooden box(1900(L) 1100(W) 1700 (D)mm). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

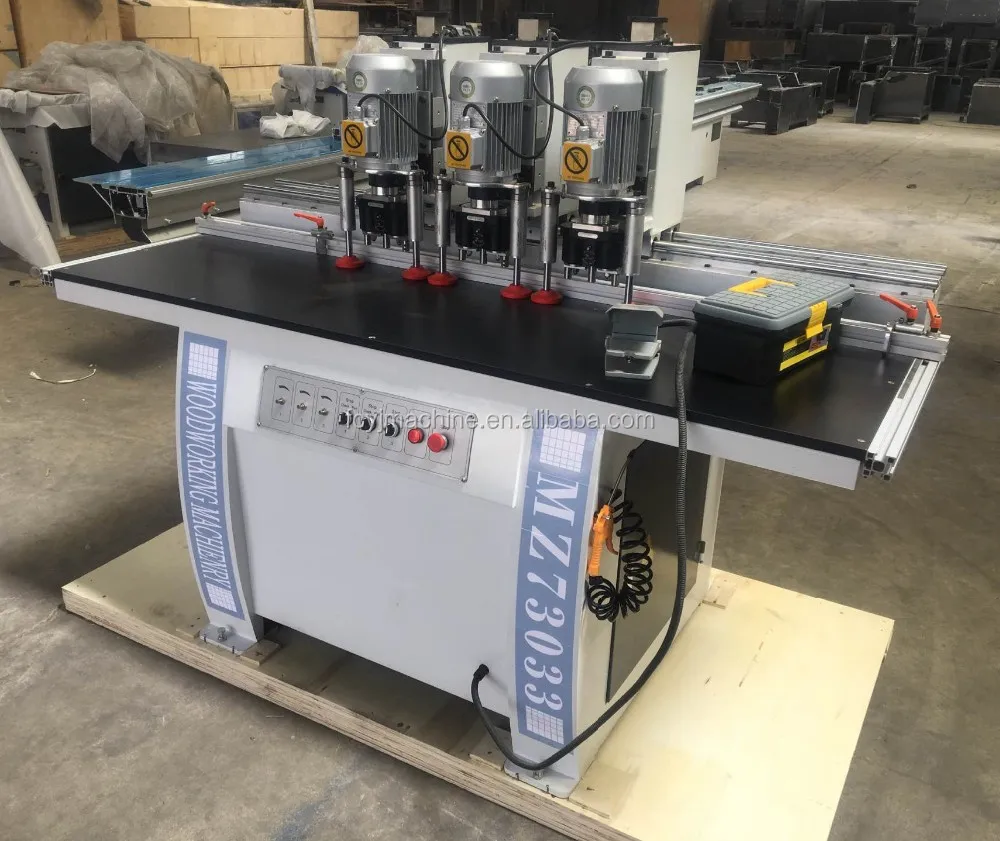

MZ73031 hinge boring machine

double heads hinge boring machine

semi-automatic egde bander

FAQ

1. How to make an order?
You can order online by Alibaba, Or send details required by email to us, and we will contact you as soon as possible and help you proceed with the orders.
2. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.
3. What is your delivery time?
Normally, we can finish one order within 30 working days, but the exact time depends on different products and different quantities you order.
4. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
5. What payment do you accept?
Normally we can provide TT, LC. Or you can pay directly on Alibaba.com. Any other ideas, please contact us for better support.
