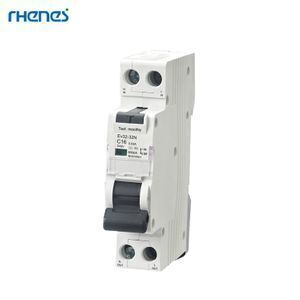

Australia hot sale 18mm DPN single pole 6KA 32A RCBO
- 0.57 >=10 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Rated current: | 1-32A; | Rated voltage: | 230V/400V; |
| Port: | Shanghai/Ningbo; | Warranty: | 3 Years; |
| Frequency: | 50/60Hz; | Installation: | 35 Mm DIN Rail; |
| Type: | Mini; | Tripping curve: | B, C, D; |
| Mechanical Life: | 4000Times; | Supply Ability: | 20000 Piece/Pieces per Week; |
| Poles Number: | 1P+N; | Certificate: | CE CB ISO9001 SEMKO ROHS; |
| Packaging Detail: | General sea worthy Package, export standard carton box. 1P:120pcs/ctn Carton Size: 46*23.5*17.5cm G.W/N.W: 13/12kgs; | Pole: | 1P+N; |
| Model Number: | Ev32-32N; | Payment Terms: | L/C,D/A,T/T,Western Union,MoneyGram; |
| Brand Name: | RHENES; | Breaking capacity: | 6KA; |
| Place of Origin: | Shanghai China; |
Australia hot sale 18mm DPN single pole 6KA 32A RCBO
I. Construction and Feature
Protection against both overload and short circuit
High short capacity
Easy mounting onto 35mm Din Rail

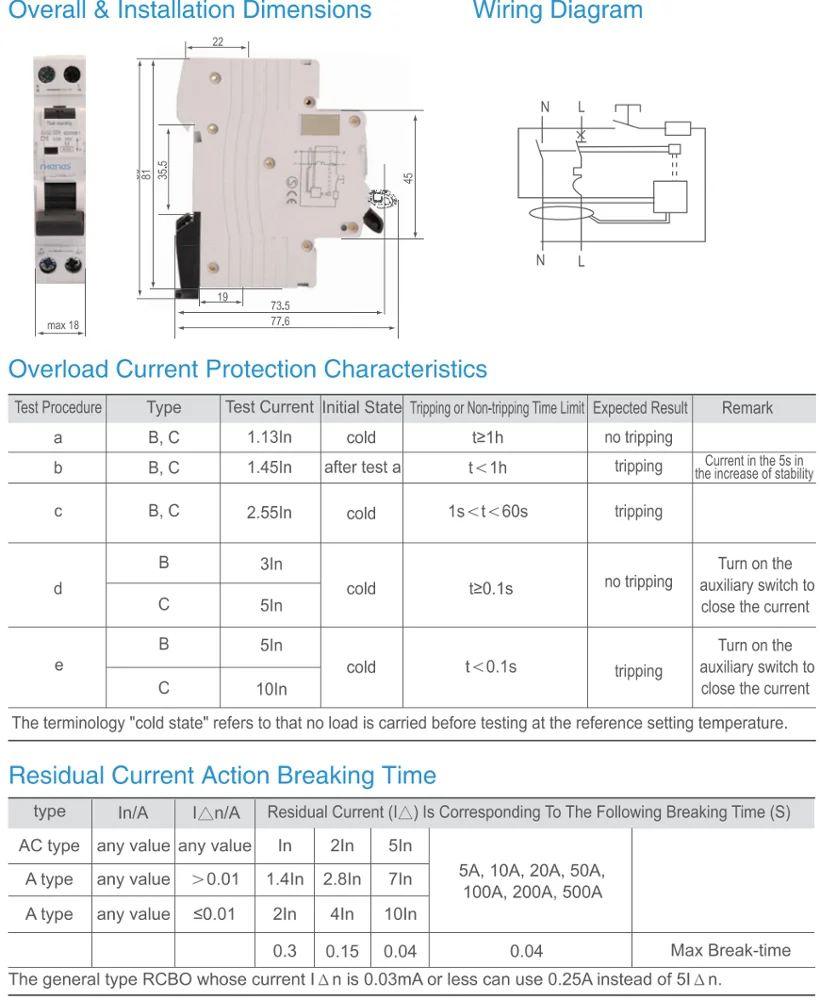

II. Technical Data
Pole No.: 1P+N
Rated voltage: AC 230/400V
Rated current (A): 1-32A
Tripping curve: B, C, D
High short-circuit breaking capacity (Icn): 6kA
Rated frequency: 50/60Hz
Energy limiting class: 3
Rated impulse withstand voltage: 6.2kV
Electro-mechanical endurance: 4000
Connection terminal: Pillar terminal with clamp
Connection capacity: Rigid conductor up to 25mm2
Fastening torque: 2.0Nm
Installation: On symmetrical DIN rail 35.5mm
Panel mounting
Terminal Connection Height: 21mm
