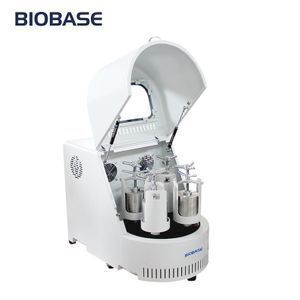

BIOBASE Four Ball Grinding Tanks Vertical Planetary Ball Mill(Semi-circle Model)
-
Supplier: Biobase Meihua Trading Co., Ltd. -
Region: Shandong, China -
Contact: Mr Manson Zhang -
Price: $100.00 /set -
Min. Order: 1 set
| Product name: | Vertical Planetary Ball Mill(Semi-circle Model); | Certification: | ISO CE; |
| Brand Name: | BIOBASE; | Dimension(L*W*H): | 530*300*340mm; |
| Place of Origin: | Shandong China; | Warranty: | 12 Months; |
| Volume of Each Capacity: | 50-100ml; | Rotation (rpm): | 90-870; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Voltage: | AC 110/220V±10%, 50/60Hz; |
| Adjustable Speed Revolution (rpm): | 45-435; | Weight: | 30KG; |
| Reciprocal Running Time (min): | 1-999; | Type: | Ball Mill; |
| Power(W): | 0.25KW; | Model Number: | BKBM-V0.4; |
| Supply Ability: | 500 Set/Sets per Month; | After-sales Service Provided: | Engineers available to service machinery overseas; |
| Running Time Range (min): | 1-9999; | Delivery Detail: | Shipped in 7 days after payment; |
| Capacity: | 0.4L; | Pot Quantity: | 4 pcs; |
| Packaging Detail: | Wooden case/Carton package; | Noise: | ≤58dB; |
| Port: | Qingdao; | Condition: | New; |
| Model: | BKBM-V0.4; |
BIOBASE, founded in 1999, is specialized in products of 8 areas include medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
Lab Solution Advantages:
1. BIOBASE has strict quality inspection system which could ensure the quality of OEM products. After-sales service of OEM products would be provided directly by BIOBASE.
2. Centralized purchasing could save delivery and custom cost. Distributors could better manage different suppliers through BIOBASE.
3. BIOBASE have flexible payment terms, credit period will be offered if the sales condition is good, which can help customer in turnover of capital.
4. After-sales service is guaranteed. Requirements of spare parts or exchange of products could be easily fulfilled at our global warehouses and oversea offices.
We will attend lots of exhibitions every year, and visite our customers all over the world.
BIOBASE group, founded in 1999, is specialized in products of 8 areas include medical diagnosis, biosafety protection, disinfection and sterilization, water purification system, infant care products, cold chain products, software products, clean room project.
Lab Commen Equipent for Your Reference
Packing details: Carton or wooden package
Shipping details: Shipped by sea, air, DHL, TNT, FedEx, EMS, can be choosed as your required
Delivery details: About 7 days after we receive your payment
1.Why do we cooperate with BIOBASE? |
BIOBASE group, founded in 1999 and been through high and stable development for 15 years.The products we manufacture extends to most of the laboratory items and scientific analytical equipments. Our mission is to enable our customers to make the world healthier, cleaner and safer. |
2.How about BIOBASE payment term? |
T/T in advance & L/C & Weatern Union(40% deposit,the balance before shipment). |
3.How about BIOBASE delivery time? |
10-15 days after we receive prepayment. |
4.How about the package? |
Plywood case or carton or standard export wooden case. |
5.What's the loading port? |
FOB to Qingdao port China or as customer's request |
Vicky Lu -Sales Representative
Biobase Biodustry(Shandong) Co., Ltd./ Biobase Meihua Trading Co., Ltd.
Address: No. 51 South Gongye Road, Jinan, Shandong, China 250100
Tel: 86-531-55697933
E-mail: sales36 @biobase.cc
Skype ID: sales36 @biobase.cc
WhatsApp: 86-18853102816
Website: www.meihuatrade.com/ www.biobase.cc/ www.labproject.cn
Send your inquiry details in the below, click " Send " Now!
BIOBASE Four Ball Grinding Tanks Vertical Planetary Ball Mill(Semi-circle Model)
Vertical Planetary Ball Mill(Semi-circle Model)
Planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.

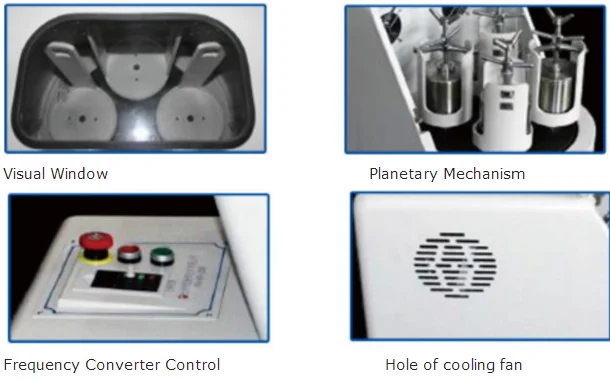

The Features of Vertical Planetary Ball Mill(Semi-circle Model)
1. 3D curve shape design.
2. Special gear with low noise.
The Parameters of Vertical Planetary Ball Mill(Semi-circle Model)
Model | BKBM-V0.4 | BKBM-V2 |
Capacity | 0.4L | 2L |
Volume of Each Capacity | 50-100ml | 50-500ml |
Pot Quantity | 4 pcs | |
Running Time Range (min) | 1-9999 | |
Reciprocal Running Time (min) | 1-999 | |
Adjustable Speed Revolution (rpm) | 45-435 | 35-335 |
Rotation (rpm) | 90-870 | 70-670 |
Noise | ≤58dB | ≤60dB |
Speed Control Mode | Frequency Control | |
Transmission Mode | Gear Drive | |
Working Mode | 2 or 4 pots can be used each time | |
Max Volume of Each Pot | 2/3 | |
Feed Size | Soft and Crispy material<10mm, Other materials<3mm | |
Out-put Granularity | Minimum Granularity can be reached to 0.1um | |
Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation | |
Consumption | 0.25KW | 0.75KW |
Power Supply | AC 110/220V±10%, 50/60Hz | |
External Size(mm) | 530*300*340 | 730*430*550 |
Packing Size(mm) | 595*360*485 | 820*530*720 |
Net Weight(kg) | 26 | 74 |
Gross Weight(kg) | 30 | 80 |
-
