MN-H711C Electric Mini Sightseeing Bus Tourism Products from Nantong Mingnuo Electric Technology Co., Ltd.

Product Details

Delivery Detail:	10 days after receipt of payment;	Port:	Shanghai;
Brand Name:	MINGNUO;	Packaging Detail:	IRON PACKING;
Supply Ability:	100 Set/Sets per Month;	Color:	Requirements;
Power:	Electric;	Payment Terms:	L/C,T/T;
Model Number:	MN-H711C;	Place of Origin:	Jiangsu China;

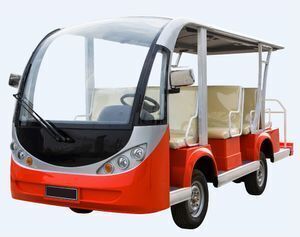

MN-H711C Electric Mini Sightseeing Bus Tourism

PARAMETERS

S/N	ITEM	SPECIFICATION
1	Passenger	11
2	Dimension(LWH)	4370×1430×1940mm
3	Curb weight	1700kg
4	Rated load	1050kg
5	Wheel base	2915mm
6	Track front	1205mm
7	Track rear	1200mm
8	Minimum ground clearance	220mm
9	Max speed(full load)	30km/h
10	Braking distance	≤5.5m
11	Minimum turn radius	≤6m
12	Maximum gradeability (full load)	20%/25%
13	Parking capacity(no load):	15%
14	Motor rated power	4KW DC /5KW AC
15	Battery	48V/200AH,72V/200AH
16	Lighting voltage and power	12V/110W
17	Charging time	8-10h
18	driving range	80km
19	tire	155R12C

FEATURES

1.Vehicle body:Steel frame and high strength of FRP

2. Chassis:Enhanced chassis of micro cars, anti rust electrophoresis painting, phosphating after washing and

3.Front windshield:Tempered glass with windscreen wiper

4.Ceiling:Fiberglass reinforced plastic making

5.Seat:High rebound leather seat

6.Floor:High-grade vehicle floor leather

7.Instrument desk:MP3/USB socked and player, forward and backward indicator, the car battery capacity and battery containing table indicator, polyurethane foaming armrest,glass block

8.Lamp and horn: Front headlights, front light, steering lights, reversing lights, traffic lights, brake lights, electric horn

9.Motor:High quality DC motor--4kw or 5kw AC motor,superior traction performance , overload capacity,long service life,

10.Battery: High quality large capacity and deep cirulation maintenance-free battery,

Battery voltage:48V/72V,

Battery capacity:200AH(Chaowei brand)

11. Electric control system:High-performance electric system with overcurrent and undervoltage protection, gentle start and durable service

12.Charge device:Full automatic & high efficiency pulse microcomputer intelligent charger, automatic stop after full charge, effectively extending battery life

13.Suspension system:Front Mcpherson independent suspension, rear suspension for multi plate spring, cylinder type hydraulic shock absorber

14.Brake system:Hydraulic double tube braking system,front and rear drum wheel brake,mechanical parking brake

15.Steering system:Gear rack type steering system,The utility model has the function of automatically adjusting the gap to make the steering vehicle move easily

16.Tire model:Durable and high quality automobile tires
