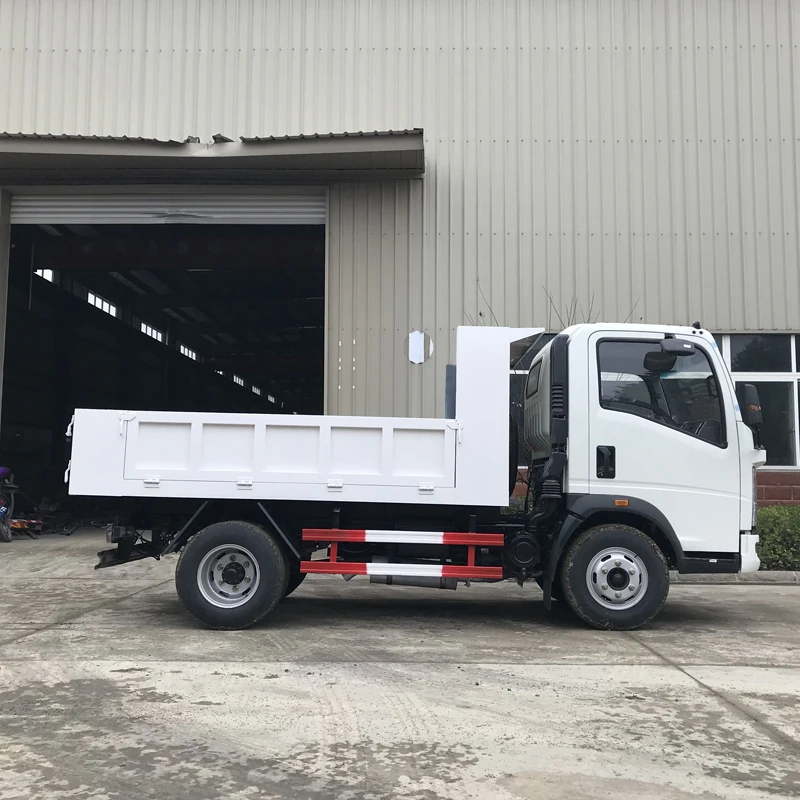

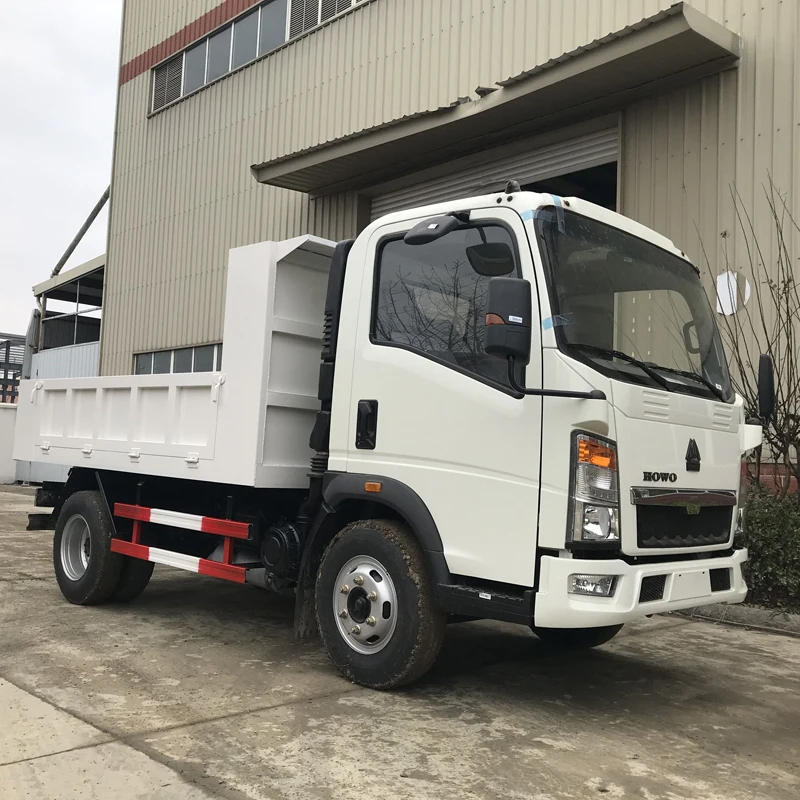

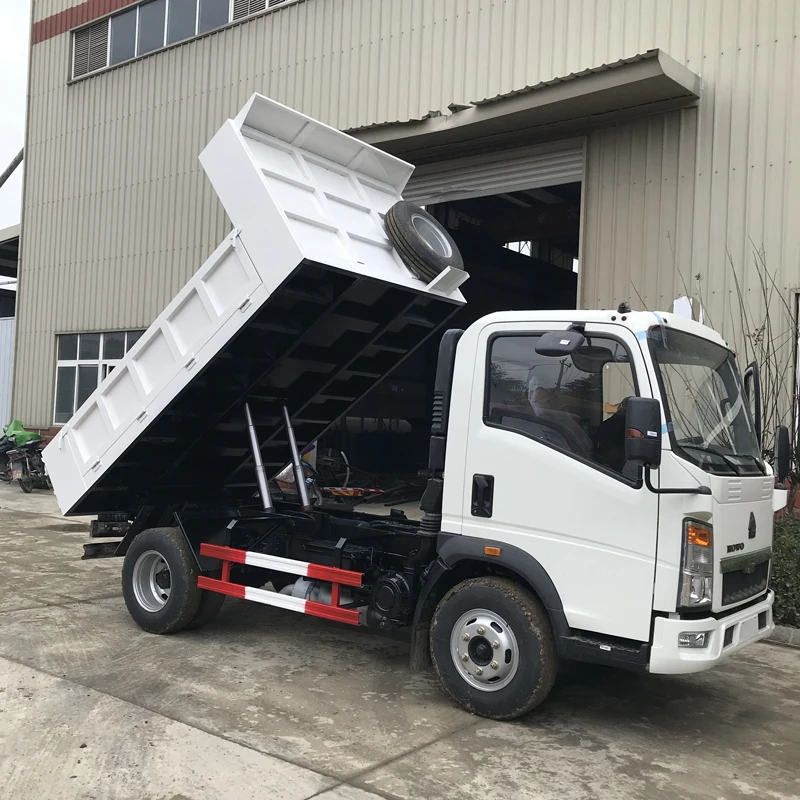

SINOTRUK HOWO 3 tons light dump truck

Click here to contact

Product details

Brand Name:	HLW;	Fuel Type:	Diesel;
Engine Capacity:	< 4L;	Packaging Detail:	1, attached parts and tools put into standard export box. 2, mini dump truck will be cleaned and covered with wax before delivery.;
Dimensions (L x W x H) (mm):	5315X2000X2180mm;	Transmission Type:	Manual;
Capacity (Load):	1 - 10t;	Port:	Any port in China;
Engine:	YN38PE-1;	Drive Wheel:	4x2;
Condition:	New;	Emission Standard:	Euro 3;
Place of Origin:	Hubei China;	Gross Vehicle Weight:	3805;
Horsepower:	90hp;	Supply Ability:	200 Unit/Units per Month;
Color:	Optional;	Payment Terms:	L/C,T/T;

Product Description

Chassis parameters
Chassis model		ZZ1047C2813C145	Chassis brand	SINOTRUK
Overall dimensions		5300X1760X2350mm	Wheel base	2800mm
Front/rear wheel track		1620/1520mm	Front/rear suspension	1160/1520mm
Approach/departure angle		17/18°	Maximum speed	90km/h
Chassis Manufacturer		China National Heavy Duty Truck Group Co.,Ltd
Cab	Configuration	1760 a single row cabin, the cabin can be tilted.
	Color	White, other color is optional
Engine	Model	4DW93-84E3
	Emission	Euro 3
	Type	4 cylinders, in-line, turbo inter-cooling
	Rated power	90hp (66KW), rated power speed 3000rpm
	Displacement	2540ml
	Max.torque	210N.m
	Bore x stroke	90X100mm
	Manufacturer	Jiangsu Wuxi Diesel Power Co.,Ltd
Tire	Size	6.50R16 steel wire tire
	Number	6+1 nos
Fuel tank	80L iron oil tank
Front axle	2.0 tons
Rear axle	3.5 tons
Drive form	4X2
Suspension	Multi leaf springs
Rated voltage	24V, DC
Transmissions	WLY525, 5 speed forward 1 reverse.
Steering device	Power assisted steering
Steering wheel	Left hand drive
If there is a slight change in the chassis parameters above, please take the actual product as the standard

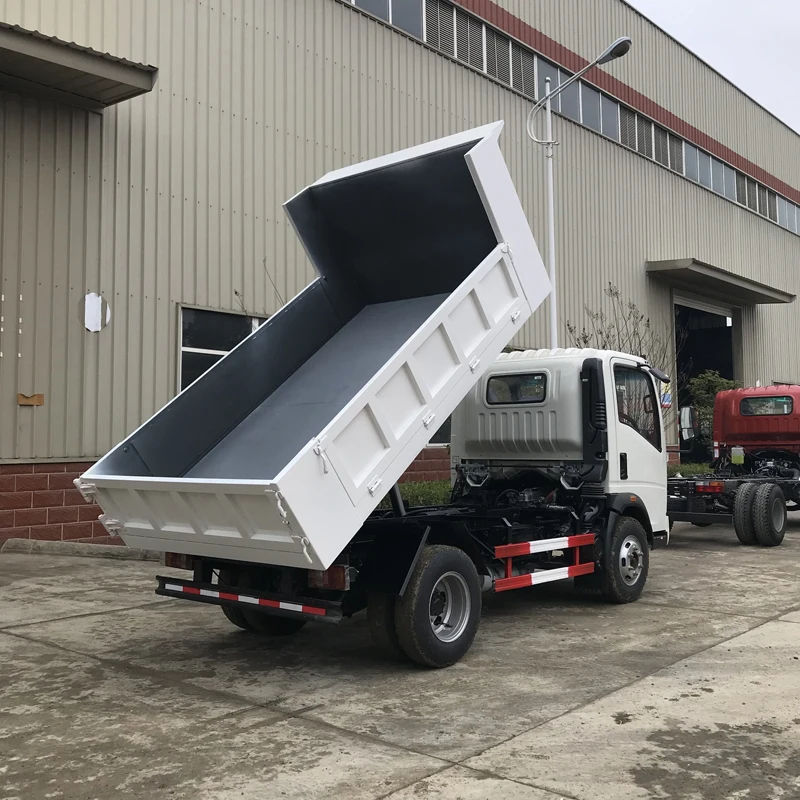

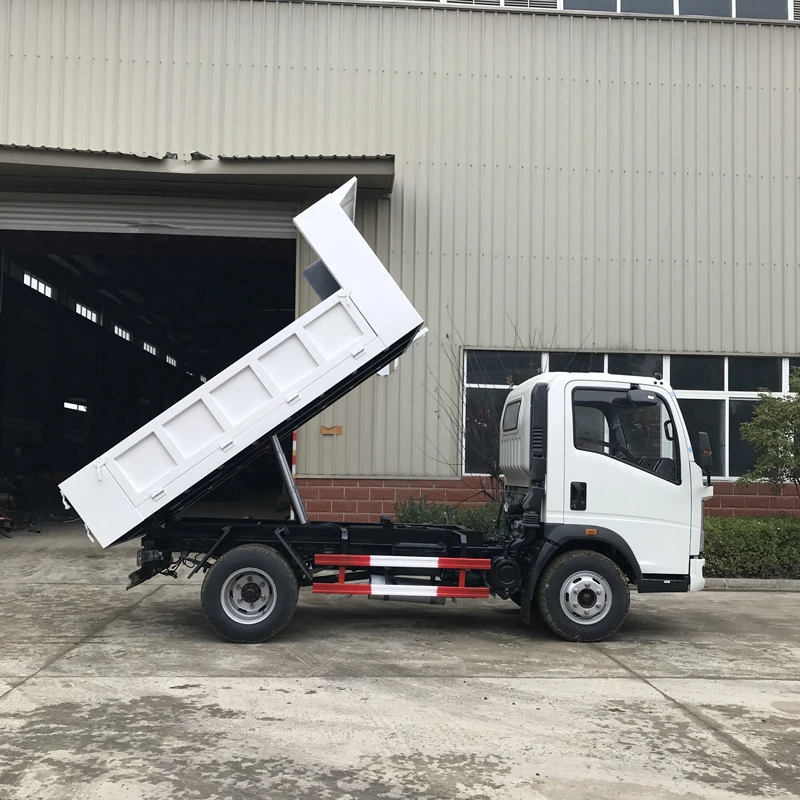

Dump truck structure parameters
Van body dimensions	3100X1900X500mm	Side wall	3mm
Bottom plate	4mm	Van body material	Common steel
Lifting position	Middle	Dumping direction	Rear

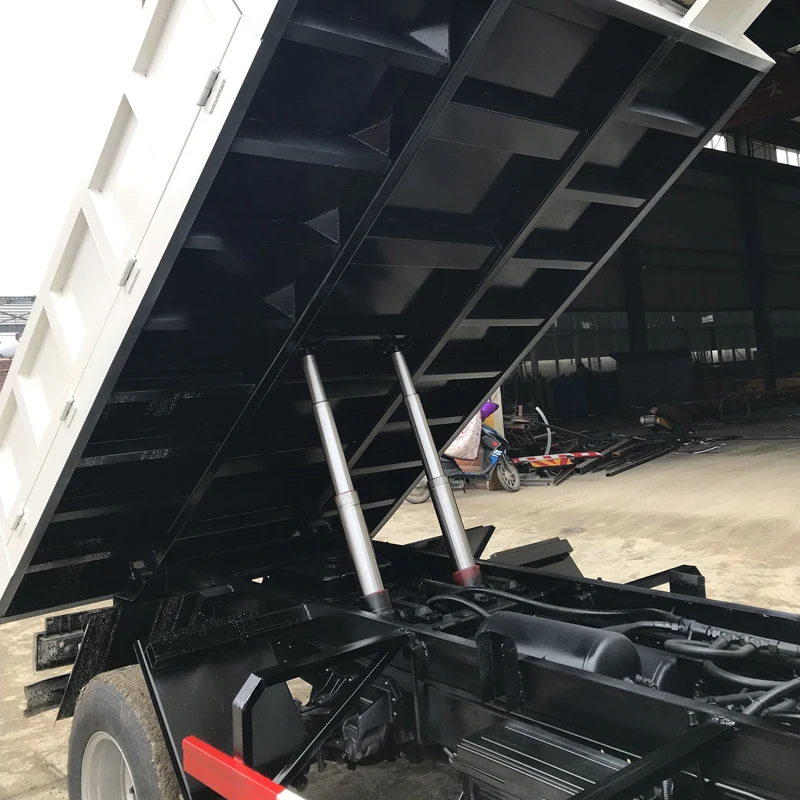

Oil Cylinder	Domestic 110 double	Color and Logo	Optional
Standard configuration	Chassis, sub frame, van body side 3mm bottom 4mm,domestic middle lifting hydraulic cylinder Domestic 110 double, common steel, two longitudinal beams, rectangular van body, single door
