8th Gen Processor Win10/Linux Barebone Mini PC Intel core i5 8250U i7 8550U Intel Graphics UHD 620 DDR4 ,RTC Function Gaming PC

Supplier: Shenzhen Eglobal Import And Export Co., Limited
Region: Guangdong, China
Contact: Mr Klaus Lee
Price: $257.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dispaly Port:	1miniDP+ 1HD;	Place of Origin:	Guangdong China;
Supply Ability:	1000 Set/Sets per Month;	Model Number:	V200-8250U/8550U;
USB Port:	2* USB 2.0+ 2USB3.0+1Type-C;	Type:	Barebone System;
Payment Terms:	T/T,Western Union,MoneyGram,Paypal;	Screen Size:	No Monitor;
Color:	Black color aluminum alloy;	Computer Dimension:	a. 10811330mm b. 10811341mm;
Processor Main Frequency:	i5 1.6~ 3.40 i7 1.8~4.0GHz;	CPU:	Intel core i5 8250U/i7 8550U;
Processor Brand:	Intel;	Graphics Card Type:	Integrated Card;
Consumption:	a.19V 40W b.19V 65W;	Packaging Detail:	Neutral Art boxes package;
NW:	a. 388g b. 530g;	Products Status:	Stock;
Graphics Card:	Intel UHD Graphics 620;	Brand Name:	EGLOBAL;
Power:	DC 12V~19V/5A;	Port:	SHENZHEN;
Memory Capacity:	DDR4 4/8/16/32GB;

Product Description

8th Gen Processor Win10/Linux Barebone Mini PC Intel core i5 8250U i7 8550U Intel Graphics UHD 620 DDR4 ,RTC Function Gaming PC

3-Years long warranty for mini pc !!!

Images of 8th Gen Mini pc

Features of the mini gaming pc :

♦ Fan system with cooling fan

♦ Appropriate product design: Contracted design style, super mini body and good performance, the heat dissipation capability of stable

♦ Strict ME tolerance control: Full experience tooling design and CNC process good gap control in final system assembly process

♦ Support PXE, AWAL, RTC function

♦ 1*USB-C connector

♦ Package Content: 1*Mini PC, 1*Power Adapter, 1*VESA mount

♦ CE, FCC, ROHS, BIS, Energy Star certification

Core i5/i7 mini gaming pc Specifications:

Features		Specifications
CPU	Install Method	FCBGA1356
	TDP	15W
	Level 2 Cache	6MB
	Chipsets	Intel Kaby Lake Refresh
	Type	l Intel Core i5-8250U Processor, 6M Cache, up to 3.40 GHz, Intel UHD Graphics 620 l Intel Core i7 8550U Processor, 8M Cache, up to 4.0 GHz, Intel UHD Graphics 620
Memory	RAM Slot	DDR4-2133/2400 2*SO-DIMM solts, Support up to 32GB,
Panel		NA

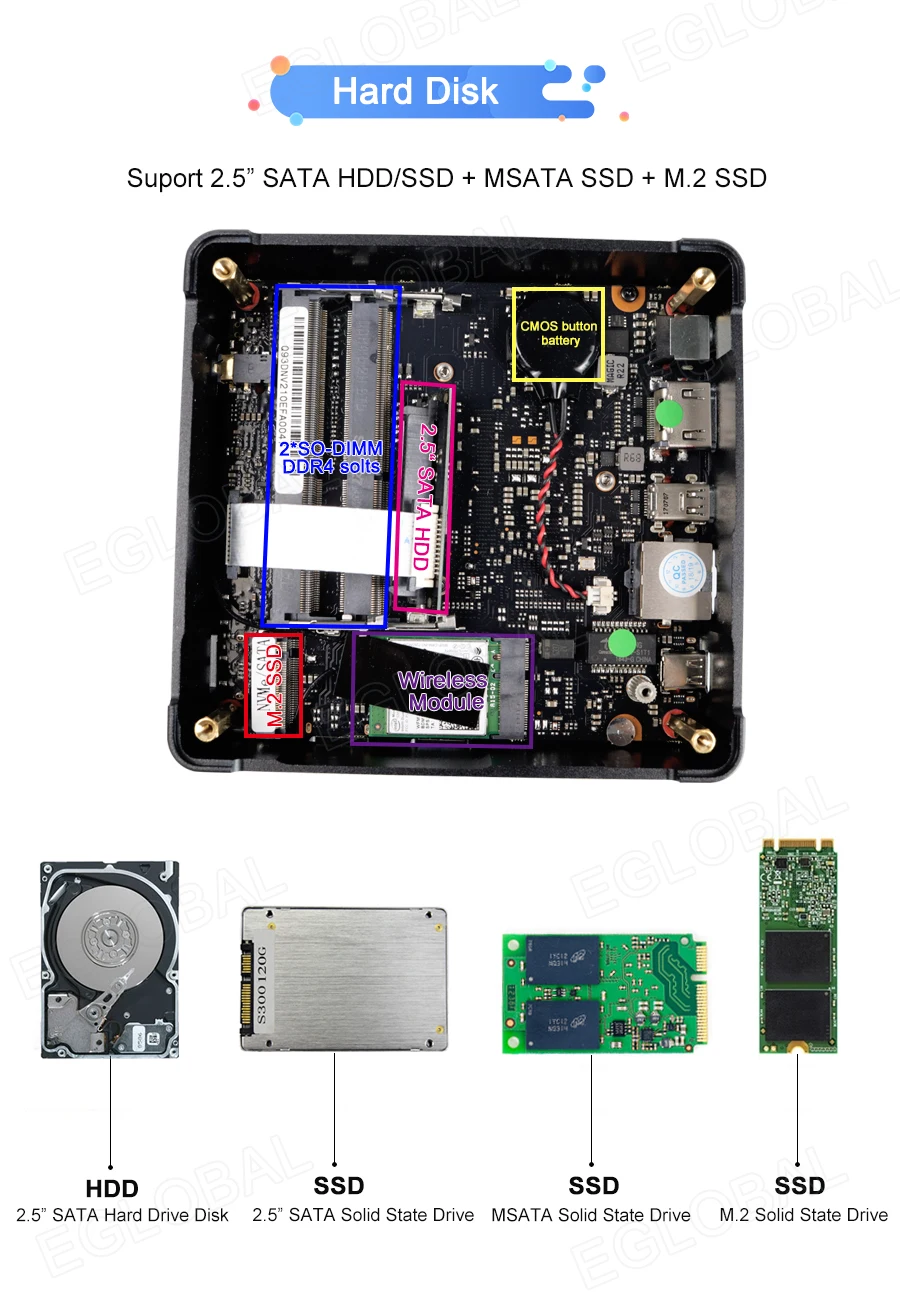

Storage	Hard Disk	a. M.2 NGFF/PCIE3.0 2280 SSD,UP to 512GB(thin version) b. M.2 NGFF/PCIE3.0 2280 SSD+9.5mm 2.5''HDD(thick version)
Graphic	Graphic Controller	Integrated
Communications	Wireless networking devices	a. 2.4G/5G Wifi B/G/N/AC d. Bluetooth

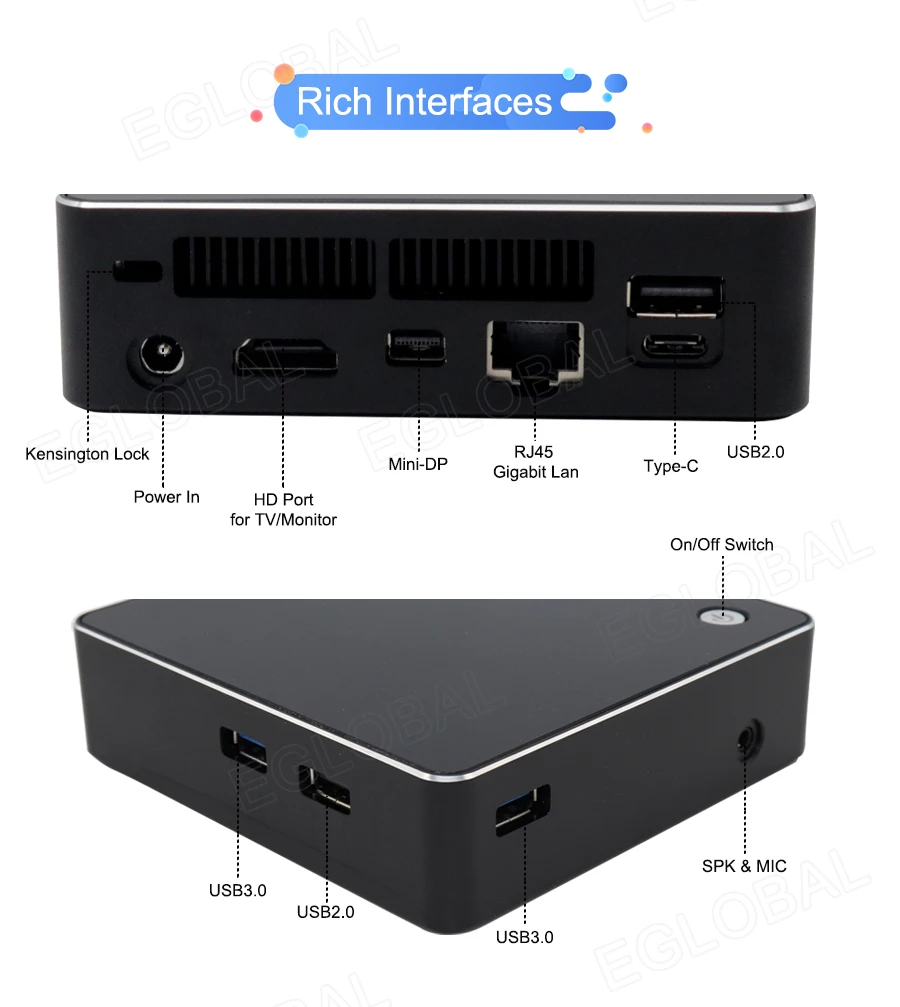

I/O Port		2X USB 2.0 connectors 2X USB 3.0 connectors 1X USB-C connectors 1X Headphone-out/ MIC-in phone jack 1X Mini DP output 1X DC power 1X HD output 1X RJ45
Point device		NA
Sensor		NA
Aodio Codec	codec	Azalia Codec support 2.1 channel output
Webcam		NA
Status Indication	On/Off/Suspend	LED ON/OFF/FLASH
security		Kensington Lock

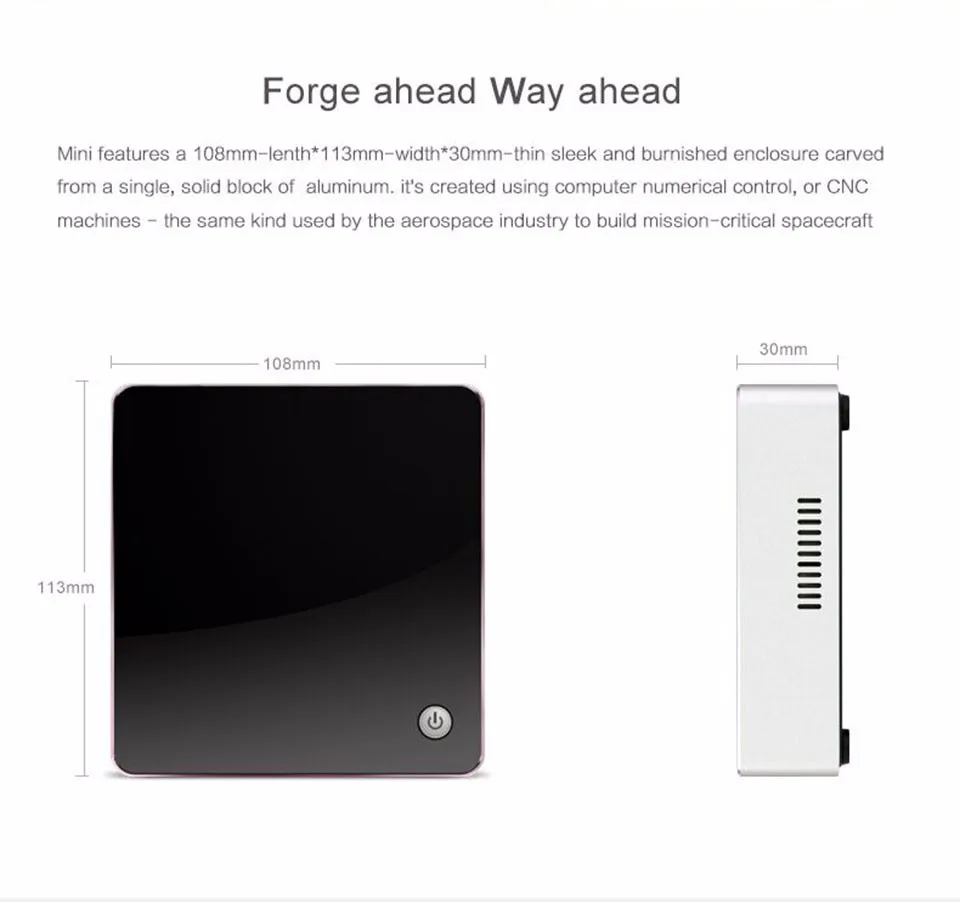

Physical Outline	Dimension	a. 10811330mm b. 10811341mm
Physical Outline	Weight	a. 388g b. 530g
Power	DC	a.19V 40W b.19V 65W
Power	Battery	NA
Dimensions		NA
Certification		CE/FCC
Operating System		Windows10, Linux
Other function		Support RTC

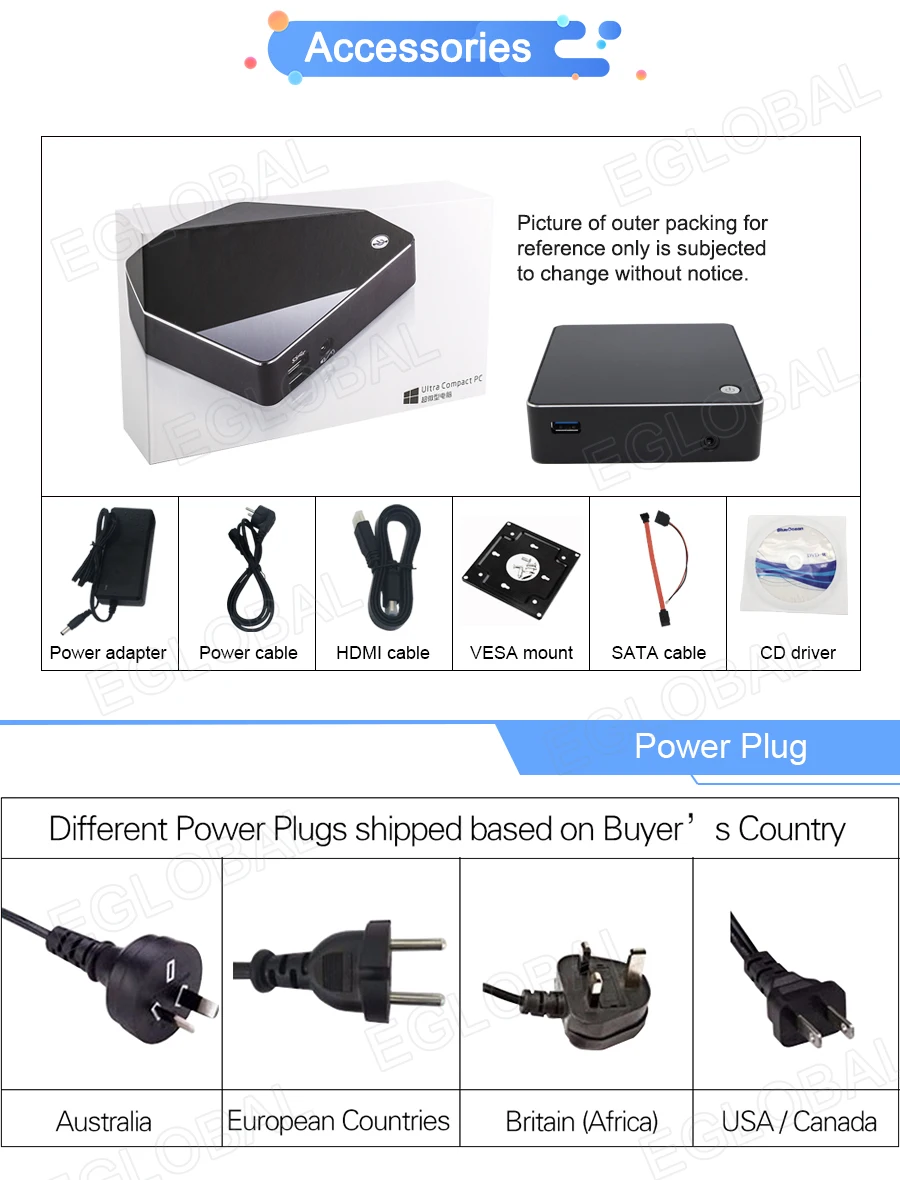

Packaging & Shipping

Packaging:

1 * Mini PC device

1 * EU/AM/BR/AU standard power adapter
1 * Set of SATA data cable
1 * H-D-M-I Cable
1 * Screws bag
1 * Warranty Card
1 * VESA Mount

Shipment

1.All items can be shipped by DHL,Fedex,EMS,China post,UPS and other Post service,

all come with tracking number,any more detalis about shipment could be dicussed with us.

Our Services

Free Operating System before delivery:

Default installed our activated OEM cracked version Win7 or Win8 or Win10 in English for free, other languages can be selected among: Russian,Spanish,Portuguese,French,German,Arabic,Italian,Japanese,Turkish,Greek etc. Please inform us which language you want to install. Other systems we can install free are like Linux, XBMC(Kodi), Ubuntu, Openelec etc if you need.

We will reply you for your inquiry in 24 hours.

3-Years long warranty for mini pc.

We can supply free OEM service:
