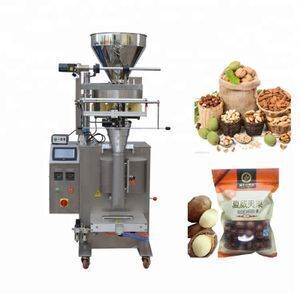

YB-300k Automatic Nuts/ Legume/ Grains Packaging Machine
- 4800.00 >=2 sets
| sealing method: | pneumatic/ mechanical; | Single package size: | 140X83X193 cm; |
| Single gross weight: | 400 KG; | Brand Name: | YB; |
| Product name: | nuts packaging machine; | Warranty: | one year; |
| Applicable Industries: | Food & Beverage Factory,Food & Beverage Shops; | Certification: | CE; |
| control system: | PLC; | Condition: | New; |
| Sealing type: | 3 sides seal, pillow seal; | Packaging Type: | Bags,Film; |
| Selling Units: | Single item; | Weight: | 350kg; |
| Automatic Grade: | Automatic; | machine material: | 304 stainless steel; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Print unit: | 1-3 lines; |
| Type: | Other; | Place of Origin: | Shanghai China; |
| Packing range: | 10g-1000g; | production capacity: | 20-60 bags/min; |
| Power: | 1.6KW; | Dimension(L*W*H): | 1100mm x 800mm x 1900mm; |
| Voltage: | 220V; | max Film width: | 450mm; |
| Application: | Beverage,Chemical,Food,Machinery & Hardware,Medical; | Packaging Material: | Wood; |
| Package Type: | wooden box; | Driven Type: | Electric; |
YB-300K Automatic Nuts/ Legume/ Grains Packaging Machine
Samples:
Usage
This machine is widely used to pack granular materials, such as washing powder, sugar, coffee, salt, MSG, flavouring, sunflower seeds, nuts, tea, herbs, peanuts, beans, rice, grains, etc.
Function and features
1.This machine can finish these work automatically: measuring--making bag--coding (option)--filling--gas injection(option)--sealing--counting.
2. Computer/PLC control system, photoelectric tracking, which improve the control precision, reliability and intelligence at the maximum limit.
3. Has fault display system, easy to operate and maintain.
4. Make punching blade after customer's special request.
5. Full stainless steel or carbon steel machine for choice.
Technical parameter
Model Type | YB-150k | YB-300k |
Packing speed | 30-80 bags/min | 20-60bags/min |
Packing range | 5-200ml | 50-1000ml |
Making bag size | L: 50-150mm, W: 15-130mm | L:50-300mm, W:50-210mm |
Packing accuracy | ≤±1% | ≤±1% |
Power | 1.6 KW | 1.9KW |
Power supply | AC220V, 50/60Hz | AC220V, 50/60Hz |
Seal type | 3/4 side seal, pillow seal | 3/4 side seal, pillow seal |
Net weight | 250kg | 350kg |
Machine dimension | 600*790*1800mm | 800*1100*1900mm |

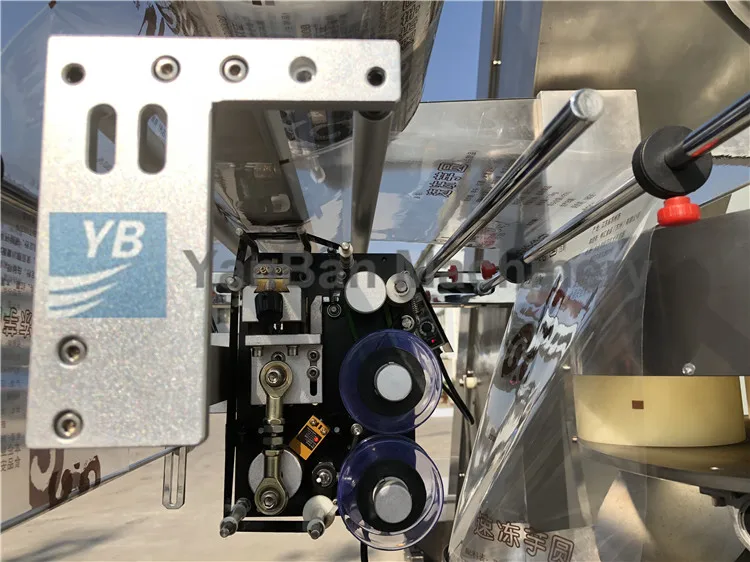

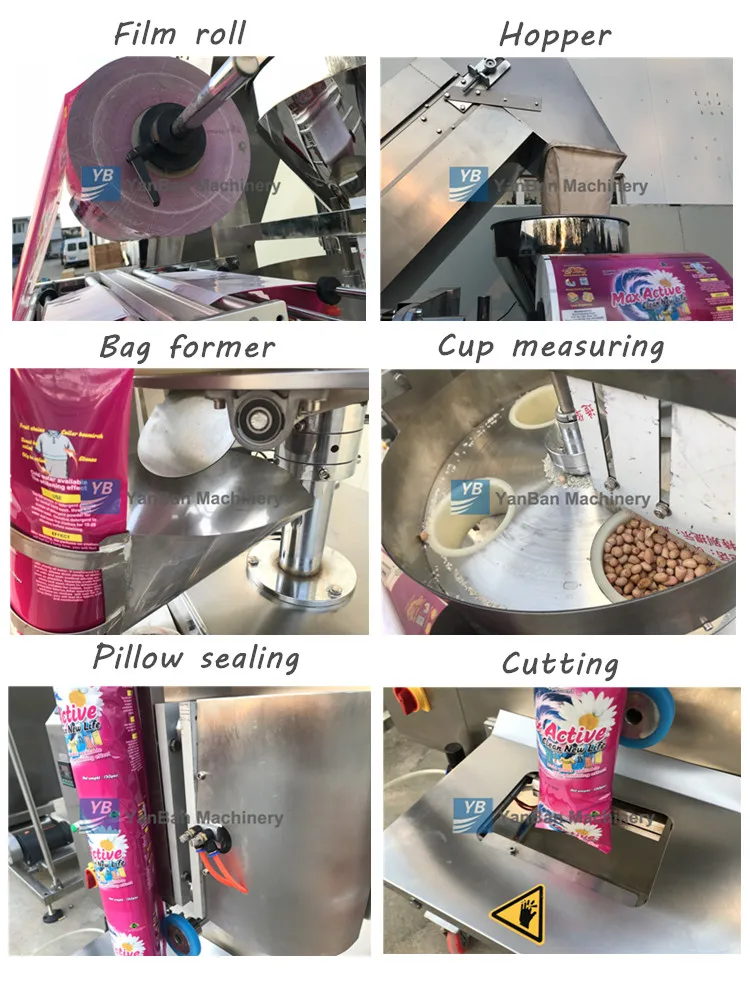

Machine details
Shanghai Yanban Machinery Co., Ltd
Contact: Serene
Mob/Skype/WhatsApp: +86 18321269629
Wechat: by18321269629 QQ:2757724295
Related machines
Pls click to know more⇓

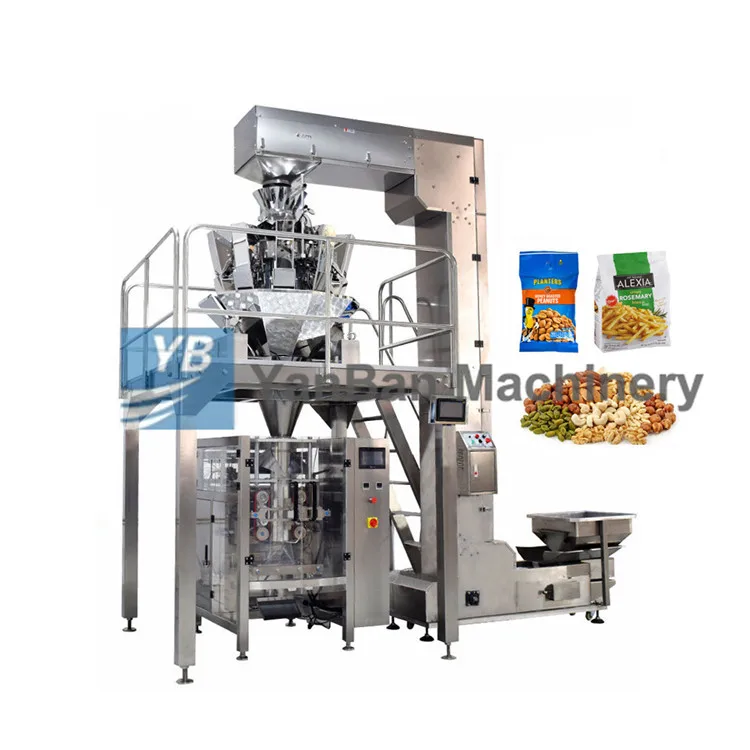

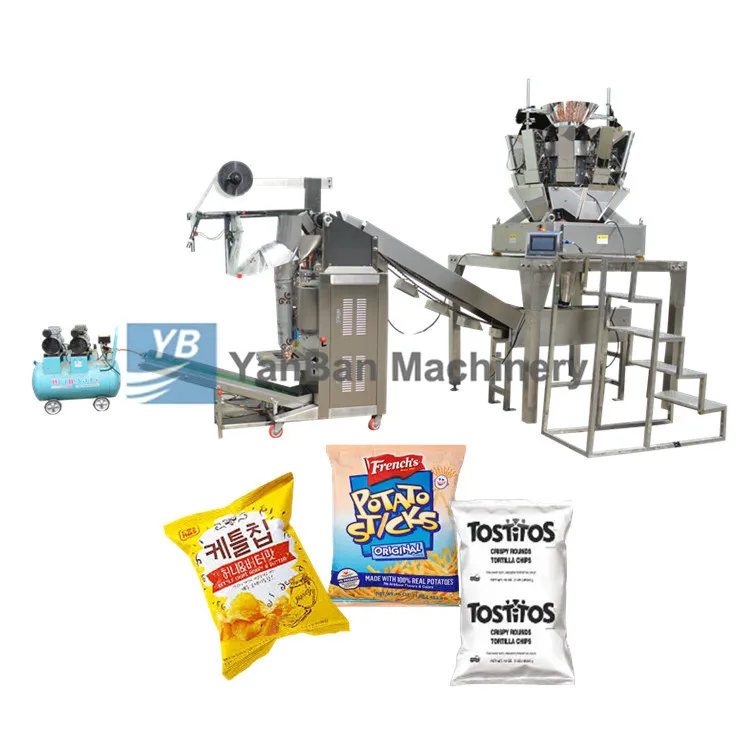

5g 10g Sugar/salt/pepper packaging machine Granule packing machine with multi-head weigher

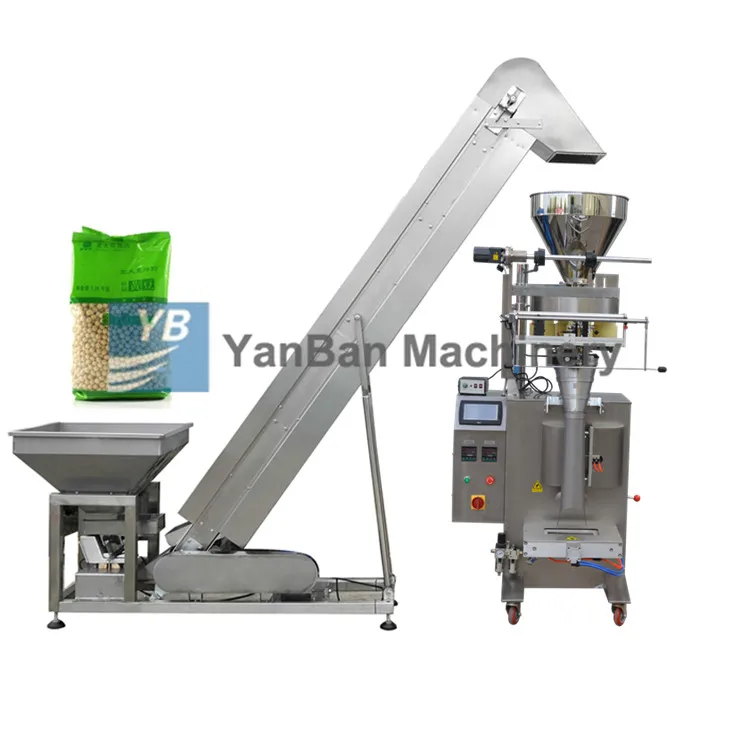

Granule packing machine with elevator Chain bucket with multi-head weigher

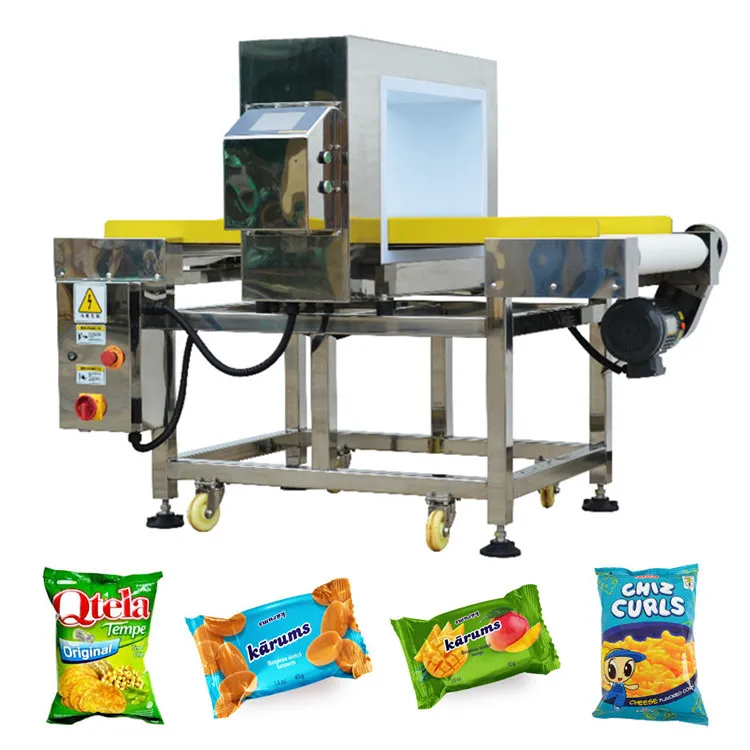

Metal detector can help you to detect if there are any metal foreign objects.
