custom Acrylic bending machine with 2/3/4 lines

Supplier: Shanghai Tallntech Machinery Manufactory Co., Ltd.
Region: Shanghai, China
Contact: Ms Linda Z
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material / Metal Processed:	Plastic;	Raw Material:	Sheet / Plate Rolling;
Automation:	Manual;	Packaging Detail:	wood packing with foam;
Brand Name:	TALLNTECH;	Power:	CNC;
Extra Services:	Heat Treating;	Certification:	ISO 9001:2000;
Payment Terms:	L/C,T/T;	Supply Ability:	100 Set/Sets per Month;
Delivery Detail:	Shipped in 15 days after payment;	After-sales Service Provided:	Engineers available to service machinery overseas;
Machine Type:	sheet BENDING MACHINE;	Model Number:	TN-1200/1800/2400;
length:	custom;	Place of Origin:	Shanghai China;
Port:	shanghai;	Condition:	New;

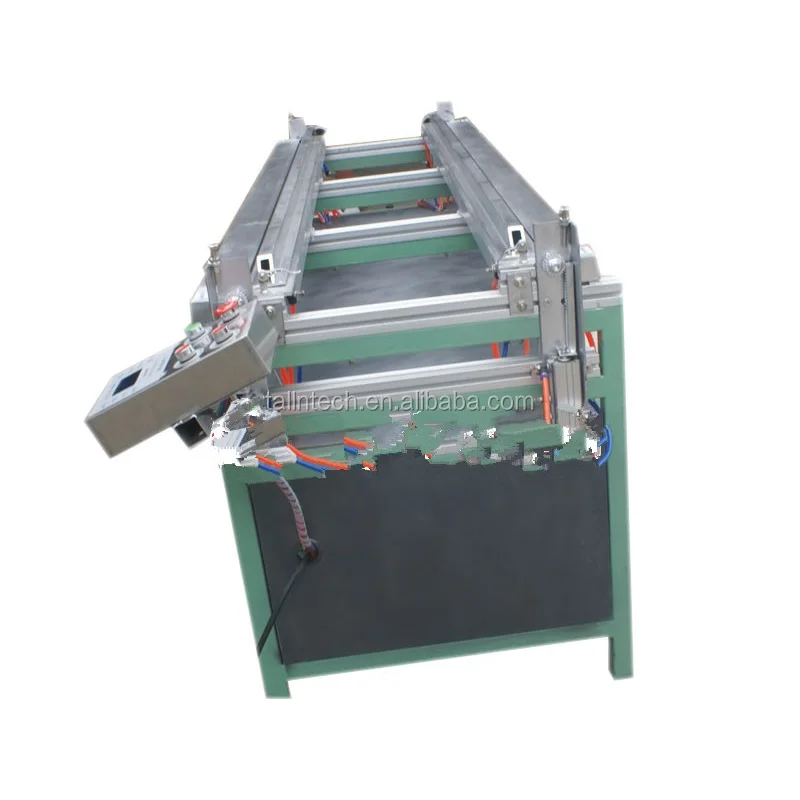

TN-1200/1800/2400 Automatic Acrylic Bending Machine--- Parameters

Product Name: Acrylic Bending Machine

Model: TN-1200 , TN-1800, TN-2400,TN-3000

(We could customized acrylic equipment for you, except standard equipment, if you need.)

Machining Principle: Thermoforming

Machinable Materials: Acrylic, Plexiglass, ABS, PVC, PC, PS and other Plastic products

Applicable Industry: Advertising, exhibition, gift processing, decoration, automotive, home appliances and other

Drive mode: Pneumatic

Control mode: NC

Processing thickness:1-15MM

Warranty: One year (All components)

Specification:

Model	Overall (LWH mm)	Working Length	Bending Angle	Bending Thickness	Power
TN-1200	1680×500×1100	1200mm	1~179°	0.8~10 mm	220V/50HZ
TN-1800	2280×500×1100	1800mm	1~179°	0.8~10 mm	220V/50HZ
TN-2400	2950×500×1100mm	2400mm	1~179°	0.8~10 mm	220V/50HZ
TN-3000	3550×500×1100mm	3000mm	1~179°	0.8~10 mm	220V/50HZ

TALLNTECH acrylic bending machine can manual and automatic operation, the heating time is adjustable, heating completed will automatically alarm, heating temperature is adjustable, natural cooling and water cooling. The price is affordable, simple and practical. Improve the efficiency of operating. This machine can processing plastic sheet and a variety of materials.

1.Domestic first manufactured-Infrared plating barium heater and unique energy saving heat insulation device make the heating temperature equally ,meantime can make heat radiation upward, save 40% energy than ordinary machine.

2.When bending,the heater can shift and interrupt power supply. To make the material cooling and shaping more rapidly,save more energy,operation more reasonable and humanity.

3.Our special multifunction fixing position and protractor,can make the bending angle adjustble,steerable,accurate and convenient.

4.Automatically water cooling system,can make the machine has the line heating function.

5.The working table is thick stainless steel platform,avoid the acrylic damaging when it is working.

6..The machine with special double leakage automatic protection function, safety in use.

7.Integration of high strength of frame, stable performance, convenient for transportation and installation.

8.Wide usage: the machine can process acrylic board; ABS board; PVC board; Sunshine board and etc.

9.Automatic bending function.can bend automaticly according to plate requirements to.cool and finalize the design after bending, then flap plate to return.Remove bended workpiece. Fully realized automation.

Service

1.one year quality guaranty for mainly spare parts ( not include quick-wears parts)

2.We will provide the consumable parts at an agency price when you need replacement.

3.Free training course at our plant.

4.12 hours free technical support online.

5. The english operation manul is included.

6. Machine has been adjusted well before delivery. Operation disk was included.
