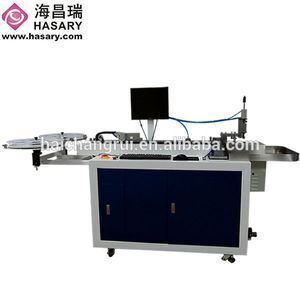

Super march discount HLB23 steel rule bending machine/auto bender machine for die cutting
- 5000.00 unit
| Machine Type: | Metal Sheet Bending Machine; | Rules Thicness: | 1PT-3PT; |
| Max.Bending Angle: | 130°; | Min. Bending Size: | 1mm; |
| Supply Ability: | 6000 Set/Sets per Year; | Packaging Detail: | wood case; |
| Material / Metal Processed: | Stainless Steel; | Condition: | New; |
| Brand Name: | HASARY; | Certification: | ISO 9001:2000; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Extra Services: | Cutting,Lipping,Bridging; |
| Place of Origin: | Hubei China; | Payment Terms: | D/P,T/T; |
| Automation: | Automatic; | Feeding Precision: | ±0.2mm; |
| Air Pressure: | 0.5~0.6mpa; | Model Number: | HLB23; |
| Bending Flatness: | ±0.2mm; | Port: | Shanghai; |
| Power: | CNC; | Power Supply: | AV220V±10%,50HZ; |
| Function: | Bending,Cutting,Lipping,Bridge; | Raw Material: | Sheet/Plate Bending; |
| Delivery Detail: | Within 7-15 Business Days; | Application: | Iudstry; |
Super march discount HLB23 steel rule bending machine/auto bender machine for die cutting
1.Computer automated production with highly precise electronic component controlling and monitoring the production process to bend die-cutting rules precisely.
2. Punch bidge, lippers, stright cuts and performation automatically, and poducing die-cutting rules with all these function at one time.
3. Ball-screw rules feeding design to support both coiled and stight rules.
4. An option to select the auto-lifting rule golder, which makes changing different types coiled rules much easier and safer.

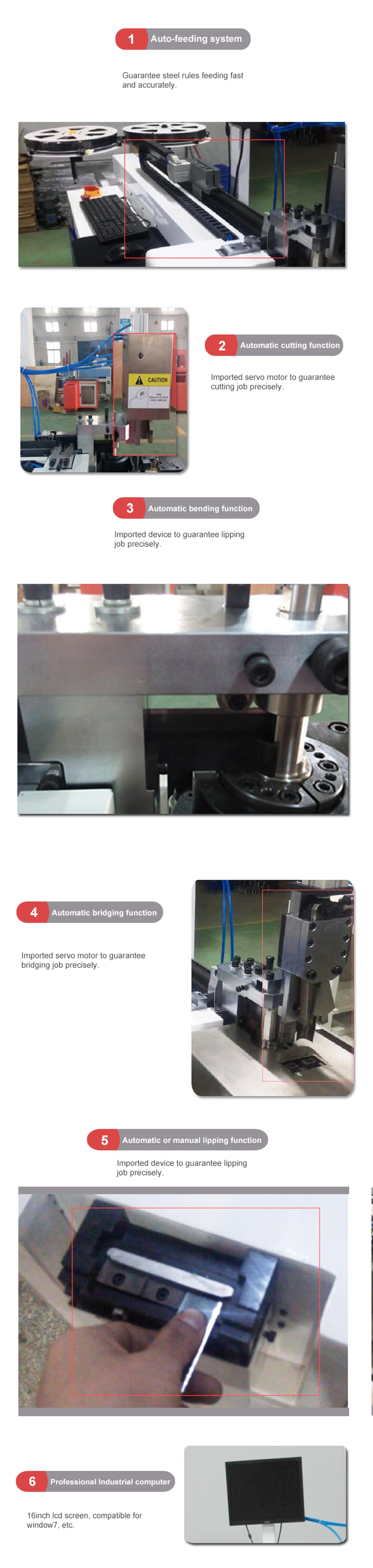

HLB23 Bending System
Feeding-Use the roll feeding system, could feed the steel rule very fast and accurately.
Cutting-Automatical cutting, easy to cut the steel rules
Bridging-automatical bridging
Lipping-Automatic lipping
Bending-Use firware bending system, could bend the boxes,toys,electronics perfectly

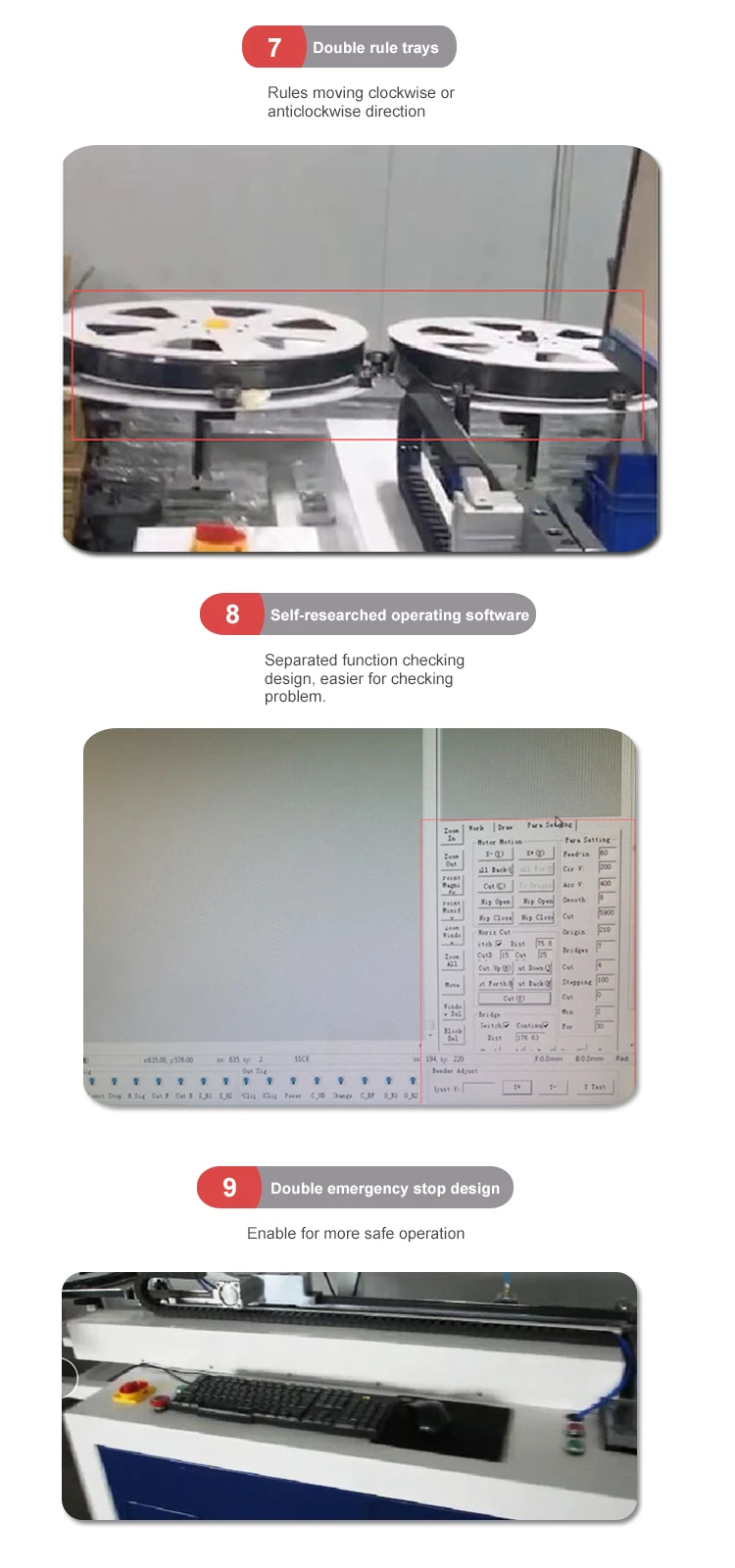

Rules Rest-Use the single rule rest,could move two sides to ensure the clockwise or anticlockwise rules trays
Software-English interface is easy to learn and operate
Steel Rule-Thickness 1PT(0.45mm), 1.5PT(0.53mm),2PT(0.71mm)

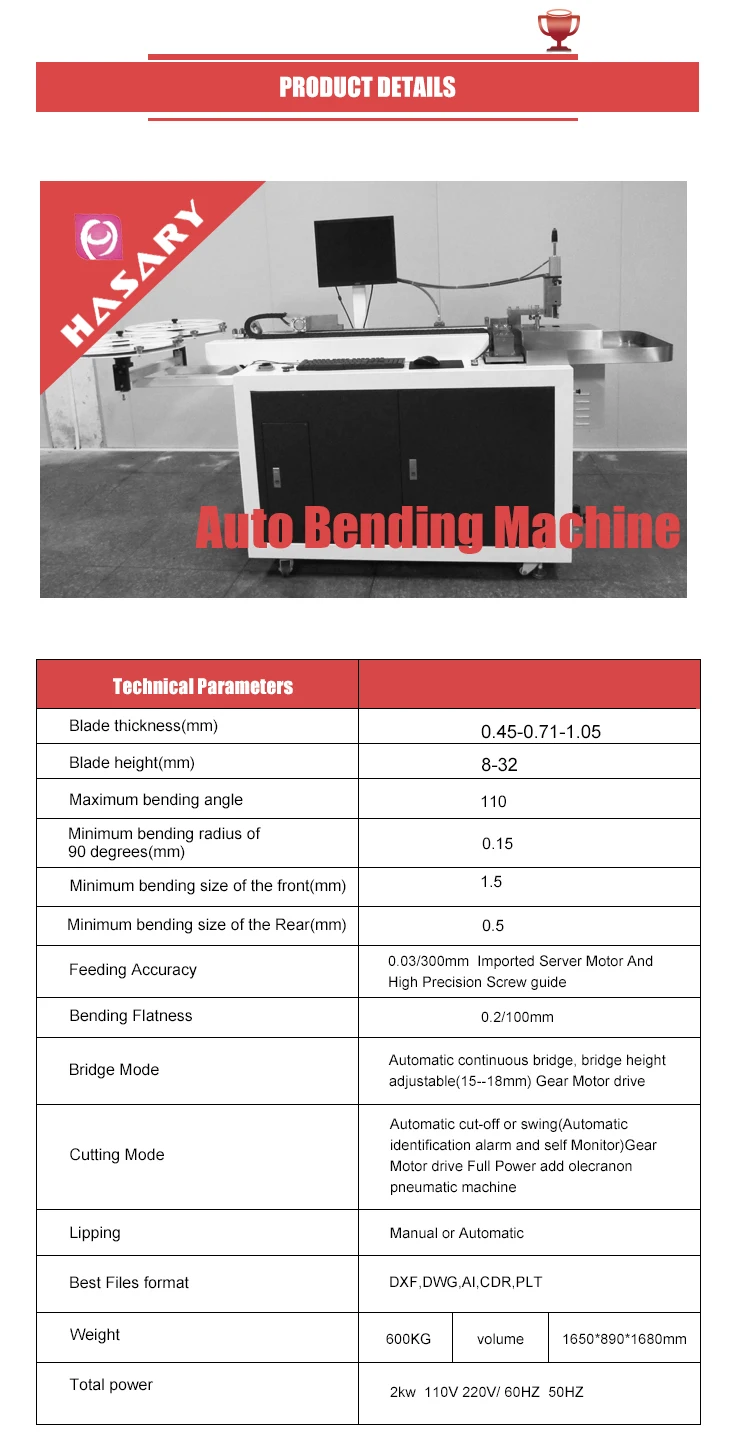

Technical Parameters
Model.No | HLB23 |
Rules Thickness | 0.45mm-1.07mm(1PT-3PT) |
Rules Hight | 8mm-23.8mm |
Max bending Angles | 130° |
Min bending Size | 1mm |
Min cutting Size | 1mm |
Feeding Precision | ±0.01mm |
Function | Bending, Cutting,Lipping, Bridging |
Support Format | dxf,bmpjpg,gif,pgn,tif,dwg,crd,etc |
Compressed Air | 0.6Mpa |
Power Supply | 380V±10%/50HZ/100A |
Bending accuracy | ±0.1° |
Rotary accuracy | ±0.1° |
Gross Weight | 350kgs |
Wuhan Hasary Equipment Co., Ltd is a new and high technology enterprise in the Optics Valley of China. Our company is specialized in computer software development and technology transfer, laser equipment, optical-electronic equipment and electromechanical equipment, and we also do the agent of various commodities and technology import and export business.Undertake precise laser processing business.
Basic Information
| Product/Service (We Sell): | Metal Laser Cutting Machine,Laser Cutting Machine,Laser Marking Machine | |
| Number of Employees: | 11 - 50 People |
Trade & Market
| Main Markets: | Eastern Asia Africa Western Europe South Asia Southern Europe Eastern Europe Central America Northern Europe North America Southeast Asia Oceania Mid East South America | |
| Total Annual Sales Volume: | US$1 Million - US$2.5 Million | |
| Export Percentage: | 91% - 100% |
