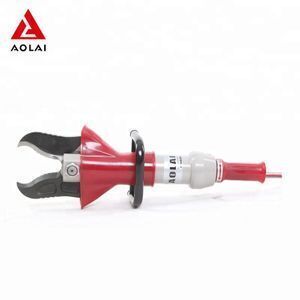

Hydraulic rod cutter for earthquake rescue GYJQ-63-28/220-A

Supplier: Aolai Rescue Technology Co., Ltd.
Region: Shandong, China
Contact: Mr Aolai Rescue
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max. Opening Distance of Blades:	>=220mm;	Port:	Tianjin/Qingdao/Beijing;
Dimension(LWH):	700210165mm;	Certification:	EN13204/CE/ISO;
Weight(working condition):	<=13kg;	Closing Time without Load:	<=30s;
Supply Ability:	1000 Set/Sets per Month;	Max. Cutting Capacity:	Q235Steel 15mm Plate 28mm Bar;
Type:	hydraulic Rescue Equipment;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Color:	Red/Dark Green;	Place of Origin:	Shandong China;
Max. Cutting Force:	390KN;	Packaging Detail:	One set in one standard wooden case.;
Opening Time without Load:	<=25s;

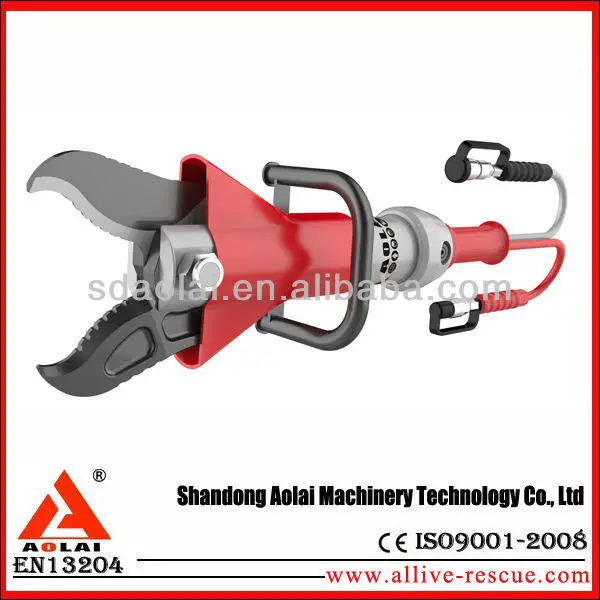

hydraulic rod cutter for earthquake rescue GYJQ-63-28/220-A

a. Trade Terms

FOB Price/unit

Trade Terms

Port of Loading

MOQ

Certificate

0~ 2070 USD

TT/West Union

LC: no less than $100,000

Western Union

Paypal

Sea Port: Qingdao/Tianjin

Air Port: Beijing/Qingdao

DHL/TNT/Fedex: Jinan

1 unit

ISO9001-2008

EN13204

China Top Security Certificate

b.Brief introduction:

This hydraulic rescue cutter is special rescue tool for traffic accident, earthquake and other geological disasters, it can be powered both by hydraulic motor pump and hydraulic hand pump. Our Aolai hydraulic rescue cutter is characterized of compact structure, big cutting capacity and advanced functions.

c.Features:

1. Shearing blade adopts High-quality heat-treated tool steel, with surface anodized, good in wearing resistance

2. Protective cover for main parts to prevent splash during shearing,

3. Bi-directional self-lock function and automatic reset reversing valve make operation convenient and safe.

4. Ergonomically designed, can automatically push material to the biggest shearing strength of blade center.

5. Less opening and closing time guarantee a faster rescue.

d.Technical Parameters:

No.	Item	Specification
1	Model	GYJQ-63-28/220-A hydraulic cutter tool
2	Max. Opening Distance of Cutter Edge	≥220 mm
3	Rated Working Pressure	63Mpa
4	Max. Shear Capability	15 mm(Steel Plate)
5	Q235 materials	28 mm(Circle steel)
6	Max. Cutting Force	390 KN
7	Opening Time without Load(Oil Supplied by Motor Pump)	≤25 s
8	Closing Time without Load(Oil is Supplied by Motor Pump)	≤30 s
9	Weight (Working Mode)	≤13 kg
10	Dimensions LWH	700210165mm
11	Packing Dimension	880405240/25kg

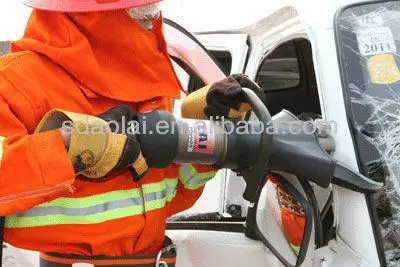

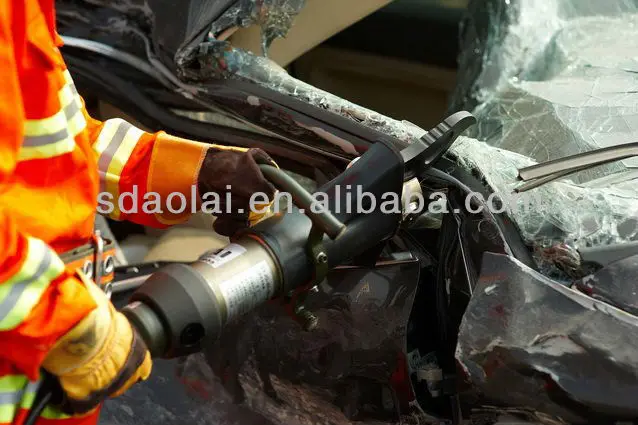

e.Application:

1. Rescue for highway, railway traffic accidents, the earthquake disaster, shipwreck and building collapse

2. Cut off vehicle parts, metal structure, heterogenic steel pipe, steel plate and so on.

f.Warranty:

One year warranty;

Free technical support throughout service time

g. Certificates approved

h.Company overview

Certifications

Our Services

Company Information

Shandong Aolai Machinery Technology Co., Ltd., the ISO9001-2008 verified company, is a professional manufacturer for hydraulic rescue tools, including hydraulic pump, hand pump, hydraulic cutter, spreader, ram, hydraulic combi-tools, hydraulic assisting tools, manual break-in tools etc. emergency and accident & disater rescue equipments.

With advanced production equipments and a workshop of nearly 15,000 square meters, our company yearly produces millions of types of emergency rescue tools, which are mainly used in the accident/disaster rescue by fire bridage, police, high way department and any other government and private organizations.
