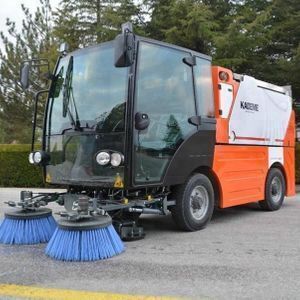

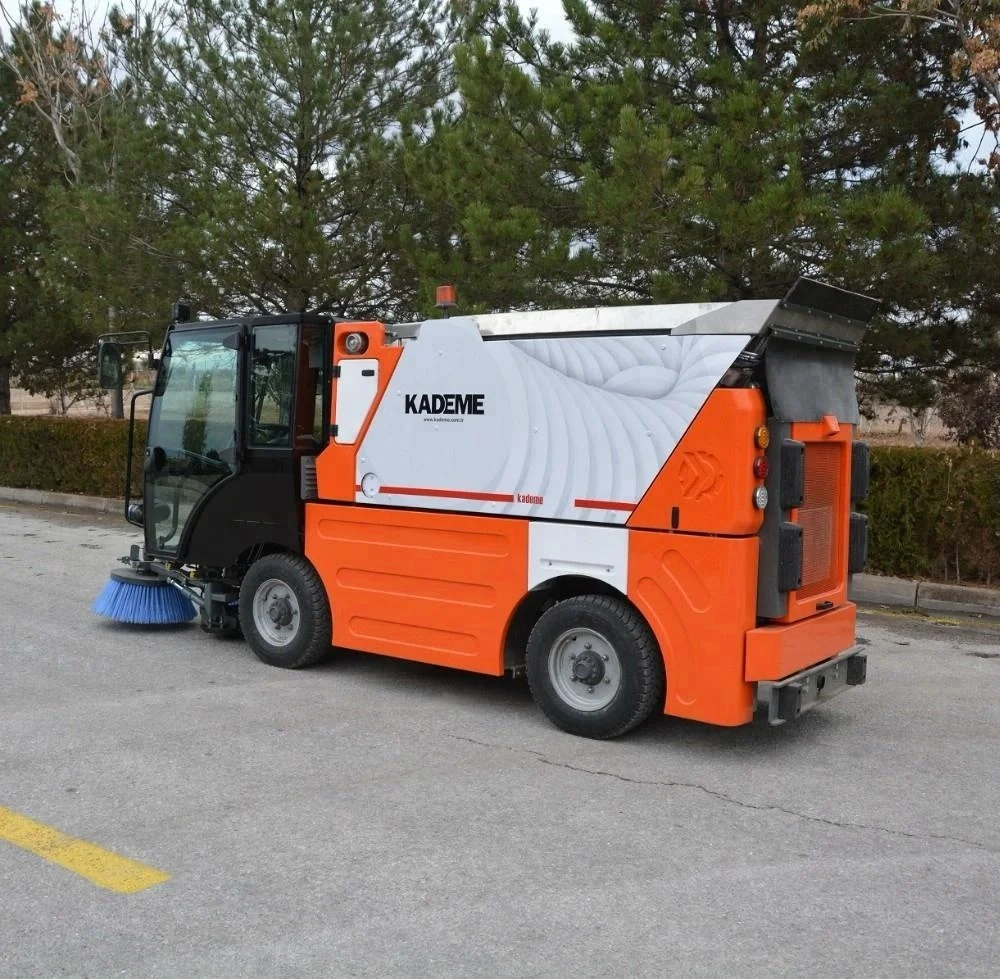

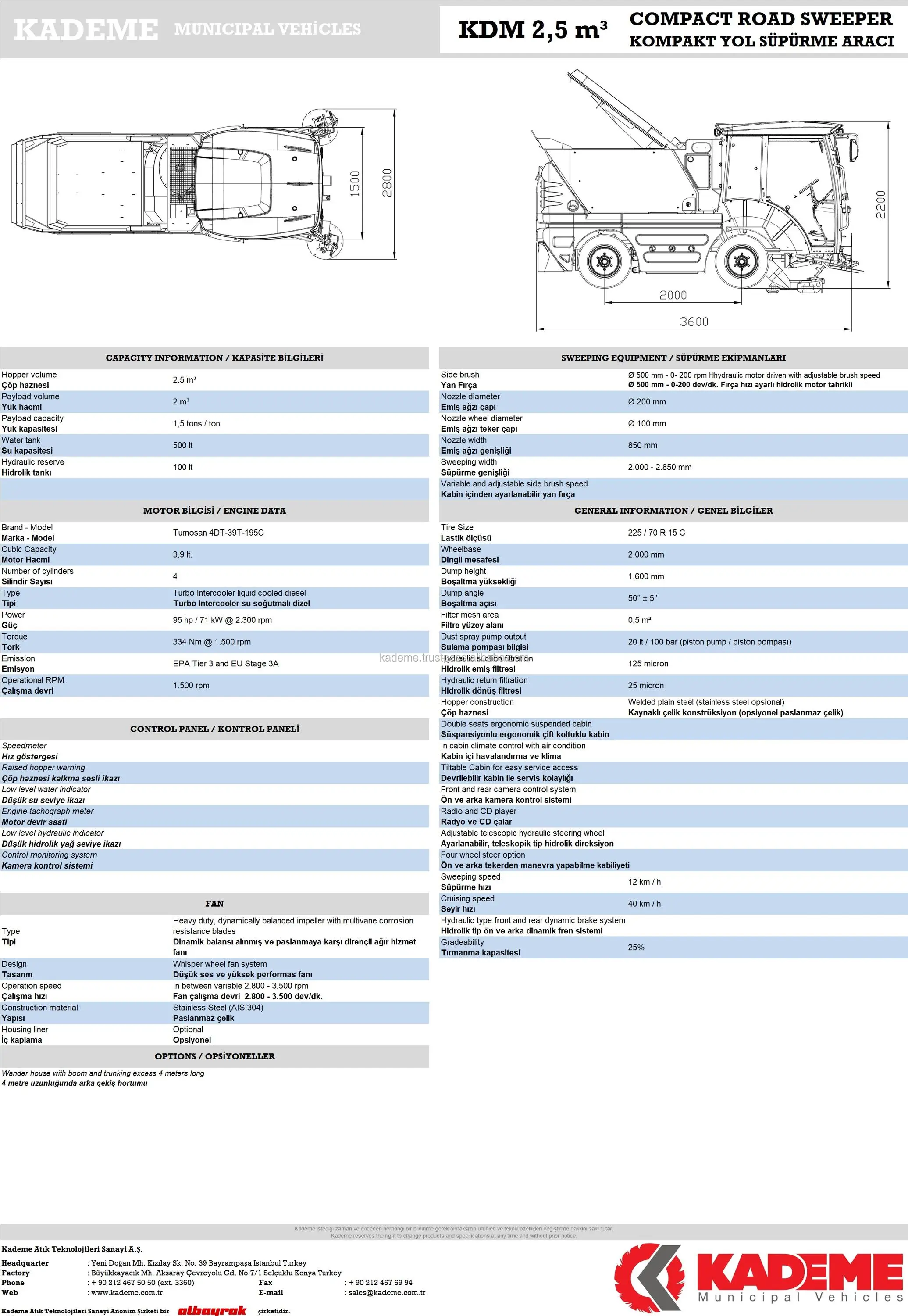

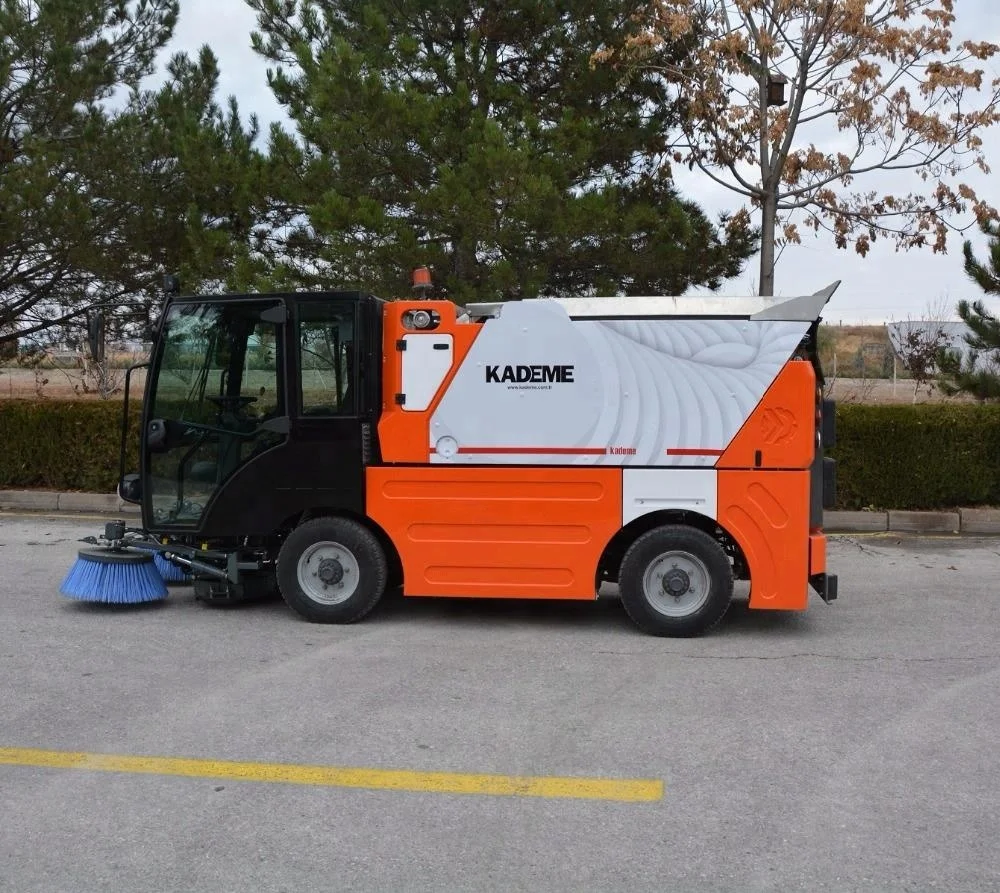

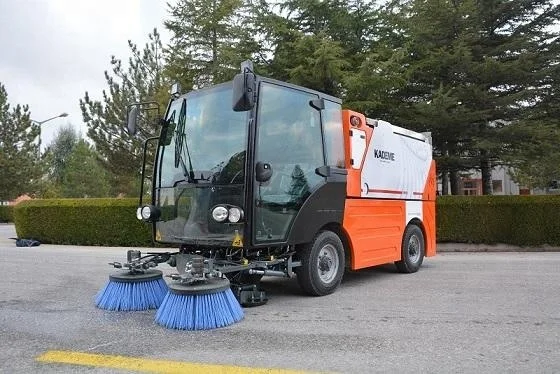

KDM AGA 2.5 cbm City Sweeper Car, Vacuum type Compact Street Sweeper

KDM AGA SERIES
2 M³ HYDROSTATIC COMPACT ROAD SWEEPER
General features of Compact Sweeper vehicle;
Design and manufactured by Turkish Engineers. 90% domestic, local product use rate,
Four-wheel drive and steering capability give the advantage to work in narrow spaces such as parking lots and indoor areas etc.
The wide range of optional equipment such as third brush, snow plows, and salt spreader etc.


CAPACITY INFORMATION
Hopper volume 2 m³
Payload volume 2 m³
Payload capacity 1,5 tons / ton
Freshwater tank 225 lt
Recirculation water tank 225 lt
Hydraulic reserve 62 lt
ENGINE DATA
Brand - Model Tumosan 4DT-41T-105C
Cubic Capacity 4,1 lt.
Number of cylinders 4
Type Turbo liquid cooled diesel
Power 105 hp / 79 kW @ 2.300 rpm
Torque 430 Nm @ 1.500 rpm
Emission EPA Tier 3 and EU Stage 3A
Operational RPM 1.800 rpm
SWEEPING EQUIPMENT

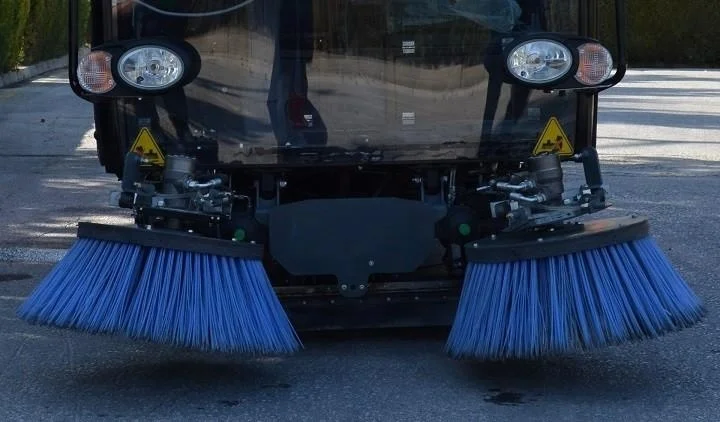

Side brush Ø 720 mm - 0- 100 rpm Hydraulic motor driven with adjustable brush speed
Nozzle diameter Ø 200 mm
Nozzle width 800 x 400 mm
Sweeping width 1.400 - 2.500 mm
Variable and adjustable side brush speed
GENERAL INFORMATION
Tire Size 195 / R 14C 106-104 Q
Wheelbase 2.000 mm
Dump height 1.400 mm
Dump angle 50° ± 5°
Filter mesh area 0,5 m²
Dust spray pump output 11 lt / 4 bar (piston pump)
Hydraulic suction filtration 125 micron
Hydraulic return filtration 10 - 25 micron
Hopper construction Welded aluminum alloy
Double seats ergonomic suspended cabin
In-cabin climate control with air condition
Front and rear camera control system
Radio and CD player
Adjustable telescopic hydraulic steering wheel
Four wheel steer option
Sweeping speed 15 km / h
Cruising speed 25 km / h
Hydraulic type front and rear dynamic brake system
Gradeability 25%
FAN
Type Heavy duty, dynamically balanced impeller with multivane corrosion resistance blades
Design Whisper wheel fan system
Operation speed In between variable 1.600 - 3.300 rpm
Construction Material Stainless Steel (AISI304)
Housing liner Optional
CONTROL PANEL
Canbus control & Monitoring Display
Fresh Water tank level display
Recirculation Water tank level display
Fuel Tank level display
Hydraulic tank level warning
Engine rpm display
Sweeper Brushes rpm display and adjust button
Suction fun rpm display and adjust button
Sweeper Brushes ground pressure display and adjust button
Maintenance Display
Camera System
7" monitor
Rear Camera
Suction nozzle camera
OPTIONS
Wander house with boom and trunking excess 4 meters long

Kademe Municipal Vehicles
KADEME started to manufacture in the machine manufacturing sector in 2011.
It is one of the leading integrated waste management company in the region which is a subsidiary of Albayrak Holding. Our success is driven by our people and their commitment to get results the right way-by operating responsibility, executing with excellence and applying innovative technologies.
We manufacture different size and type of Vacuum Type Road Sweepers, Compact Vacuum Type Road Sweepers, Electric Sweeper, Towed Elevator Type Road Sweeper, Container & Bin Washing Machine and Hydraulic Garbage Compactors.
With the high performance of our equipment and high quality, we are the market Leader and popular company with an excellent track record for the best customer satisfaction. We manage manufacturing, marketing and after sales service activities successfully in keeping with international norms. We believe in achieving the quality production and perfection that meets all expectations of customers at a very competent price Kademe, who strives for reaching excellence in the products offered, continues its activities in the safe and environmentally responsible manner with all the customers, supplier and partners.

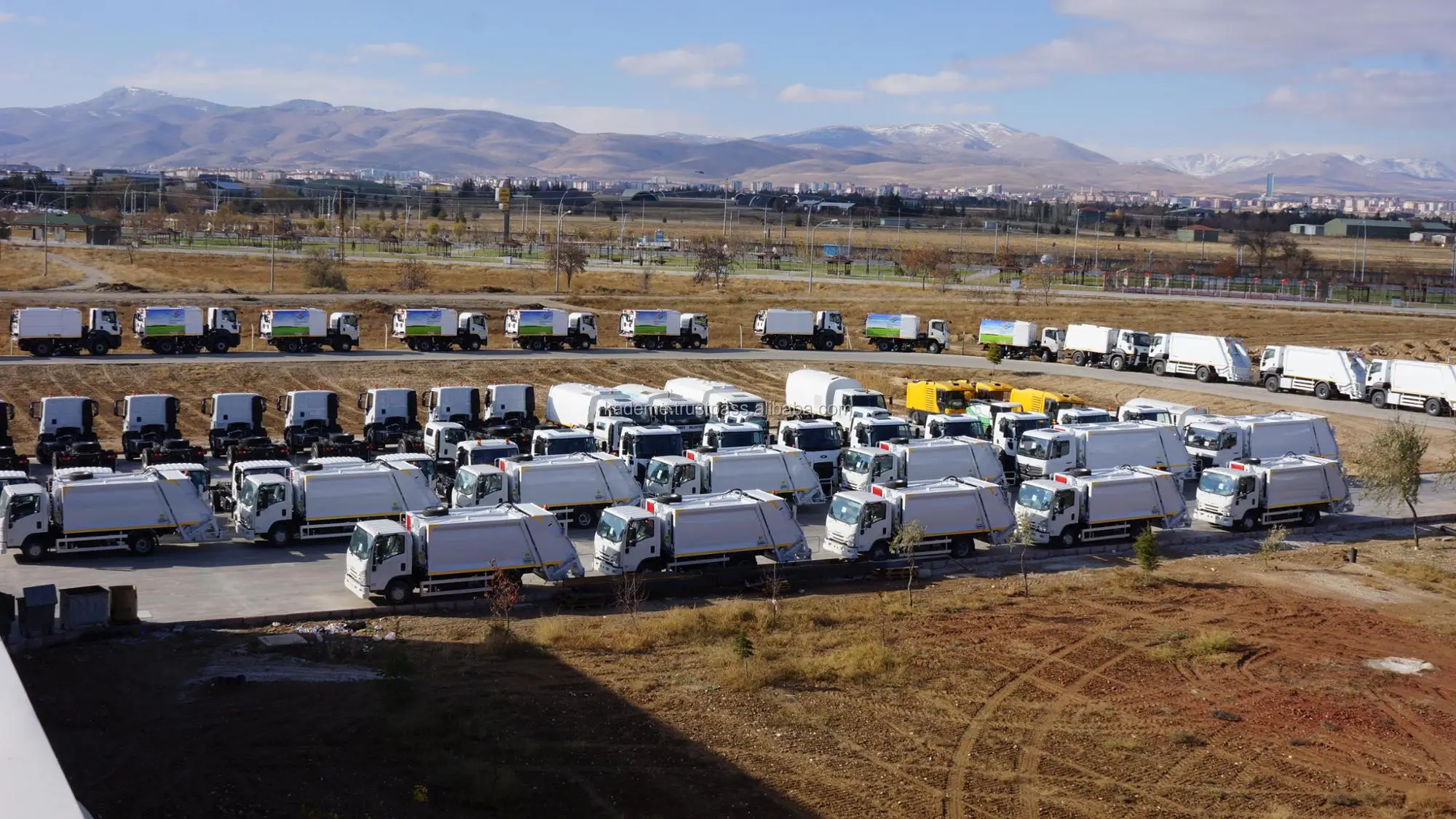

Kademe Company's headquarter located in Istanbul and production line is in Konya industrial zone within 20.000m² closed and 1.000.000m² open premises.

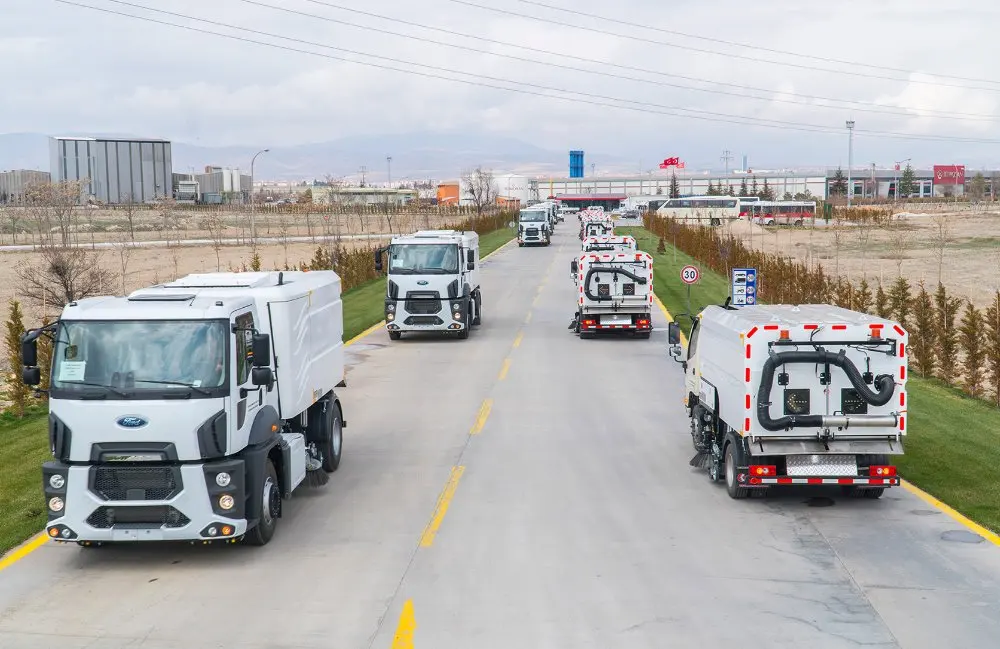

VACUUM TYPE ROAD SWEEPING MACHINES from 3.5 m3 To 9.5 m3

KDM 2,5 M³ COMPACT ROAD SWEEPER VEHICLE

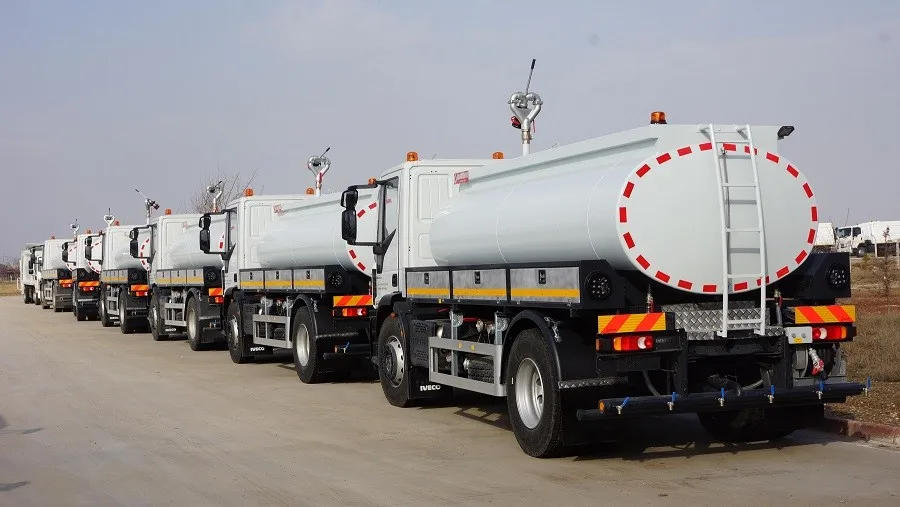

WATER TANKER for Street Cleaning

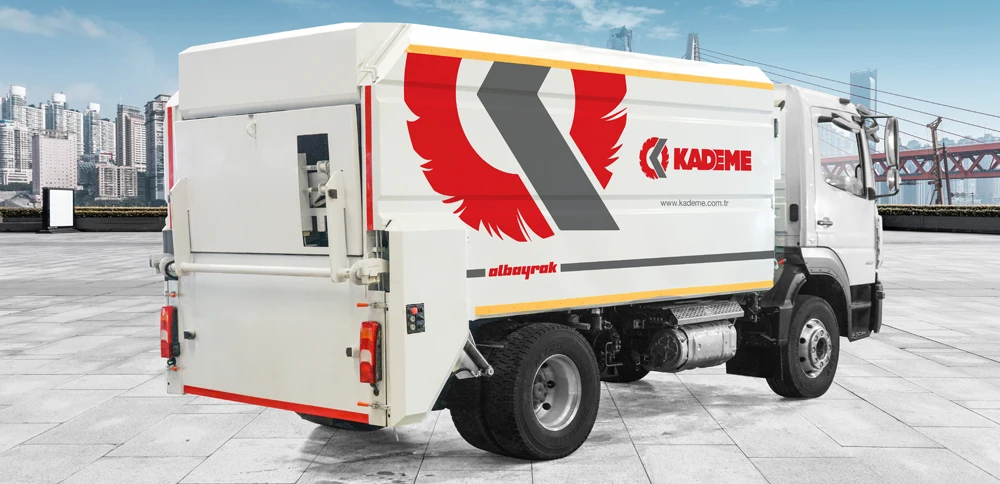

HYDRAULIC GARBAGE COMPACTOR from 6 m3 To 25 m3

REFUSE CONTAINER WASHING AND DISINFECTING VEHICLE

CELIK 2000 TRACTOR TOW TYPE ROAD SWEEPER

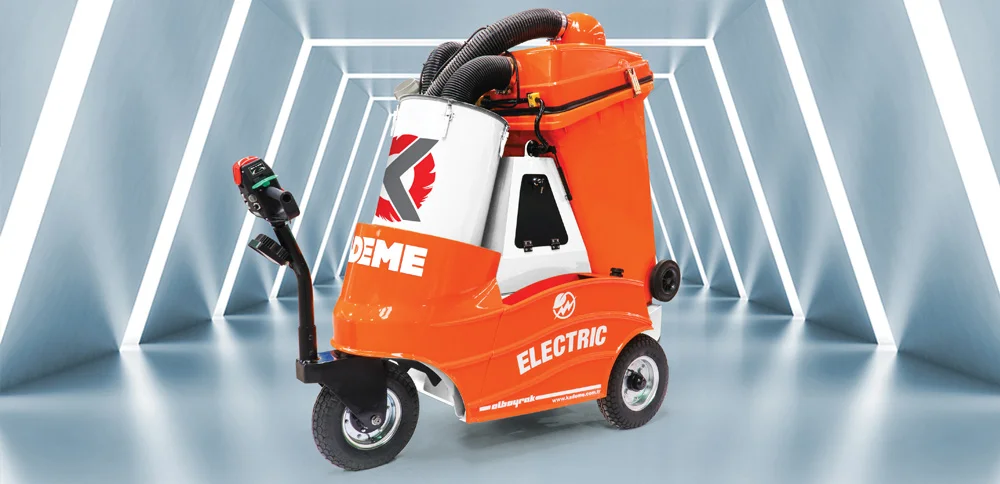

FTH 240 TOWER TYPE ELECTRIC VACUUM SWEEPER

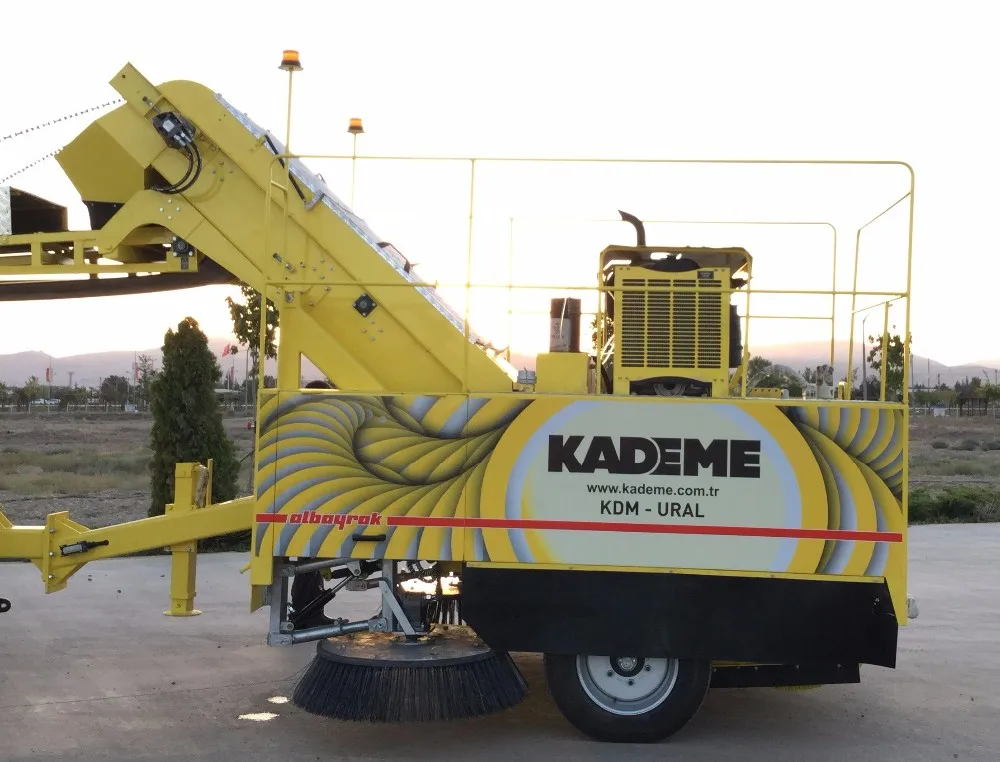

KDM URAL TOWED TYPE ELEVATOR ROAD SWEEPER
