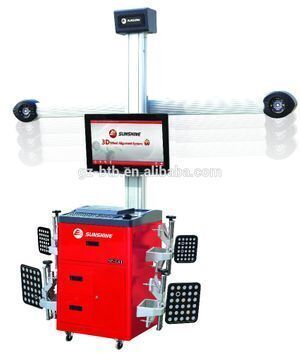

3D Four Wheel Alignment with CE

Supplier: Guangdong Jingzhongjing Industrial Painting Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Lee Phebe
Price: $3999.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	12 Months;	Port:	Guangzhou/Shenzhen;
Supply Ability:	500 Set/Sets per Month;	Brand Name:	sunshine;
Place of Origin:	China;	Delivery Detail:	20 days;
Payment Terms:	L/C,T/T;	Packaging Detail:	Packing: 4cartons per set cubic:;2.5cbm;
Model Number:	SP-G6T;

3D cameras alignment—Based on the car and not influenced by the platform

Measurement system—equipped with double digital cameras and four target disk, supplying revolutionary measurement mode

Target disk—There is no electronic components, so the wheel alignment will not has a component failure problem.

Equipment Calibration - once calibration before delivery, workable immediately after installation, no need for periodic calibration

Measurement progress—no need to compensate for steel ring , the precise eccentric compensation will be just once pulling or pushing the car back and forth

Software system——Easy to operate, complete conventional basic parameters within two minutes ,significantly faster than conventional aligners

Daily Maintenance—Easily maintenance , download and upgrade freely for the model data

Related parameters:

Measurement project	Accuracy	Measurement range
Display accuracy	1´/0.01mm
Camber	±2´		±10°
Caster	±6´		±20°
Kingpin Inclination	±6´		±20°
Toe-in & Toe-out	±2´		±20°
Set back	±2´		±5°
Thrust angle	±2´		±5°
Wheel Deviation	±2mm
Axis Deviation	±2mm

G6T 3D alignment

with varaible-height adjustment post by electricity

camera automatic tracking target plate by its height

Standard Configuration:

small compact cabinets, camera mounted stent economic criteria, DELL branded computers, Canon printers, target disk, Pylon, brake holder, steering wheel holder, wedge-shaped pads, turntable, transition blocks of turntable

Software Features
Basic Functions:

parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle

Extension Functions:

axis deviation measurement, wheel deviation measurement, animation, single-round measurements,vehicle lift measurement, steering wheel adjustment,alignment platform horizon measurement

Net weight:320kgs, Gross weight:370kgs
