1.5 T /H Double Screw Juicer Machine For Pomegranate Juice Producing Extractor

Product details
Certification:CE ISO;After-sales Service Provided:Free spare parts;
Material:304 Stainless Steel;Name:Fruit Juicer Production Line;
Warranty:1 Year;Brand Name:BoShi;
Packaging Detail:1.5 T /H Double Screw Juicer Machine For Pomegranate Juice Producing Extractor HS code:8435100000 Packing size:2500*1100*800 mm This double screw juicer will be packed with plywood box or will be packed as required;Raw material:Water,Corn,Fruit,Vegetables,Wheat,Nuts,Soybean,Flour;
Product name:Industrial Vegetable Press Machine;Supply Ability:20 Piece/Pieces per Week Double Screw Juice Extractor;
Item:Automatic Commercial Cold Press Juicer;Dimension(L*W*H):2200*900*600mm;
Usage:Juicer Extrator;Application fields:Snack food factory,Commercial catering,Dairy products factory,Fruit processing plant,Winery,Vegetable processing plant,Beverage Factory,Frozen food Factory,Restaurant waste food process;
Capacity:1.5t/h;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Machinery Function:Squeezer/extractor/press/dewater;Output product name:Fresh pressed juice;
Place of Origin:Henan China;Power(W):5.5KW;
Application:Fruit;Model Number:BS-JLY1.5;
Feature:Multifunctional Fruit;Voltage:220V/380V;
Port:Shanghai/Guangzhou/Qingdao;Keywords:Pomegranate Fruit Juicer Extractor;
Function:Extracting;Weight:800KG;

1.5 T /H Double Screw Juicer Machine For Pomegranate Juice Producing Extractor

Product Description

Double Screw Juice Extractor introduction

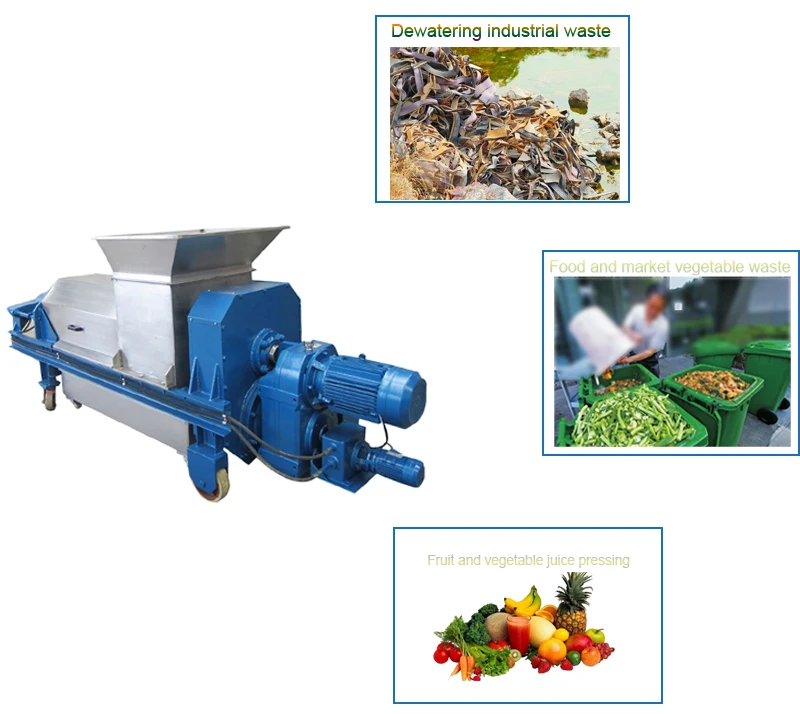

We are factory major in all kinds of industrial double screw juicer and single screw juicer for over 20 years  in China. This equipment can be used for the following area

A:Used in food industrial:Fruit and vegetable juice pressing,grain wine separate,other food and water separate.

B:Used in agriculture waste area:Food waste and market vegetable waste dewatering,grass,wheatgrass dewatering,agriculture waste,cassava waste,and other residues. C:Dewatering industrial waste:Dewater leather waste,cloth waste,oil residues waste,herb residues waste,wine waste,Vinegar dregs,Soy sauce residue,etc

Machine Structure

There are machine rack, feed section, press section, transmission parts, electric parts.  Our machine has high strength, high load pressure, no deformation, clogging, corrosion resistance,wear resistance, non-skid, easy maintenance, long service life characteristics.

Machine Features

1.Double screws design, high efficiency in extracting.

2.High stainless steel material, all food touch parts are made of stainless steel

3.Manual or hydraulic system

4.Four trundles, easy to move

5.Stainless steel juice collect container

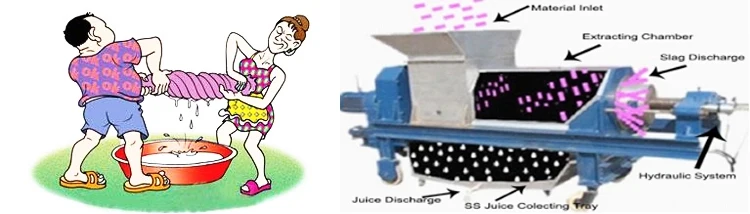

Machine Theory

All main parts are made of SUS 304.
Two screw rotate towards to the joint parts, strong power and high juice(liquid)  yield,
max upto 75% depends on different raw materials, machine working theory like this
Parameter

 For this double screw juicer, all details can be customized as required

Just le  us know your material and capacity we will send you the best design and solution

Model

JLY1.5

JLY5

JLY10

JLY30

Treatment Capacity

1-1.5ton/h

5ton/h

10ton/h

30Tonne/H

Main Parts Material

All main parts are made of high quality Stainless Stell 304

Motor Power

5.5Kw

7.5Kw+0.37Kw

11Kw+0.37Kw

18.5Kw + 1.5Kw

Discharge Pressure

Manual Adjustment

Manual Adjustment / Hydraulic System Adjustment

Sieve Diameter

270mm

420mm

510mm

590mm

Weight

800kg

2000kg

2950kg

5000kg

Dimension

2200*900*600mm

3580*1000*1470mm

3740*1100*1650mm

5500*1200*1650mm

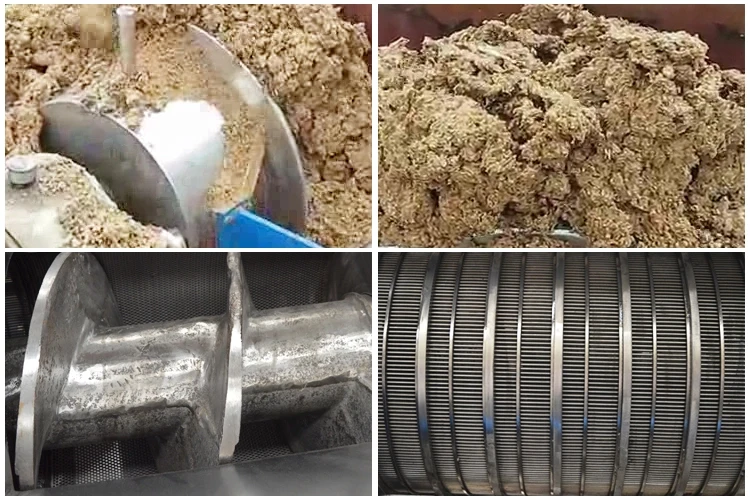

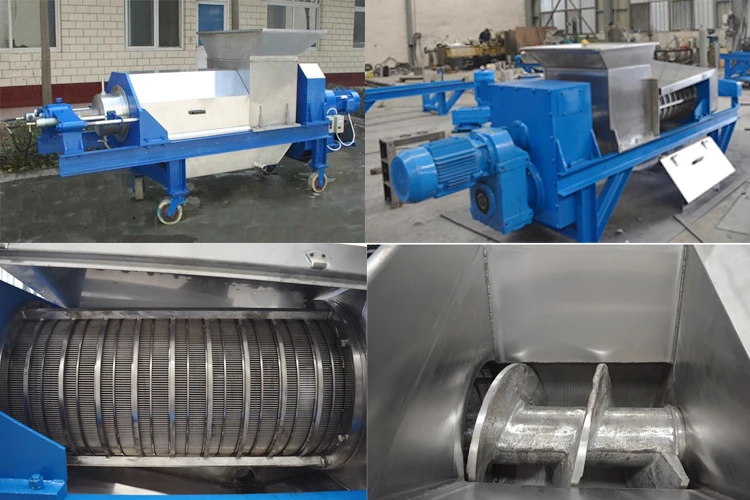

Detailed Images

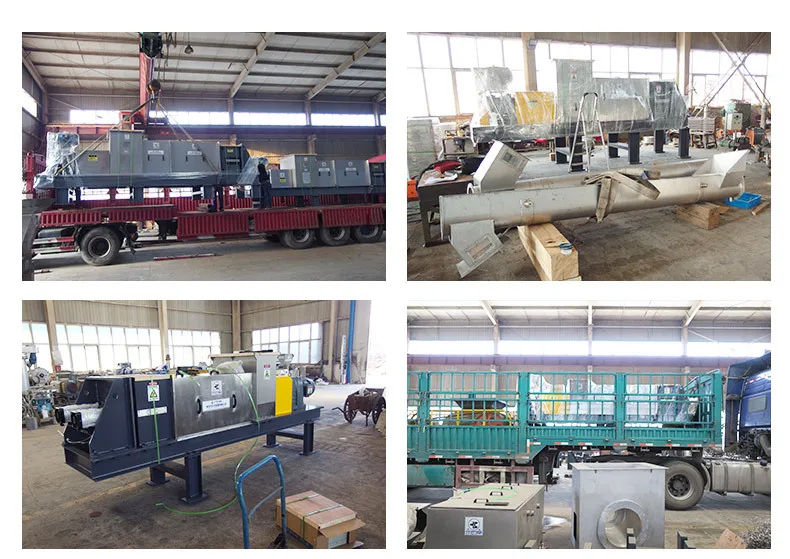

Packaging & Shipping

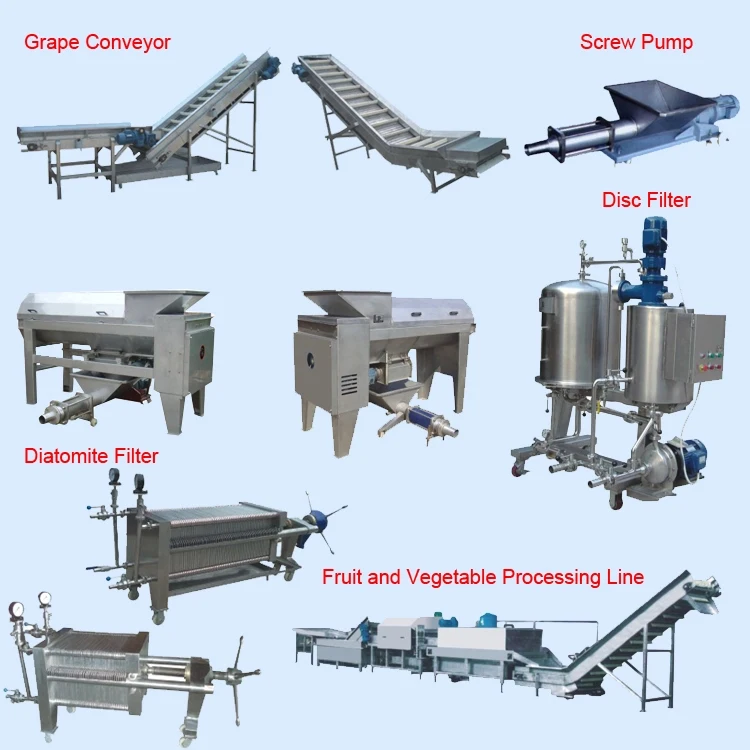

Related Products
