Double100 24 inch UV lamp photo paper varnish coating machine 19

Supplier: Qihe Shuangbai Digital Photographic Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Master
Price: $1900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Application:	Textiles;	Certification:	CE/ISO9001;
Voltage:	220V;	Condition:	New;
Dimension(LWH):	190cm110cm110cm;	Single package size:	200X120X120 cm;
Warranty:	1 Year;	After-sales Service Provided:	Online support,Video technical support;
Place of Origin:	Shandong China;	Packaging Type:	Case;
Driven Type:	Electric;	Weight:	250kg;
After-sales Service Provided:	Engineers available to service machinery overseas;	Automatic Grade:	Semi-Automatic;
Brand Name:	DOUBLE100;	Packaging Material:	Wood;
Package Type:	200cm120cm120cm;	Selling Units:	Single item;
Type:	Coating Machine;	Key Selling Points:	Easy to Operate;
Single gross weight:	350 KG;	Applicable Industries:	Printing Shops,Advertising Company;

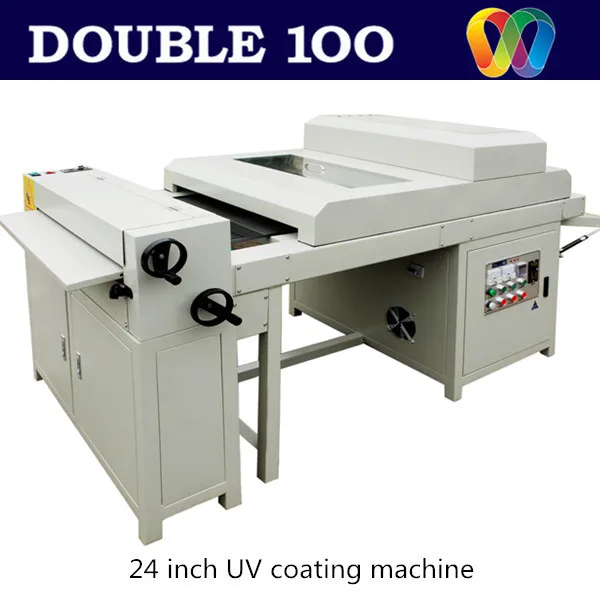

24Inch UV coating machine :

Coating mainly on:laser printing,ink printing photo paper,art paper,gum stock.

Characteristics:

1.the photo coated can be dustproof,waterproof,scratch-resistance ,UV-resistance.

2.UV liquid can be attached to the paper,can not fall off once solidified by UV lamp.

3.The coating speed is fast, about 150-500sqm

4.The coat is low about 0.06USD, and the thickness of uv can be changeable.

5.Max. Coating width is24inch

6. The machine is free of cleaning, and can supplementing the uv liquid automatically

7.The device of powering off automatically when the temperature is too high, the operation is safe

8.Using superior lamp with 365 wavelength ensure to solidify quickly and thoroughly.

Mode	DB650 UV coater
Size	24 inches
Coating width	630mm
Coating thickness	0.2~2mm
Coating speed	100-300m/h
Voltage	AC220V/50HZ
Max power	4.4KW
Dry system	ultraviolet light

Detail :

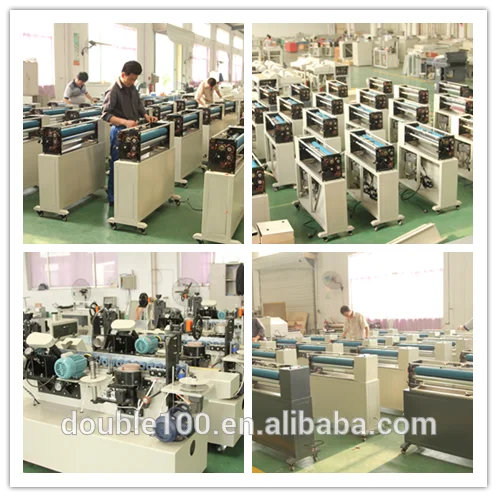

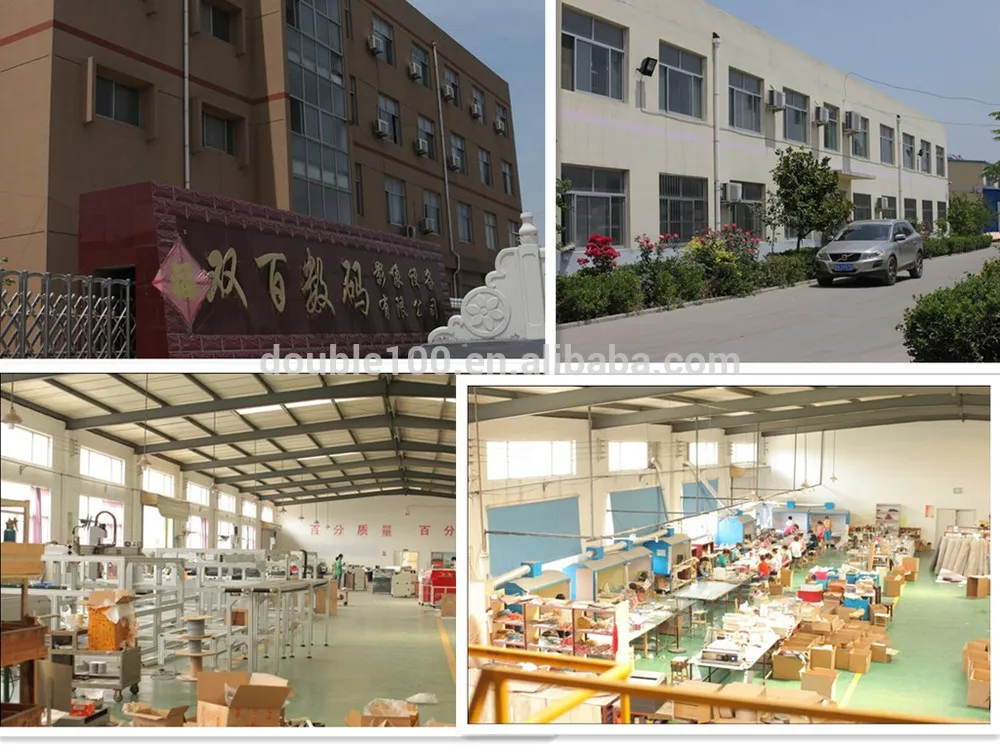

Our factury :

We are the biggest and professional manufacture in the album making industry which has own the biggest market shares in China, also we have agency in more than 30 country, and export more than 90 country.

With 243employee, more than 1000sqm laboratory building, 10000sqm equipment production plant and independent material production base. 2000sqm for album, frame production

Various album making machine and all related album making, auto-folding and creasing machine, coating machine and so on……

PVC, PET, CARD BOARD and all related album, frame materials……
