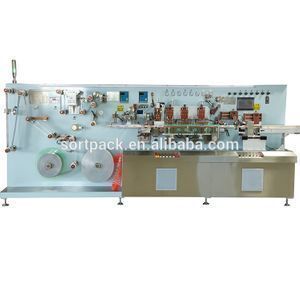

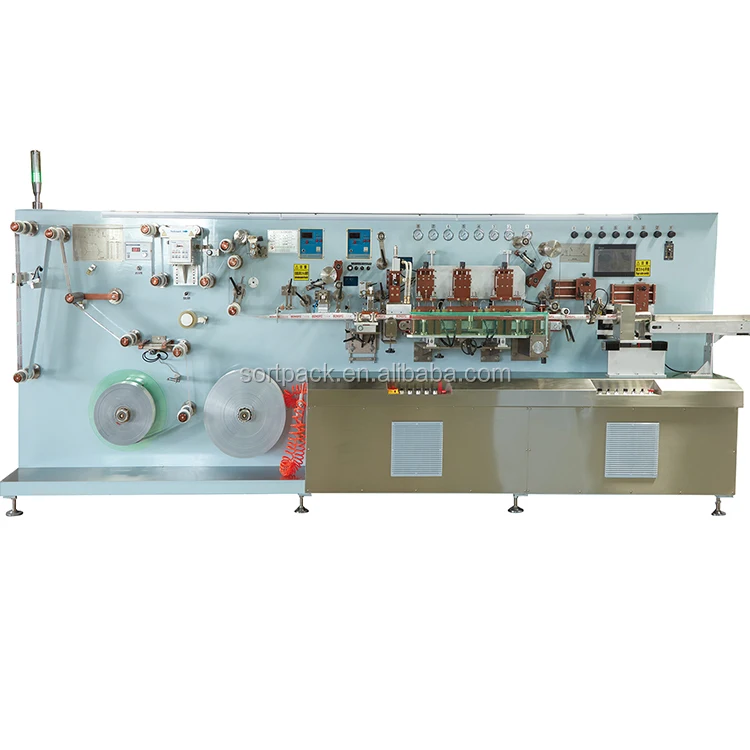

Laminated Tube Making Machine ABL Tube and PBL Tube

Supplier: Suzhou Sort Packaging Technology Co., Ltd.
Region: Jiangsu, China
Contact: Mr Andy Mao
Price: $55000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Brand Name:	SORT;	Warranty:	1 Year;
Place of Origin:	Jiangsu China;	Port:	Shanghai;
Function:	Soft Tube Making;	Type:	Full-auto;
Supply Ability:	5 Set/Sets per Month;	Application:	Plastic Laminated Material;
Product name:	Tube Extrusion Machine;	Usage:	Plastic Forming Machine;
Packaging Material:	PE Laminates;	Packaging Detail:	wooden box;
Voltage:	380-420V;	Dimension(LWH):	46008001800mm(including feet);
Speed:	150pcs/min;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Payment Terms:	L/C,D/A,T/T,Western Union,MoneyGram;	Automatic Grade:	Automatic;
Condition:	New;	Weight:	2500KG;

Product Description

Brief Introduction

This machine is mainly used in all plastic, and aluminum-plastic laminated sheets welding.

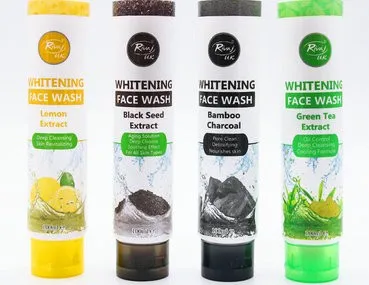

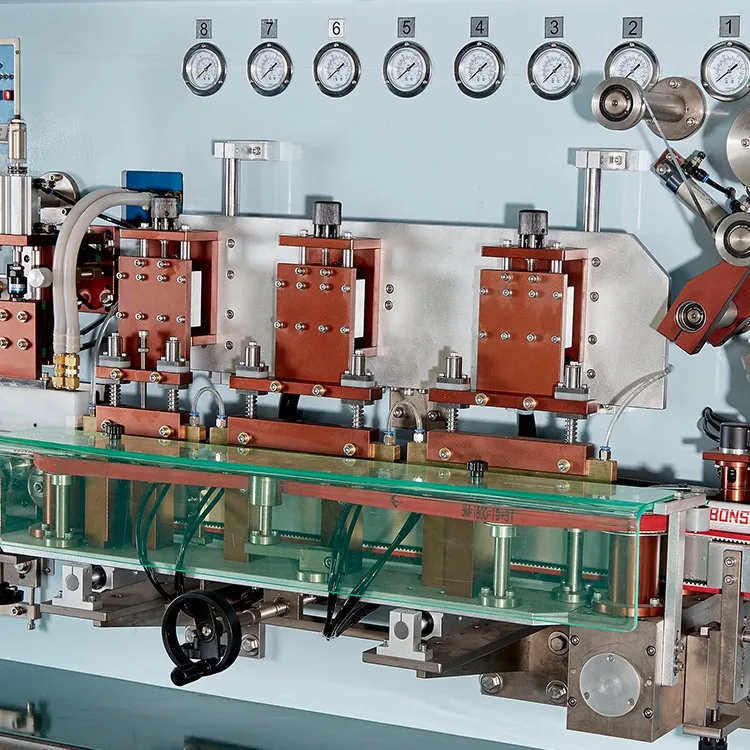

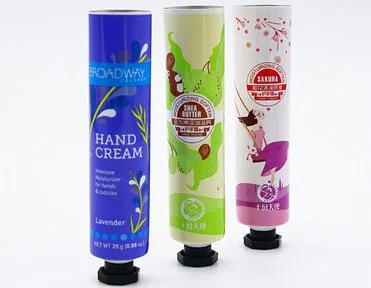

It uses double hight frequency, double steel belts welding and cutting, and widely applied in the production of packaging tubes for variours cream and lotion products of toothpaste, cosmetics, pharmacy and food industry.

Main Technical Parameters
Tube diameters	Ø12.7mm--Ø60mm
Tube length	20--400mm
Tube length error range	±0.3mm
Tube extruding speed	30--150pcs/min(according to tube diameters)
Total power consumption	17kw (7kw in running)
Power supply	380V--420V, 50HZ
Pressure of compressed air	0.6--0.8MPa
Pressure of cold water	0.25MPa
Flow of cold water	2--5L/min
Temperature of cold water	<40 ℃
Machine dimension(LWH)	46008001800mm(including feet)
Weight	approx. 2500kg

Main Features

1)Used for ABL web and PBL web both
2)Web feeding unit and automatic trimming

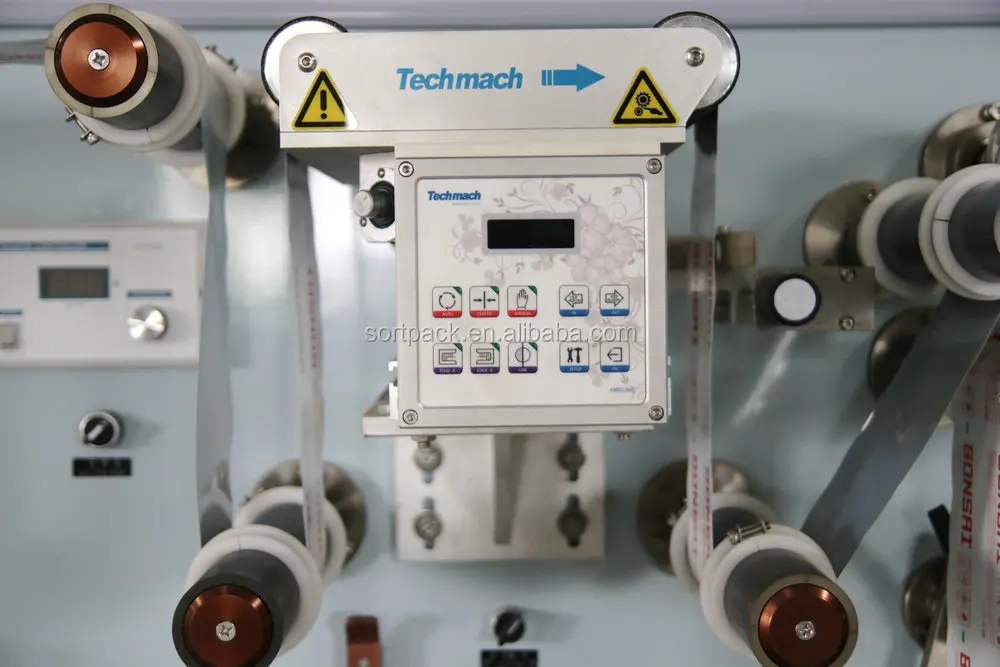

3)Automatic deviation-checking equipment
4)Machine none stop of changing web rolls
5)Ring cutting controlled by Servo cutter, small error
6)PLC controlling, faults alarming on the display
7)Data setting on the display, operation easy and reliable

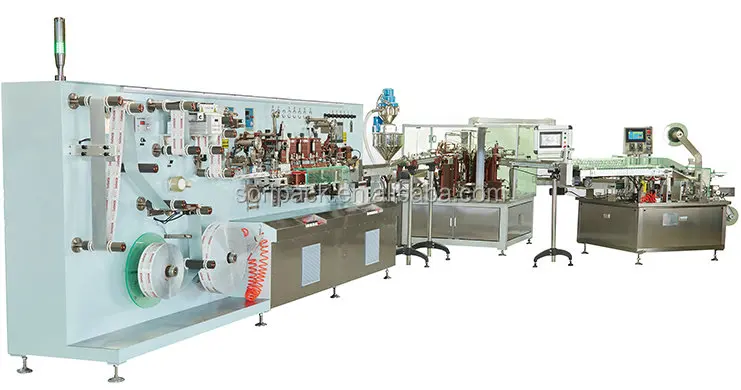

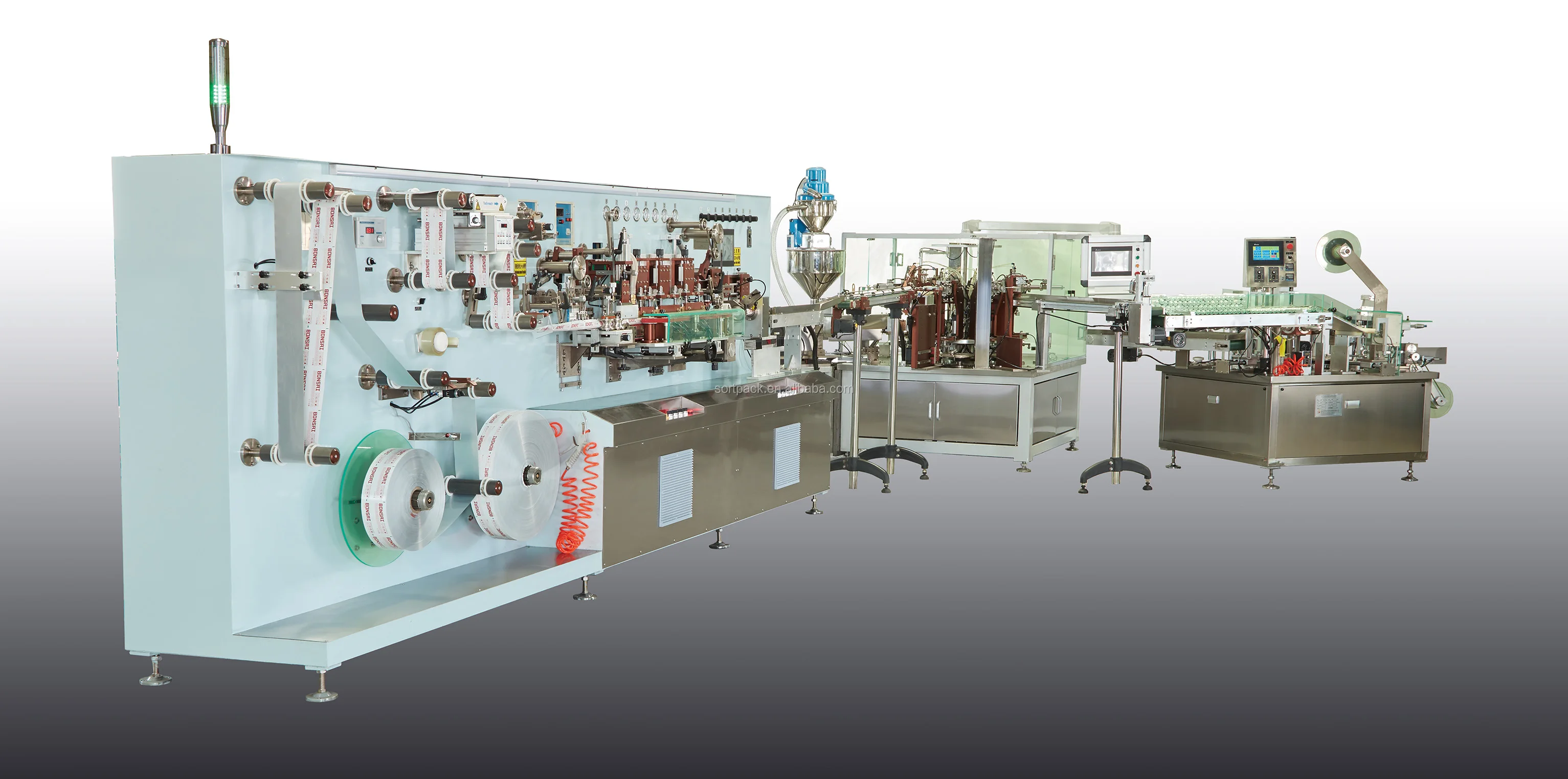

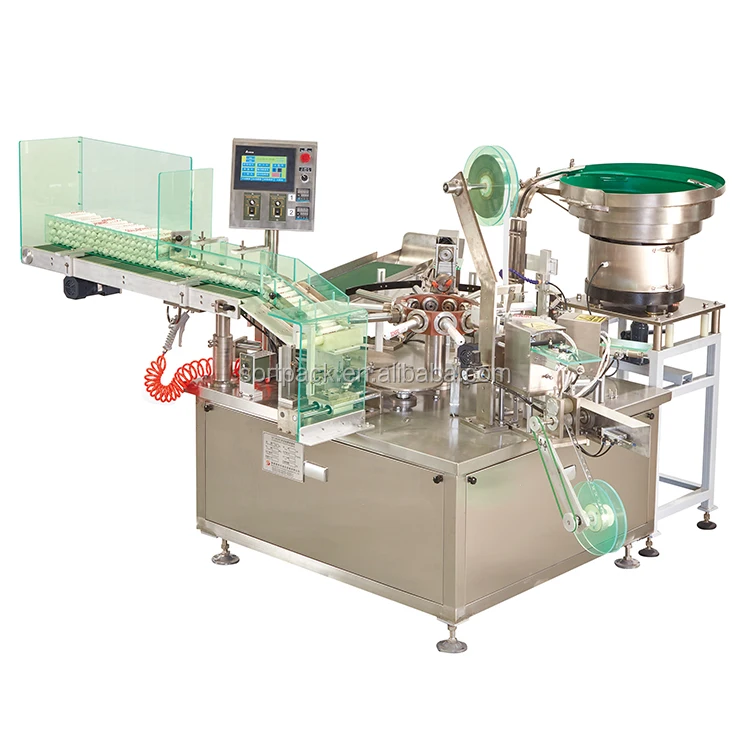

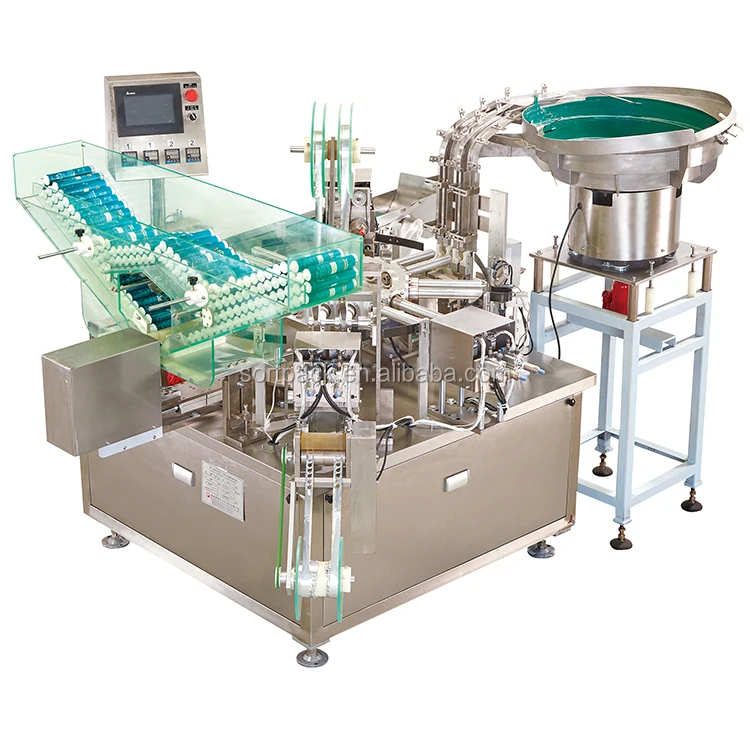

Full Automatic Line
