Water-cooled 4 Stroke Diesel Engine Manufacturers Assembly
-
Supplier: Shanghai Kaixun Engine Co.,Ltd -
Region: Shanghai, China -
Price: $5000.00 /unit -
Min. Order: 1 unit
| Aspiration: | Turbocharged with intercooled; | Max Power: | 441kw; |
| Noise: | 117dB; | After-sales Service Provided: | No overseas service provided; |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Displacement: | 14.9L; |
| Supply Ability: | 5000 Unit/Units per Year; | Smoke: | ≤3.0 FSN; |
| Cylinder: | 6-cylinder; | Weight: | 1250kg; |
| Applicable Industries: | Main power for generator set; | Place of Origin: | Shanghai China; |
| Brand Name: | KAI-PU; | Quality: | High Performance; |
| Packaging Detail: | plywood case; | Dimension(L*W*H): | 1715*795*1245; |
| Condition: | New; | Color: | Customers' Requirement; |
| Port: | Shanghai/Qingdao; | Cold Style: | Water-cooled; |
| Fuel Consumption: | ≤198g/kw.h; | Cylinder: | Multi-cylinder; |
| Warranty: | 1 Year; | Rated speed: | 1500/1800rpm; |
| Start: | Electric Start; | Stroke: | 4 Stroke; |
| Certification: | ISO9001; |

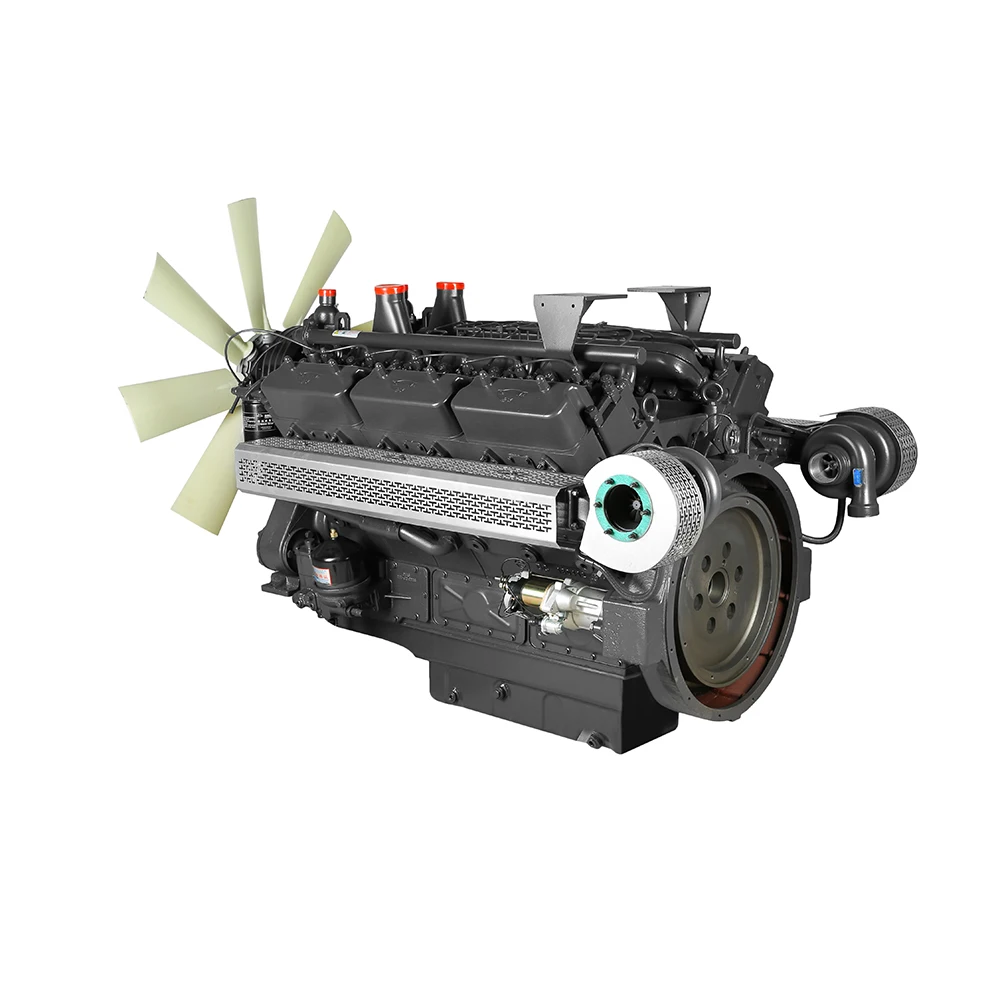

KP441
Shanghai kaixun series diesel engine is a new type of power generation diesel engine which is improved on the basis of the original series 135 series.
The air intake system is optimized in structure, the appearance of pipeline is simplified, and high-grade vehicle paint is selected. The appearance is more compact and beautiful.
Equipped with oil and water separator, system alarm self-protection device and oil pump, making the diesel engine application more safe, reliable and convenient.
Adopting high pressure and air medium cooling technology, equipped with special high pressure oil pump, porous low pressure inertia injector and electronic governor, it can atomize well and burn well , reduce noise and save energy and environmental protection.
| Engine Specification | Model | KP441 | |
| Number of cylinders | 6L | Cylinder bore*piston storke (mm) | 135*168 |
| Rating (KW) | 441 | Generator set rated power (KW) | 350 |
Rated speed (r/min) | 1500/1800 | Power Output Interface | 1#-14 |
| Fan power (KW) | 13.32 | Noise(dB) | ≤117 |
| Smoke(FSN) | ≤2.0 | Displacement (L) | 14.9 |
| Compression ratio | 17.73 | Intake mode | Turbocharged |
| Air combustion (m3/h) | 24.8 | Exhaust Flow (m3/h) | 3940.8 |
| Exhaust gas temperature (.C) | ≤600 | Fan exhaust flow (m3/s) | 10.8 |
| The total capacity of the cooling fluid(L) | 26.7 | The maximum water temperature(.C) | ≤96 |
| Thermostat range (.C) | 78 | The maximum oil temperature (.C) | ≤96 |
| The total capacity of lubricating oil(L) | 34 | Minimum fuel consumption(g/KW.H) | ≤198 |
| Specific oil consumption (g/KW.H) | ≤2.0 | Flywheel teeth | 125 |

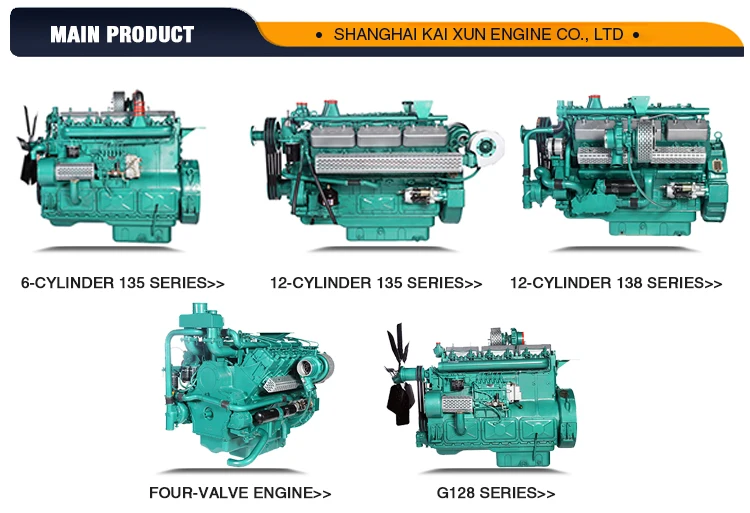

Shanghai Kai Xun Engine Co., Ltd specializes in the R&D, production and sales of 135, 138 diesel engine and Integrated Internal Combustion Engine. Founded in the 1990s with more than 20 years’ history of production, sales and research and development.Kai Xun products are divided into two serials, 6- Cylinder engine and 12- Cylinder engine. According to the bore size, it is further classified into two categories, 135MM and 138MM. In light of the stroke, Kai Xun offers 150, 155, 158, 160, 168 models and other varieties with the power coverage ranging from 150 KW to 1200 KW.
1. How about your delivery time?
Generally, it will take 15 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
2. What is your terms of packing?
Generally, we pack our goods in wooden case.
3. What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages.
4. What is your terms of delivery?
EXW,FOB or negotiate decisions.
5. How do you make our business long-term and good relationship?
We keep good quality and competitive price to ensure our customers benefit ;
We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
-
