F6-12M Miniature Thrust Ball bearing with grooved raceway 6x12x4.5mm
-
Supplier: Nanjing Halinte Bearing Co., Ltd. -
Region: Jiangsu, China -
Contact: Mr Huaili Kang -
Price: $0.20 / >=100 pieces -
Min. Order: 100 pieces
| Bore Size: | 1 - 6 mm; | CLEARANCE: | C0 C2 C3 C4 C5; |
| MMaterial: | Chrome Steel GCr15; | Packaging Detail: | thrust bearing 51430: 1.Commercial packaging: 1pc/plastic bag + color box + carton + pallet; 2.Industrial packaging: a). plastic tube + carton + pallet; b). plastic bag + kraft paper + carton + pallet; 3.According to the requirement of customer.; |
| Brand Name: | NJHLT; | Model Number: | F6-12M; |
| Number of Row: | Single Row; | Structure: | Thrust; |
| Lubrication: | Grease; | Hardness: | HRC58-64; |
| Port: | QINGDAO; | WEIGHT: | 0.1kg; |
| Size: | 6x12x4.5mm; | Product name: | Axial Micro Thrust Ball Bearing; |
| Vibration: | Z1V1 Z2V2 Z3V3 Z4V4; | Material: | Chrome Steel; |
| Payment Terms: | L/C,D/A,D/P,T/T; | Seals Type: | Open and sealed; |
| Type: | Ball; | Outside Diameter: | 1 - 12 mm; |
| Place of Origin: | Jiangsu China; | Service: | OEM Customized Services; |
| Precision Rating: | P0/P6/P5/P4/P2; | Supply Ability: | 150000 Piece/Pieces per Week; |

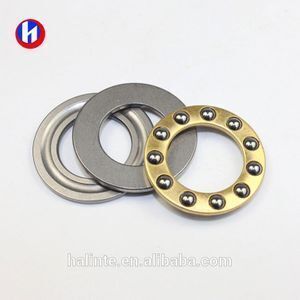

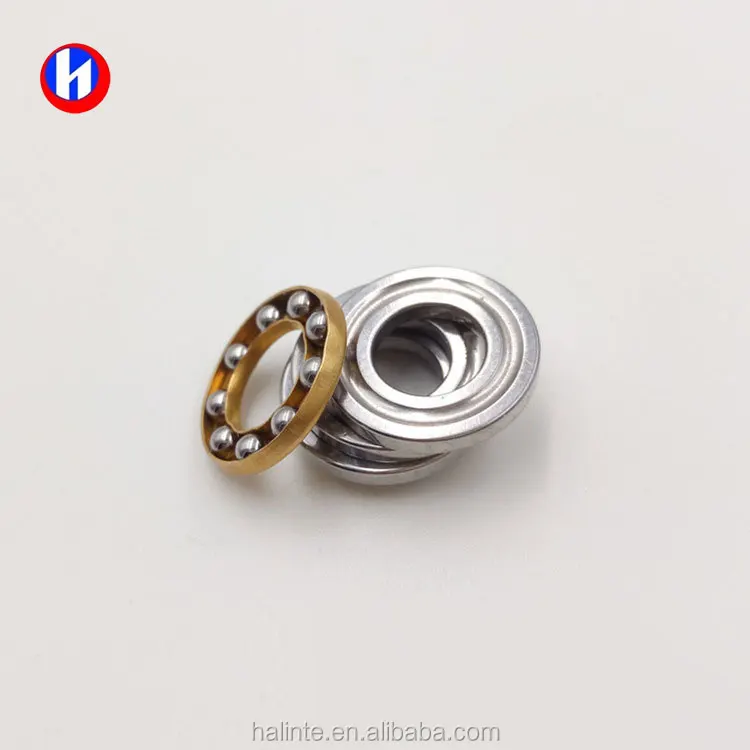

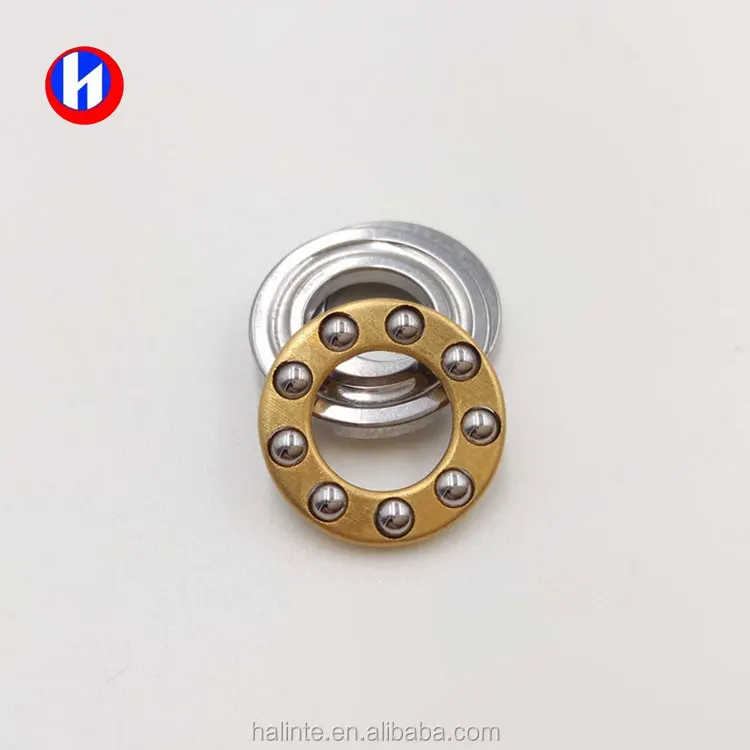

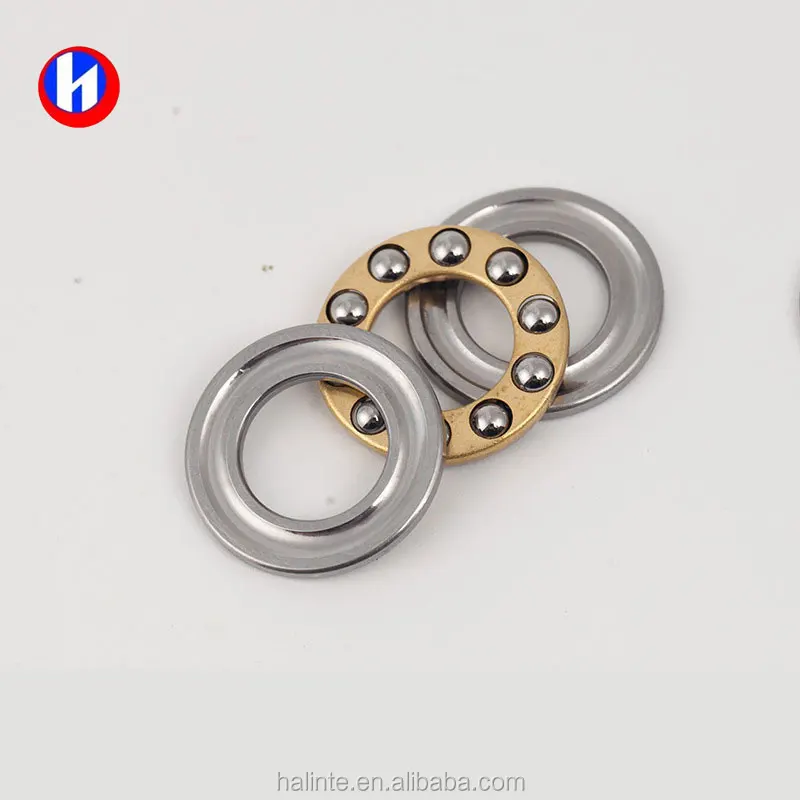

F6-12M Miniature Thrust Ball bearing with grooved raceway
thrust ball bearing consist of three parts, a shaft and housing washer that have annular grooves in them and a caged ball bearing assembly that is sandwiched in between them. Assembly and mounting is a simple operation as the parts are separate. They support axial loads in one direction. Clearance is provided in the bore of one of the raceways to allow for alignment.
| Model Number | thrust ball bearing F6-12M |
| Own Brand | NJHLT |
| ID*OD*W(mm) | 6x12x4.5mm |
| Net weight(kg) | 0.1kg |
| Seals type | Open |
| MOQ | 100 PCS |
| Rings Material | Stainless steel |
| Cages Material | steel |
| Quality standard | ISO9001:2008 SASO CE PVOC |
| Precsion | P0,P6,P5,P4 ABEC-1,ABEC-3,ABEC-5 etc |
| Clearance | C0,C1,C2,C3,C4,C5 |
| Noise | Z1,Z2,Z3 |
| Vibration | V1,V2,V3 |
| HRC | 58-62HRC |
| Tolerance Grade | GB/T307.1-205 |
| Delivery time | 7-25 days |
| Payment term | A:30% TT in advance,and balance against BL COPY B: 100% LC AT SIGHT |
| Services | OEM,ODM,OBM Services |
| Packing | Single box,tube packing,industrial packing or according to customers' requirement |
| Main Market | Asia,Europe,America,Africa,Middle East,Australia etc. |

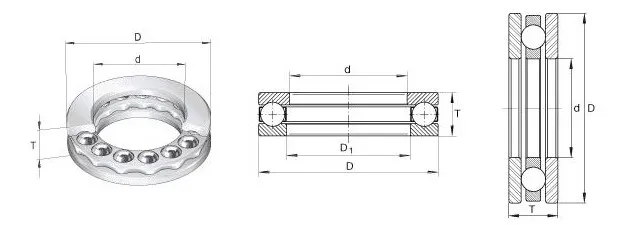

| model | d | D | T |
| mm | mm | mm | |
| F2.5-6M | 2.5 | 6 | 3 |
| F4-9M | 4 | 9 | 4 |
| F5-10M | 5 | 10 | 4 |
| F5-11M | 5 | 11 | 4.5 |
| F6-11M | 6 | 11 | 4.5 |
| F6-12M | 6 | 12 | 4.5 |
| F7-13M | 7 | 13 | 4.5 |
| F7-15M | 7 | 15 | 5 |
| F7-15M | 7 | 15 | 5.5 |
| F8-14M | 8 | 14 | 4 |
| F8-15M | 8 | 15 | 5 |
| F8-16M | 8 | 16 | 5 |
| F8-22M | 8 | 22 | 7 |
| F9-17M | 9 | 17 | 5 |
| F10-17M | 10 | 17 | 5 |
| F10-18M | 10 | 18 | 5.5 |
| F12-21M | 12 | 21 | 5 |
| F12-23M | 12 | 23 | 7.5 |
1: Germany equipment,
2: dust-free workshop,
3: smokeless workshop,
4:5 s management system,
5: ERP warehouse outbound,
Welcome to visit our factory, and promote the communication and learning, and go further in the bearing industry .
1. For small ones:anti-rust oil+vacuum plastic bag+paper box+wooden box
2. For big ones:anti-rust oil+waterproof belt+professional belt+wooden box
3. Custmized package for the deep groove ball bearing The same
-
