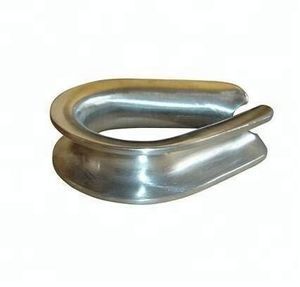

G414 Thimble
- 0.20 >=300 pieces
| Port: | China Main Port; | Supply Ability: | 1000 Ton/Tons per Month; |
| Thimble type: | Inch thimble; | Packaging Detail: | carton or bag; |
| Delivery Detail: | 24-40days after confirming the order; | Payment Terms: | L/C,T/T,Western Union; |
Specifications:
1) US type extra heavy duty wire rope thimble, H.D.G.
2) US type standard wire rope thimble, ZP OR H.D.G.
3) Standard type thimble, ZP
4) European type commercial thimble, ZP
5) DIN6899 B type thimble, ZP
6) BS464 wire rope thimble, H.D.G.
7) Material: carbon steel
Inner packing: carton
| Part No. | Rope Dia. (inch) | Weightper 100(ibs) | A | B | C | D | Dimensions (inch) E | F | G | H |
| RHDT0104 | 1/4 | 6.50 | 2.19 | 1.62 | 1.50 | 0.88 | 0.41 | 0.28 | 0.06 | 0.25 |
| RHDT0516 | 5/16 | 11.80 | 2.50 | 1.88 | 1.81 | 1.06 | 0.50 | 0.34 | 0.08 | 0.30 |
| RHDT0308 | 3/8 | 21.60 | 2.88 | 2.12 | 2.12 | 1.12 | 0.63 | 0.41 | 0.11 | 0.39 |
| RHDT0716 | 7/16 | 34.70 | 3.25 | 2.38 | 2.38 | 1.25 | 0.72 | 0.47 | 0.12 | 0.45 |
| RHDT0916 | 9/16 | 51.00 | 3.62 | 2.75 | 2.75 | 1.50 | 0.89 | 0.59 | 0.15 | 0.48 |
| RHDT0508 | 5/8 | 75.70 | 4.25 | 3.25 | 3.12 | 1.75 | 1.00 | 0.66 | 0.16 | 0.53 |
| RHDT0304 | 3/4 | 158.10 | 5.00 | 3.75 | 3.81 | 2.00 | 1.22 | 0.78 | 0.22 | 0.69 |
| RHDT0708 | 7/8 | 177.80 | 5.50 | 4.25 | 4.25 | 2.25 | 1.38 | 0.94 | 0.22 | 0.78 |
| RHDT1000 | 1 | 313.90 | 6.12 | 4.50 | 4.75 | 2.50 | 1.56 | 1.06 | 0.25 | 0.88 |
| RHDT1104 | 1-1/8-1-1/4 | 400.00 | 7.00 | 5.12 | 5.88 | 2.88 | 1.88 | 1.31 | 0.25 | 1.25 |
| RHDT1308 | 1-1/4-1-3/8 | 886.00 | 9.08 | 6.50 | 6.81 | 3.50 | 2.25 | 1.44 | 0.37 | 1.29 |
| RHDT1102 | 1-3/8-1-1/2 | 1294.00 | 9.00 | 6.25 | 7.12 | 3.50 | 2.62 | 1.56 | 0.50 | 1.31 |
| RHDT1508 | 1-5/8 | 1700.00 | 11.25 | 8.00 | 8.12 | 4.00 | 3.00 | 1.72 | 0.50 | 1.38 |
| RHDT1304 | 1-3/4 | 1775.00 | 12.19 | 9.00 | 8.50 | 4.50 | 3.06 | 1.84 | 0.50 | 1.50 |
| RHDT2000 | 1-7/8-2 | 2775.00 | 15.12 | 12.00 | 10.38 | 6.00 | 3.38 | 2.09 | 0.50 | 1.69 |
| RHDT2104 | 2-1/4 | 3950.00 | 17.50 | 14.00 | 11.88 | 7.00 | 3.88 | 2.38 | 0.62 | 1.82 |
Constitute | The company headquarter Three wholly-owned manufacturing factories The joint-venture factories |
Top-notch technical and R&D team | 3 professor-level senior engineers 6 senior engineers 12 engineers |
Field | Metallurgy, Electric Powder, Shipyard, Sea Port, Oil-field, Railway, Machinery, Auto, Energy, Aerospace, etc. |
Equipment | Hydraulic Extruders (3150T/2000T/500T), Friction Presses (1600T/1000T/630T/300T), Hydraulic Press Machines (3000T/1500T/600T), Drawing and Straightening Machines (100T/40T/10T), Intermediate Frequency Induction Furnaces (2T/1T/0.5T), Vacuum Annealing Furnaces (5T/2T/1T), Punching Machines (250T/160T/100T/80T/25T), Automatic Heat Treatment Equipment and Automatic Plastic Coating Line |
Test | Tensile test less than 300tons, Chemical analysis of such metal materials as steel, aluminum, copper, etc. Metallurgical microstructure laboratory and ultrasonic defects detecting center. |
Certificate | ISO 9001-2008, BV, SGS, CE |
1) A leading manufacturer of U.S. Type Wire Rope Clip in China.
2) High quality products with competitive price.
3) Exporting 50 containers per months abroad from 1994 to now and have won a high reputation in the market.
4) An ISO 9001:2008 Certified Manufacturer.
Exhibition FETCON BATIMAT 2012
Expo Ferretera2012
Exhibition FETCON BATIMAT 2013
Turkish hardware exhibition 2013
