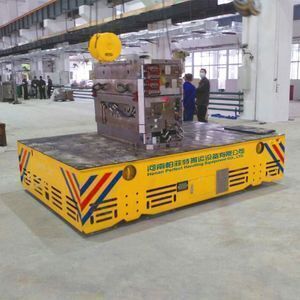

Handling intelligent laser welding equipment mobile electric transfer cart

Supplier: Henan Perfect Handling Equipment Co., Ltd.
Region: Henan, China
Contact: Mr Mike Wong
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Load Capacity:	1-300T;	Place of Origin:	Henan China;
Payment Terms:	L/C,T/T;	Certificates:	CE/ISO/SGS;
Height:	Customized;	Self-weight:	5000-20000kg;
Power Sourse:	Battery;	After-sales Service Provided:	Engineers available to service machinery overseas;
Supply Ability:	100 Set/Sets per Month Trackless Machine;	Color:	Customized;
Port:	Qingdao;Tianjin;Shanghai;	Packaging Detail:	HS Code:84289090 Product name: Trackless Machine Packing with tarp and wooden case;
Running Speed:	0-50/min(Adjustable);	Control Method:	Remote Control/Pendant;
Delivery Detail:	20 work days;	Product Name:	intelligent laser welding equipment mobile electric transfer cart;
Table Size:	Customized;

Handling intelligent laser welding equipment mobile electric transfer cart

Product Description

The BWP series handling intelligent laser welding equipment mobile electric transfer cart is consisted of power source, gear train, steel structure bearing frame, steering gear, running gear, control system and fault diagnosis module. other functions. It can turn around on the cement floor.All the mobile electric transfer cart are equipped with warning alarm and security detection apparatus, and the alarm would ring and the car would stop immediately if there was any obstacle or pedestrian in the running path of the Trackless Machine. Also, we will provide intelligent automatic rapid charger with the mobile electric transfer cart. Positioning fixture, lift platform and other assistive device are optional to meet different demands on various occasions. The PLC is also alternative if it’s necessary.

Technical Parameters

Model	BWP-5t	BWP-20t	BWP-30t	BWP-40t	BWP-50t
Rated Load(t)	5	20	30	40	50
Impacted rated load(t)	7.5	30	45	60	75
Structure of Frame	Steel plates welded, beam
thickness of the steel plate	8	14	14	16	16
Cart weight(t)	4.3	7.9	8.8	10	10.5
Max. wheel load (t)	2.8	5.6	7.7	10	12
Ground requirement	Cement floor or Steel plate ground
Ground Clearance(mm)	50	50	50	50	50
Table size (mm)	3000 X 2000	4500 X 2200	5000 X 2200	5500 X 2300	6000 X 2300
Height of the whole cart (mm)	450	600	650	700	700
Wheel base (mm)	1500	1700	1700	1800	1800
Axles distance (mm)	2500	3900	4300	4800	5200
Turning radius (mm)	2501	3901	4301	4801	5201
Turning type	Turning while driving with no stop
Control method for turning	Control button
Turning structure	Mechanical
Motor power (KW)	3.5	7	10	12	15
Wheel diameter (mm)	300 (4)	400 (4)	400 (6)	500 (6)	500 (6)
Wheel material	ZG55+hydropurture
Running speed (m/min)	0-15			0-12
Brake principle	Electric magnetic brake
Ground balance	Mechanical automatic adjustment
Operation method	With wire or no wire
Battery model	D-250 24pieces	D-440 24pieces	D-250 36pieces	D-330 36pieces	D-440 36pieces
Battery maintainance	Free of maintainance
Charger's installation	Installed on cart			Split-type
Cart color	Yellow and warning sign
Charger's function	Automatic stop for obstacles
Radar control	3-0.3 m, Automatic stop for obstacles
Warning equipment	Sound and light
Other functions	Turning light, night light and power display

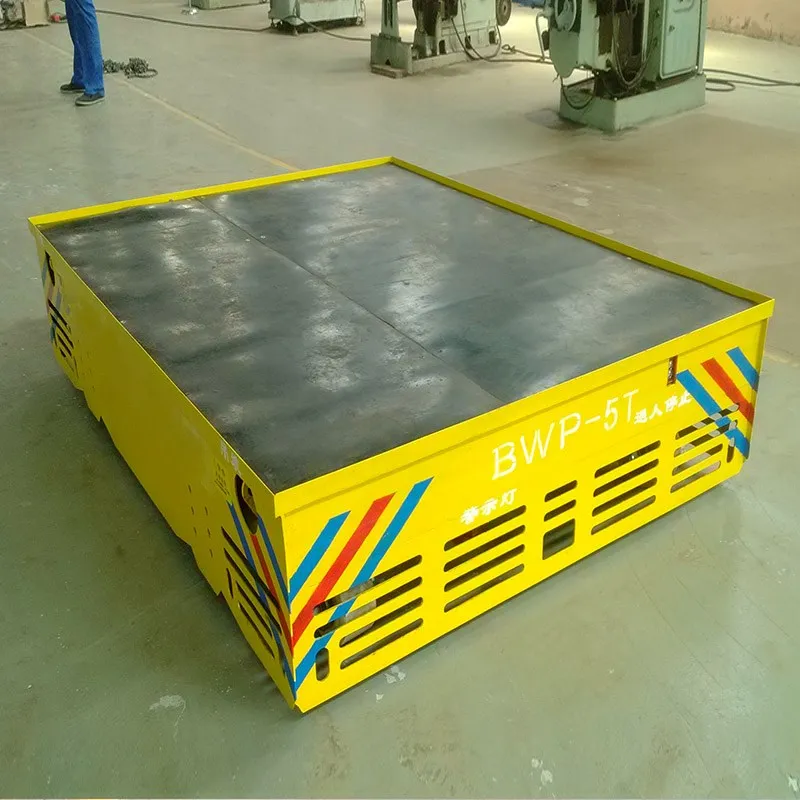

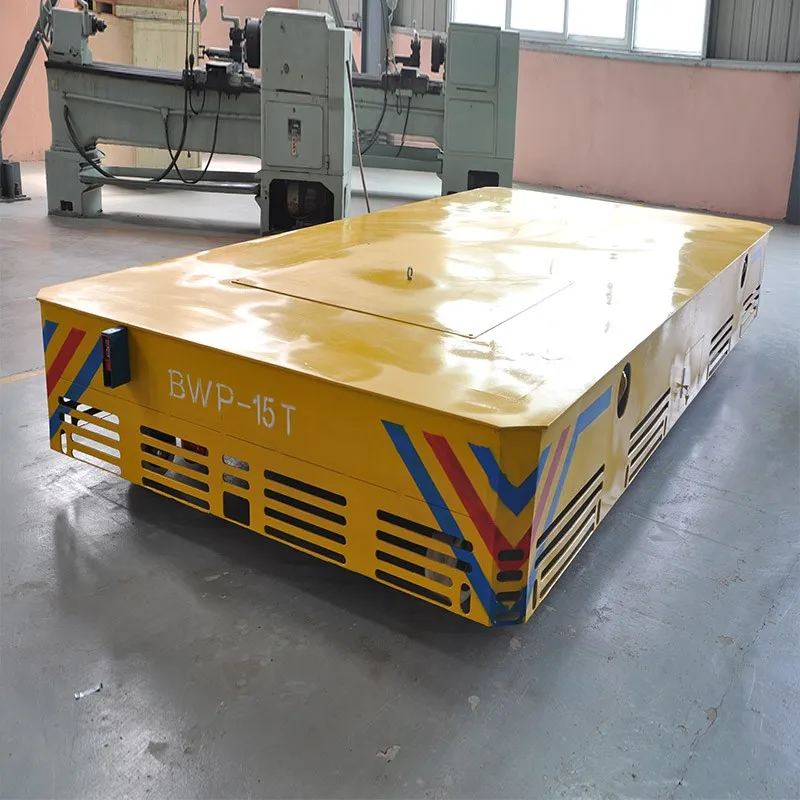

Detailed Image Of Trackless Machine

Processing Line Of Trackless Machine

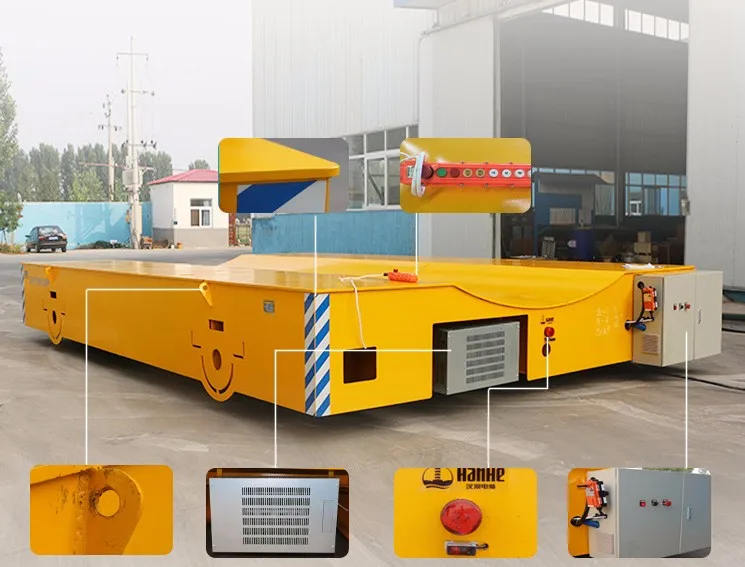

Components Of Mobile electric transfer cart

Functions & Advantages Of Mobile Electric Transfer Cart

The mobile electric transfer cart is Anti-high temperature,Anti-high explosion;
The mobile electric transfer cart is powered by battery;
With lifting holes,The Trackless Machine is convenient to shipment;
The mobile electric transfer cart has a feature of stable start, big starting power, long lifetime;
The mobile electric transfer cart can spin around 360 degrees;
Running distance of mobile electric transfer cart is unlimited;
Safe and convenient operation is available for Trackless Machine;
High using frequency for Trackless Machine.

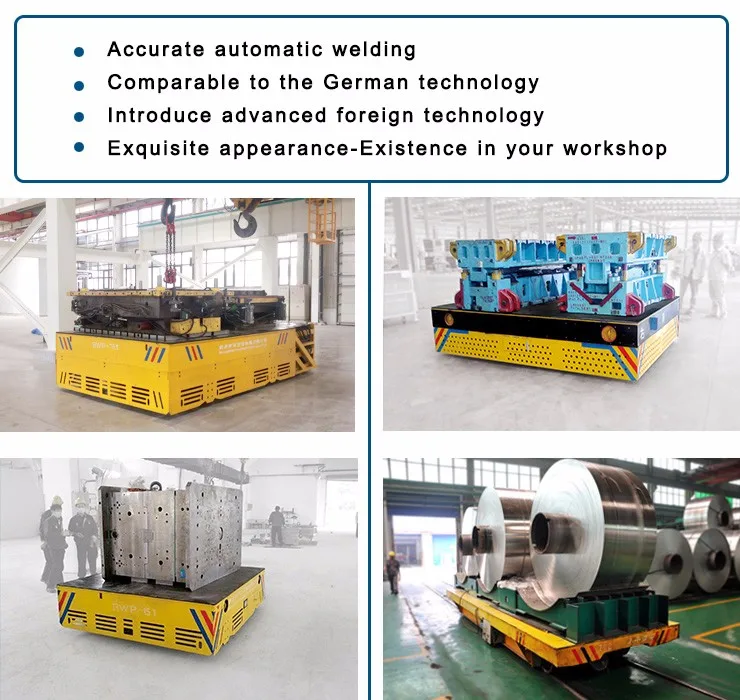

Application Sites Of Mobile Electric Transfer Cart

The mobile electric transfer cart is mainly applied in assembly line(ring production line,loop production line),metallurgy industry(steel lade),warehouse transport,ship industry(maintenance, assemcle,container transport),work piece transport in workshop,lathe transport,steel factory(steel billet,steel plate,steel coil,steel pipe,section steel structure),construction(bridge,simple building,concrete column,)petroleum industry(oil pump,sucker rod and parts),energy(polycrystalline silicon,generator,windmill),chemical industry(electrolytic cell,retort etc),railway(rail maintenance,rail welding,train tractor).

Packaging & Shipping

The body is packed with tarp, the mobile electric transfer cart wheel and parts will be packed with wooden case.
For lenght is less than 5.9m, the width is less than 2.2m. It will be transported by 20ft container. If the length is longer than 5.9m and less than 12m, it will be transported by 40ft container.If the quantity is 2 sets or 3 sets, they can be transported by full container. If the quantity is 1 set, it can be transported by LCL Container.If the length is less than 12m, the width is beyond 2.2m. It needs to be transported by FR container(20 or 40 ft). If the Trackless Machine is beyond above dimension, It needs to be transported by BB container.Determine the size & material of the box according to the shape & number of products.
Price Term: EXW, FOB, CIF, C&F,DDU, DDP.

Certifications

Our Services

Our commitment: The load bearing safety factor of the Trackless Machine is no less than 120%.
Freely design the auxiliary device or foundation drawing, and offer the technical service and drawing material.
16 hours engineering service and 24 hours internet service for our customers.
During the warranty period, if our Trackless Machine can't work normally, we can support you repair technology or replace relevant parts for you within 24 hours.
Solving the quality problem within 24 hours, serious attitude from beginning to end. Value the reputation and Preserve the image of our company.

Company Information

Based on modern plant and advanced production equipment, we can produce all kinds of Trackless Machine from 1-1300 tons, our main products including BDG series Trackless Machine, BJT cable drum series Trackless Machine, BHX safety sliding line series Trackless Machine, BXC battery series Trackless Machine, BTL towed cable series Trackless Machine, BP non-power series Trackless Machine, BQY train towed series Trackless Machine, BWP trackless series Trackless Machine and special Trackless Machine, such as turning, trackless,ladle, hydraulic lifting, ferry, painting room, blasting booth etc.

Our Trackless Machine not only have sold across the country, but also exported to US, Germany, Thailand, Netherlands, South Africa, Syria, Turkey, Nepal etc. There are more than 150 employees including 10 senior engineers, 15 engineers, 25 technicians, the employees accepted higher education including postgraduate, undergraduate, junior colleague student occupied 80%. We cooperate with the Nanjing Engineering Institute all the year round and a senior welding engineer personally directs the production. Our company passed ISO9001 Quality management system and got the CE, SASO, SGS certificate. Meanwhile, we also got 8 national patents which are S type rail turning cart utility model patent, S type rail turning cart appearance patent, rail electric forklift utility patent, electric rail tractor utility patent, steerable transfer car utility patent, lifting electric cart utility patent, scissor hydraulic lifting electric cart patent, whole ring rail electric flat car’s wheel and flat car patent.

FAQ

1. Q: What term of payment do you accept?

A: For the first time we cooperate, we accept 50% T/T as depoist, 50% T/T before delivery. For the return customer, we could deal with 30% T/T as depoist, 70% T/T before delivery. Also, we accept L/C.

2. Q: What is you delivery time?

A: We will delivery the Trackless Machine you ordered 45 days after we accept the prepayment.

3. Q: How do Trackless Machine been shipped?

A: We export the Trackless Machineby sea or train with full container, LCL or in Bulk.

4. Q: Do you have quality assurance for Trackless Machine?

A: Yes, we have one year of assurance.
