PET ETFE 12V 100W 120W 150W folding solar panel Flexible Solar Panels

Product details
Application:car, Caravan, sailboat, tent etc projects;Type:Standard Solar Panel;
Backsheet:TPT Material;Size:1050*540*3mm or customized;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal or RMB;Brand Name:SHINESOLAR or OEM;
Supply Ability:3000000 Watt/Watts per Month sunpower flexible solar panel 150w;Vmp:12V 24V 36V or customized;
Warranty:10 years;Color:White/ black;
Bendable:30-90 degree;Packaging Detail:sunpower flexible solar panel 150w packed in foam and carton box, or as customer's request.;
Certificate:CE IEC ROHS LVD SGS;Place of Origin:Guangdong China;
Junction Box:IP67 waterproof;Port:Shenzhen;
Model Number:SN-H110W;Product name:sunpower flexible solar panel 150w;
Connector:MC4/DC or customized;



 PET ETFE Folding Marine Flexible Sunpower Solar Panels 12V 100W 120W 150W

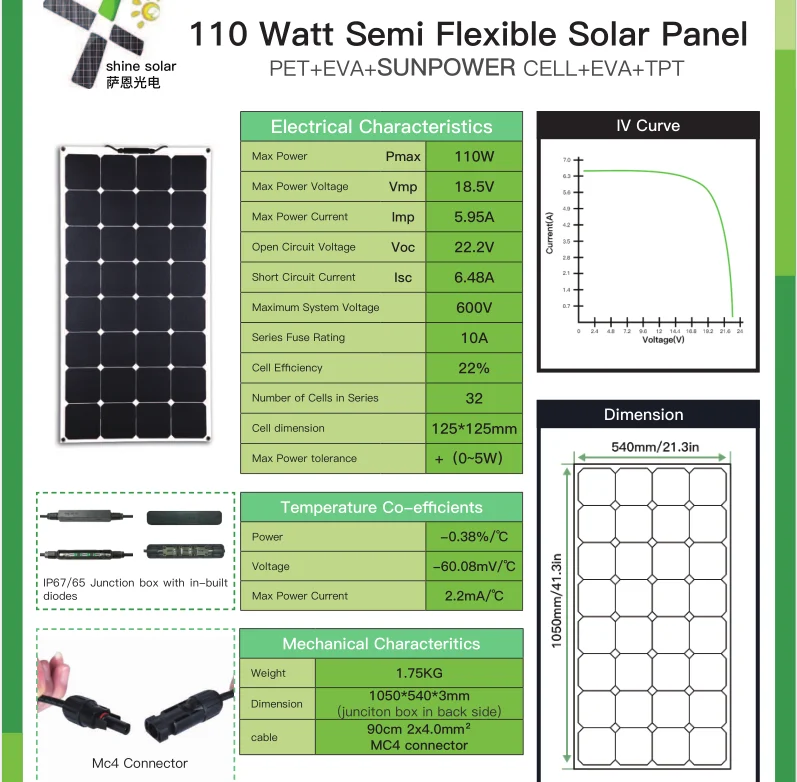

Product Parameters



ETFE Sunpower Semi-flexible solar panel
MODELPM/WVOC/VISC/AVMP/VIMP/AN/W(kg)DIMENSION
SN-H18W

18.0

23.71.019.40.90.3434*277*3mm
SN-H25W

25.0

21.61.518.01.40.4560*277*3mm
SN-H30W

30.0

21.21.817.61.70.5535*378*3mm
SN-H50W

50.0

21.23.117.62.80.8545*535*3mm
SN-H60W

60.0

21.03.817.53.41.1725*535*3mm
SN-H90W90.018.56.315.25.91.5920*540*3mm
SN-H100W100.021.66.017.85.61.81060*540*3mm
SN-H115W115.023.76.319.85.82.21185*540*3mm
SN-H120W120.026.45.922.05.52.31305*540*3mm
SN-H125W125.026.45.922.55.62.51315*540*3mm
SN-H135W135.029.55.824.95.52.61435*540*3mm
SN-H140W140.029.56.024.95.62.81435*540*3mm
SN-H150W150.029.06.824.26.23.01300*660*3mm
SN-H175W175.036.66.130.55.73.21185*800*3mm
Product Description

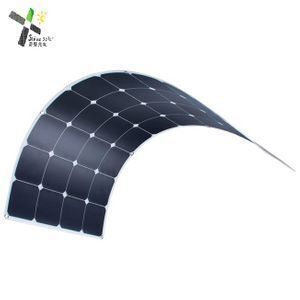

ETFE Sunpower flexible panel.

1.Use back-contact SunPower cell, is made from US, up to 22% efficiency, while most monocrystalline panels in the the market is 17%-19%, you will get greater power efficiency even though the panel is no larger than a traditional model

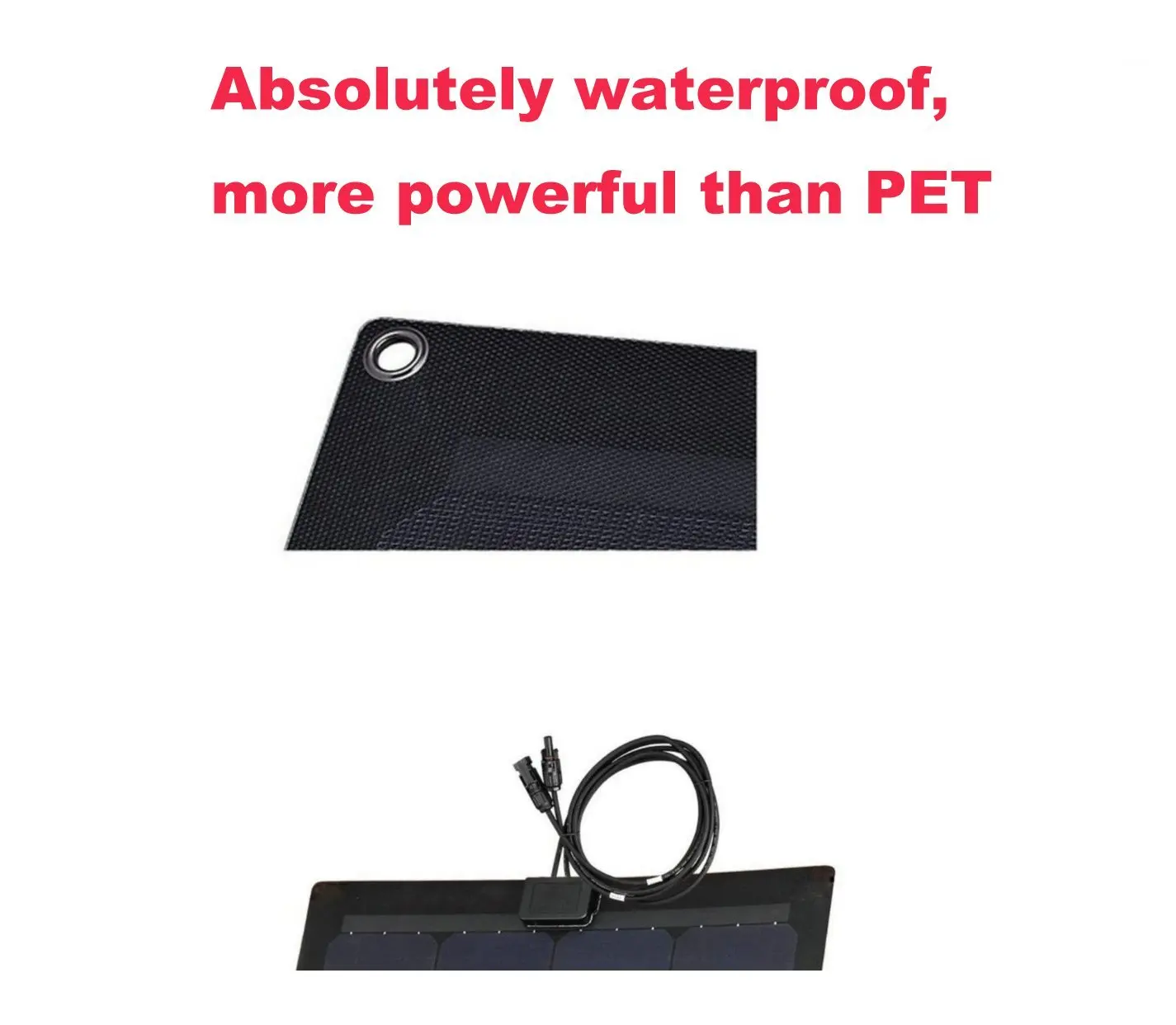

2.Self-cleaning: Be free from maintenance, rainfall cleans the dirt due to its nonstick surface.

2.Tear resistant, corrosion resistant and fire resistance.

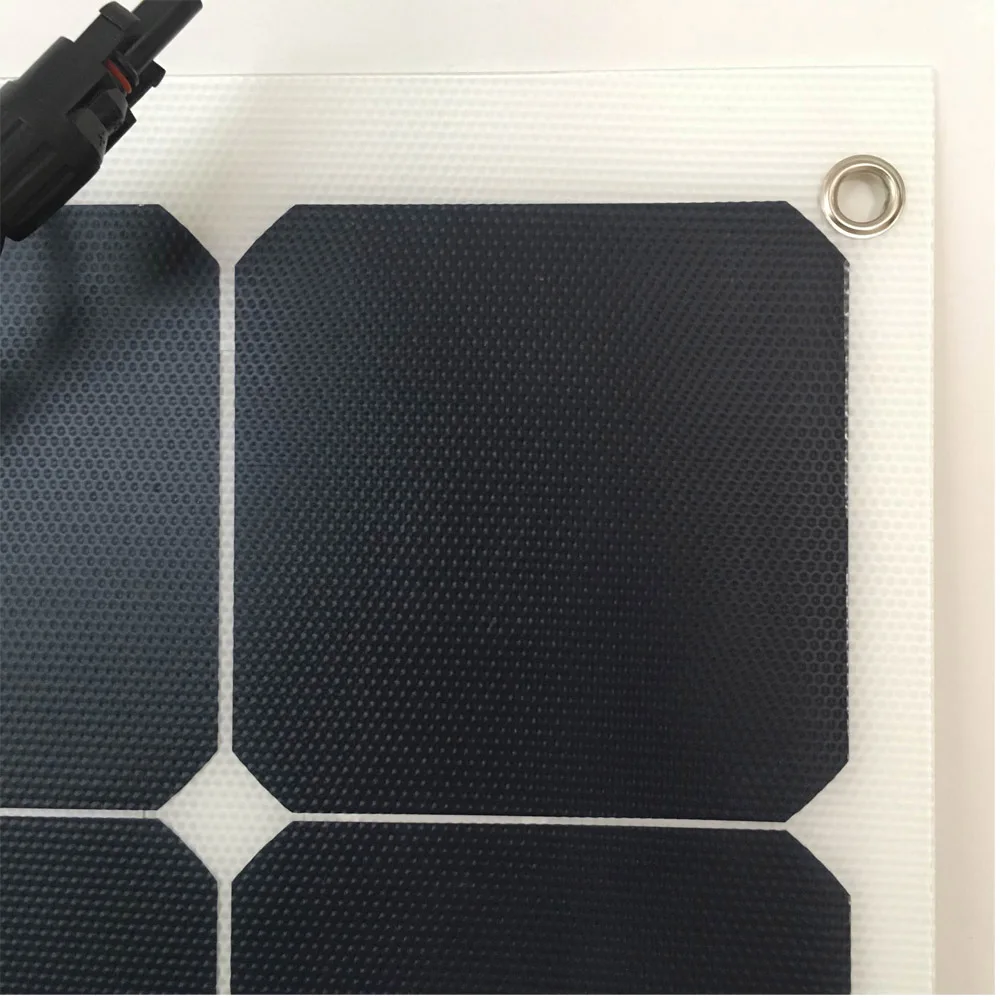

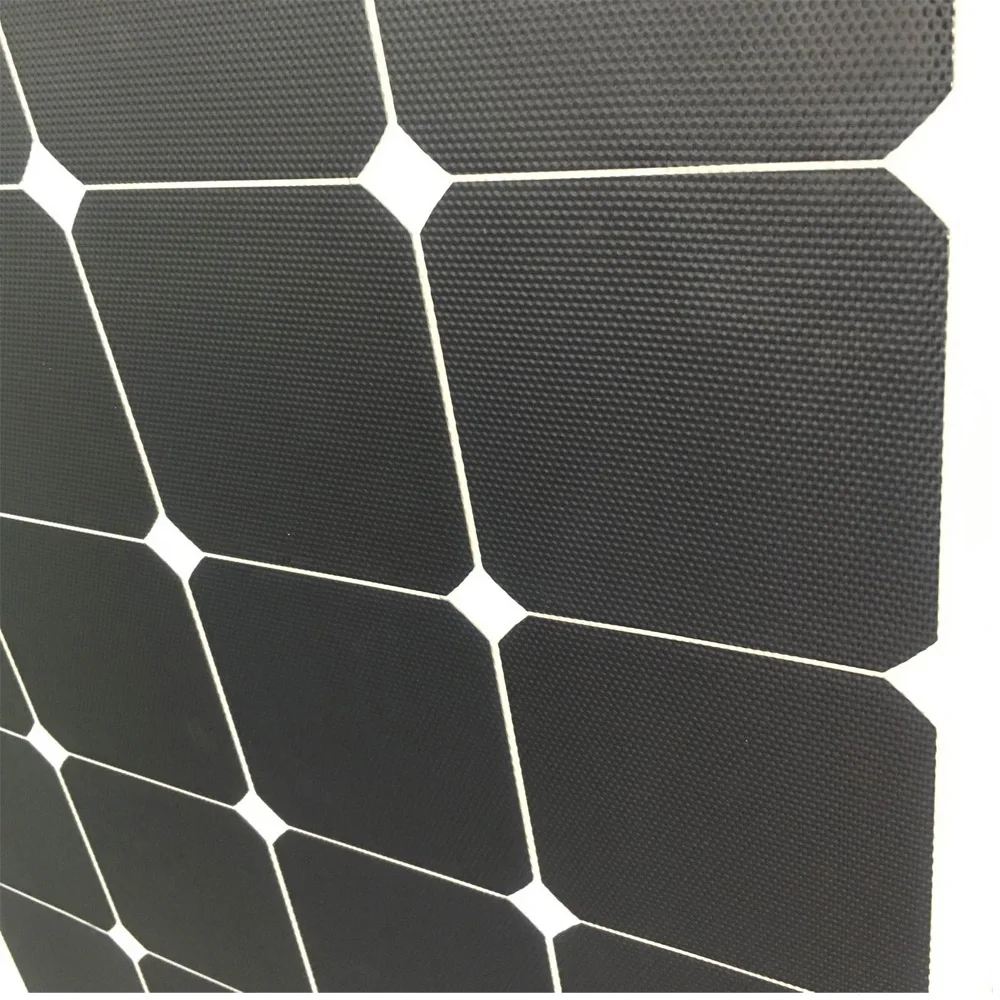

3. Featuring with honey - comb structure which enhance 10% natural lighting, high transparency(95%) to ultra-violet light.

4. Long life and recyclable, the age of ETFE laminated membrane is up to 25 years, later it could be frited for other use, 100% recyclable.

5.Thin and lightweight: 2.5-3mm thickness, 1.4kg only,easier to hang and install on tight spaces or crowded areas that are typically off limits for traditional glass and aluminum models, like Greenhouse roof, tent etc projects.

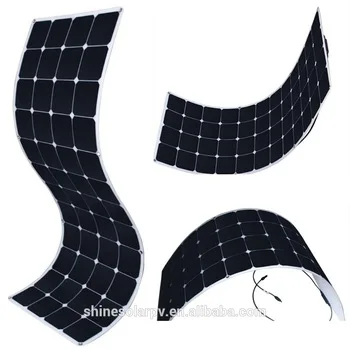

6.Flexible: It can be curved to a maximum 30 degree arc, which makes it ideal for storage in tight spaces or crowded areas.

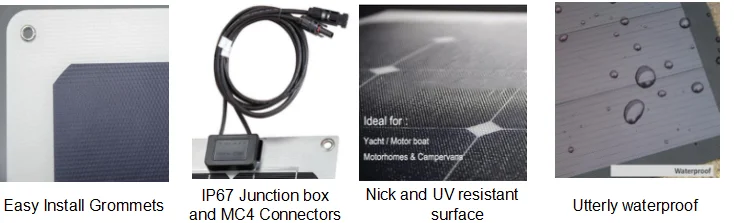

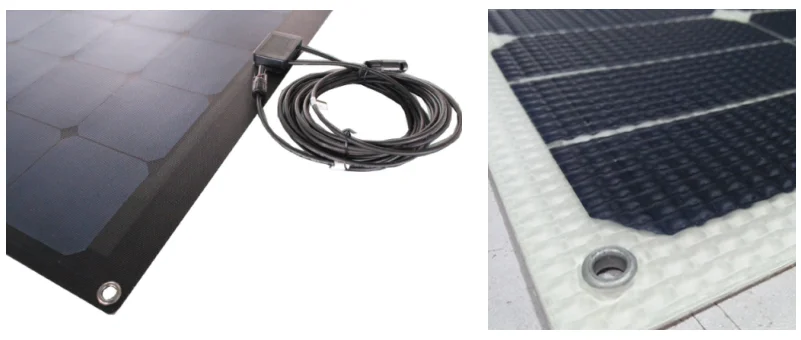

7.installation: Holes on panels are pre-drilled for fast mounting and securing, perfect for non-permanent installations.

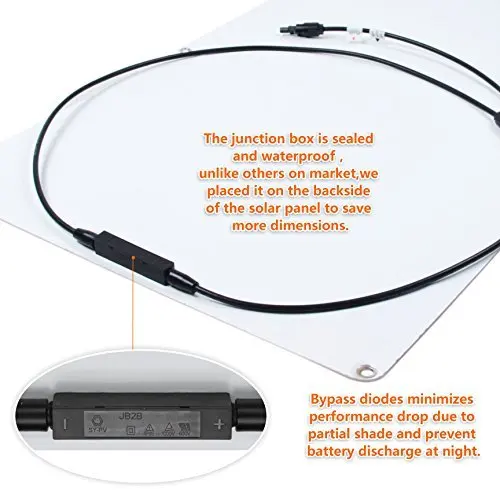

8.The junction box can place on front side, so can instal panel on roof flatly.

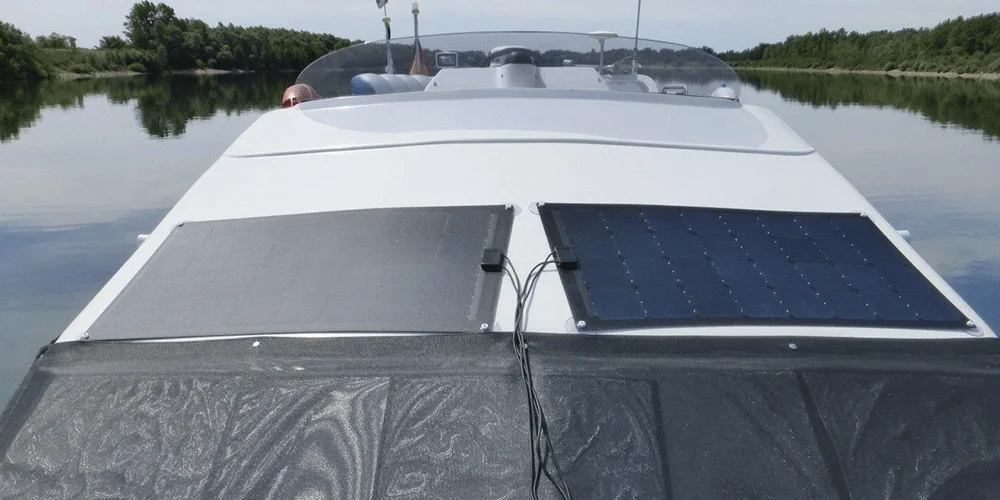

Applications



Packaging & Shipping

Company Information

SHINE SOLAR have a qualified team experienced at R&D, production, quality control and management with competitive prices for all its products and services. All its products have certificates of TUV, IEC, UL, CE, CEC and so on.



Our Services

1.All of our solar panels can be customized size, voltage, power and shape, and ensure high power and performance.

2.Our sales team 24 hours online, can reply your mail in time.

3.Affordable, delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

4.Know well about solar energy industry, can provide specialized guidance to customers, such as the controller, inverter selection, the installation solution and so on.

5.Provide professional after-sales services.

For Samples

Sample Delivery Time : 5-10 days,

Samples Charge: Charge for the samples, give back when the formal order placed.

Our advantage

1.All of our solar cells pass a rigorous test and selection, to ensure all are high efficient Grade A solar cells.

2.Fully automated production processes, and each production processes with strict monitoring to make sure the solar panels in high quality.

3.Each solar panel will be tested one by one, and we will provide the test reports to you before shipping.

4.Delivery on time, 15-20 days lead time for glass solar panels, and flexible solar panels always have in stock.

5.25 years warranty

6.We passed the CE, ROHS, ISO9001, TUV, LVD and other certification.

FAQ

Q:What's the sample cost ?

Samples charge is according to actual cost, and it is refundable after your order released.


Q. How to apply refund?

A. Once the PI has been confirmed and ordered goods are ready, a refund will not available for a canceled order. But a refund would back to you in time the case that we could not offer the products required in stock due to the shortage or unavailability.


Q: Do you accept custom design on size?
A: Yes, if the size is reasonable.

Q: Could you print our company LOGO on the nameplate and package?
A: Yes, we can do that.


Q: Do you have your own factory?

A: Yes, we have. Our factory located in Shenzhen, Guangdong province.


Q. Can I come visit your showroom and factory?

1) Welcome to visit our office and shop directly before establishing long-term business relationship.

2) We'd very like to help you book the hotel and pick you up from the airport, or the railway station. Please inform us if you have any scheduling in China.

3) Many clients from India, Myanmar, Germany, Saudi Arab, France, Russia etc has paid a visit in our showroom, so now, is your turn?
