Good price juicer machine , fruit and vegetable drying machine

Product details
Place of Origin:Henan China;Model Number:FR-180;
Power(W):3kw;Product name:dewatering screw press;
Raw material:Fruit,Vegetables;Weight:550KG;
Supply Ability:100 Set/Sets per Month Good price juicer machine;Port:tianjin/shenzhen/guangzhou/shanghai/QingDao;
Material:Stainless Steel;Brand Name:furui;
Capacity:0.5T/H;Application fields:Fruit processing plant,Winery,Vegetable processing plant;
Dimension(L*W*H):1700*500*800mm;Type:carrot juicer machine;
Machinery Function:juicing;Keywords:Vegetable Press Juicer;
Voltage:380V;Packaging Detail:1. wooden package for standard export 2.shockproof packing 3.Or as your specific demands;
Certification:CE/ ISO;Dimension:1600*800*1000mm;
Applicable Industries:Food & Beverage Factory,Farms;Warranty:1 Year;
Condition:new;After-sales Service Provided:Online support;
Mesh size:1mm (adjustable);Brand Name:FR;
Output product name:juice;Payment Terms:L/C,T/T,Western Union,MoneyGram,trade assurance;

 Good price juicer machine , fruit and vegetable drying machine with stainless steel material

Product Description



Description of  juicer machine

this model dewatering machine is widely used for dealing with the ginger, cassava, fruits, food waste and the restaurant waste also the rabbish waste and so on. to separate the moisture out of the materials, stainless steel materials not easy to get rusty and high working efficiency to us. and also machine can design with the shredder together, for some materials if with large pieces, can use the shredder to crush them first. and for the machine inside structure we have single screw and double screws to suitable for different kinds materials, high working efficiency convenient to use. on the machine we can also make a shredder machine design, for the materials, can first shred them into pcs and then separate water out, more convenient to use.

Technical parameter of juicer machine

Model

FR-180

FR-260

FR-350

FR-420

FR-500

FR-600

Capacity(T/H)

0.2-T0.5T

1T-1.5T

1.5T-3T

3T-5T

6T-10T

10t-15t

Power

3kw

5.5kw

7.5kw

11kw

18.5KW

22KW

Diameter of screw

180mm

260mm

350mm

420mm

500mm

600

Speed

12r/min

12r/min

12r/min

12r/min

12r/min

12r/min

Adjustment method

Spring adjustment

Spring adjustment

Spring adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Hydraulic

adjustment

Mesh size

(mm)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

1mm

(adjustable)

Material

304 stainless steel for the suspension contacts part, add fee can customized to be whole stainless steel

Voltage

380V/220V

380V/220V

380V/220V

380V/220V

380V/220V

380V/220V

Weight

550kg

900kg

1300kg

26000kg

3050kg

4300kg

Dimension(cm)

170*50*80

220*60*90

350*70*100

358*100*147

374*120*165

450*130*165

Features of juicer machine

The Double Screw fruit and vegetable juice extractor is made of high-quality acid-proof stainless steel . The machine consists of double shaft shredder,frame, transmission, feed section, juice section, hydraulic systems and electrical control section and the shroud and other components. Press screw rotates together with the spindle, material handling screw set screw on the spindle and press for reverse rotation, the material of the press force of the uniform, taphole cone by the Night cylinder control oil pressure can be varied to adjust the material pressure effect, thereby adjusting the juice yield, the effect will be some differences due to different materials.

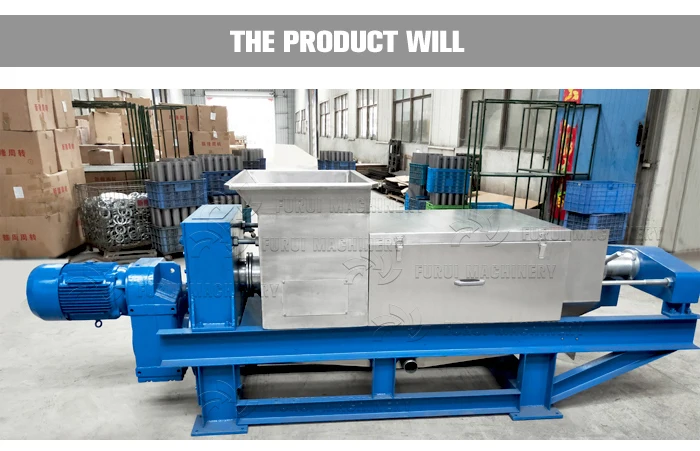

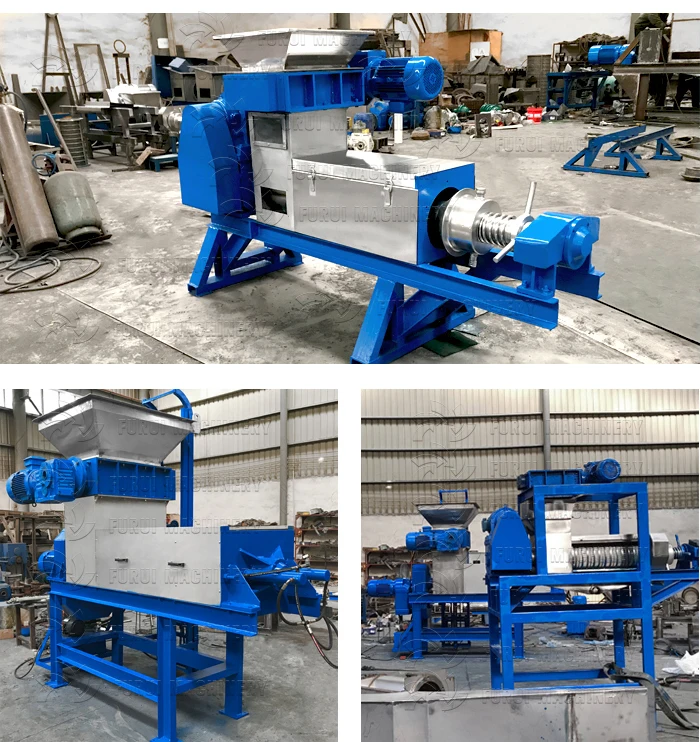

More pictures display of juicer machine

Packaging & Shipping



1.export standard wooden case packing

2.shockproof packing

3.Or as your specific demand



Company Information



Our Services



1. After-sale service:

    We provide 12 months' warranty(After the warranty, we can provide life-long repair service).

2. Customization:

    We make customized diesel engine crusher plastic machine.

3. Design:

* Mechanical Design:  We make a good mechanical design to ensure they can operate without

any frictions, so that it can have a long service life.

* If you have some special scenes in your mind, you can draw it down and we can produce the your pictures.

Also, we can make the movie scenes!

* Inspection: we have a strict Quality Inspection Department, and every machine would be tested before delivery.

We will serve you online in 24 hours!!! You  can contact with me if  you have any problems.
