High Accuracy Aluminium Foil Container Making Machine

Supplier: Accurl Cnc Machine(anhui) Manufactory Co., Ltd.
Region: Anhui, China
Contact: Mr Cameron Lee
Price: $30000.00 / >=2 sets
Min. Order: 2 sets

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/HTB1HxSVcEGF3KVjSZFm762qPXXaP.png_640x640.png,https://sc02.alicdn.com/kf/HTB1NgmVcwKG3KVjSZFL761MvXXam.png_640x640.png;	After-sales Service Provided:	Online support,Video technical support;
Certification:	CE;	Type of machines:	CNC;
Power Source:	Mechanical;	Box type:	Customized;
Brand Name:	ACCURL;	Voltage:	Customized;
Function:	Packing Machine;	Automatic Grade:	Automatic;
Color:	Yellow White;	Applicable cans:	As mold;
Applicable Industries:	Hotels,Garment Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Restaurant,Home Use,Food Shop,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Usage:	Food Forming Machine;
Product name:	Automatic Aluminium Foil Container Making Machine;	Application:	Aluminum Foil Container;
Package Type:	Suitable for sea transport for Automatic Aluminium Foil Container Making Machine.;	Selling Units:	Single item;
Single package size:	100X60X40 cm;	Warranty:	1 Year;
Place of Origin:	Anhui China;	Single gross weight:	60 KG;
Condition:	New;

Product Description

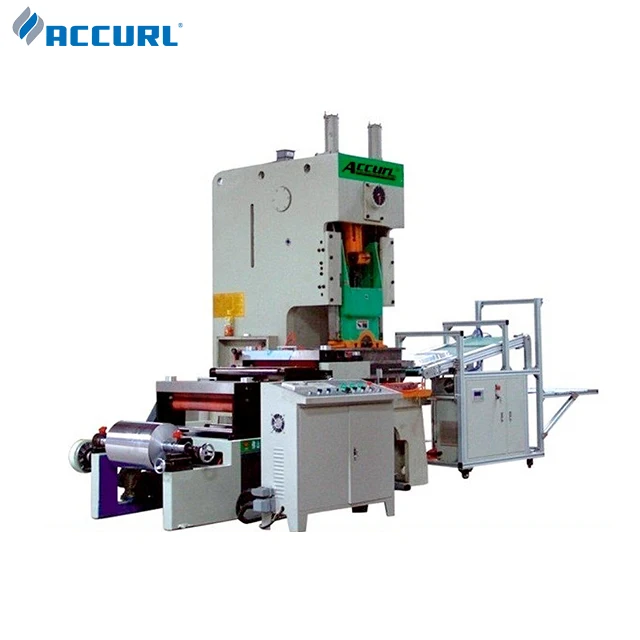

Aluminum Foil Container Macking Machine Production Line

Specifications:

1. High precision,Wide application

2. EU CE Certification

3. CQC,ISO9001:2008

4. High performance

5. Easy to operation.

Main Features:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Aluminum foil container machine composed of the following:

1	Auto Feeder (with an auto-lubricator)
2	Electrical control panel
3	Air output control equipment

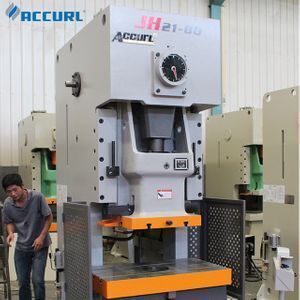

4	60 ton pneumatic press

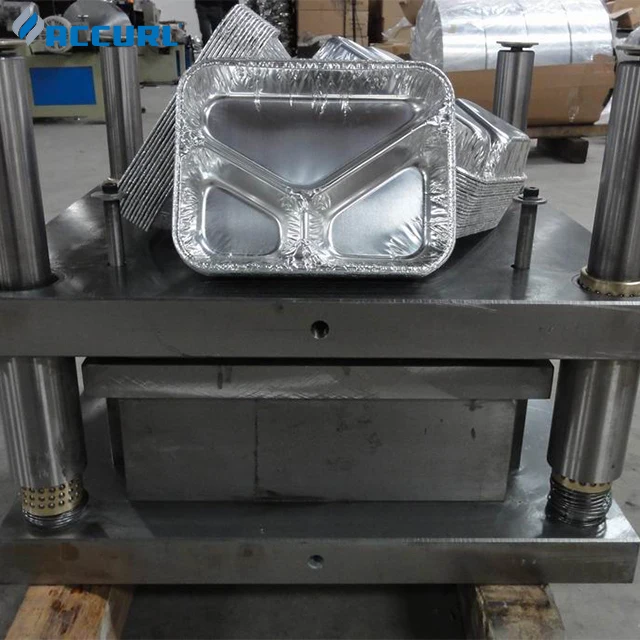

5	Mould
6	Auto-stacker or conveyor(including scrap collector)
7	Collection desk

Certifications

Detailed Images

Function feature:

1. JH21-Series Aluminum Foil Container Production Line (Upgraded Model) is composed of auto-lubricated feeder, length controller, control panel, Pneumatic punch, mould (price is not included), conveyor(including scrap collector), collecting table of finished product, and scrap presser (optional equipment).and its speed depends on containers size and complexity. It can be equipped with multi-cavity moulds.
2. It adopts the electrical stepping system (can be replaced by PLC controller as customer's requirement) to realize the function of positive and negative rotary of motor. With the adoption of double electromagnetism valves and pressure relay, the operational safety is guaranteed. Safe and reliable. Feeding length and production speed and other parameters simply setting, Gas/electrical integration, centralized control. Full Automatic production, only need people collect products
3. The frames of equipmints are made of the holstic steel which has the advantages of high rigidity and reasonable structure. Thanks to inside installation of driving system, the layout of the equipment is compact. With the adoption of dry friction clutch, the slide area can stop instantly at any height.
4. Working of feeding, stamping, waste collection, products send out from mould for automation
5. And the punch can realize the function of single-stroke,inching motion and continuous action, which is beneficial to regulate the mould position and improve the processing precision.
6. As customers' requirement, the eletrical stepping system can be replaced by a PLC controller, which work better. It also can adopt the light screen protective device, so it is a safe press.
7. This production line adopts the independent removable panel which is colorful,convenient and has nice layout.
8.Feeding system employ stepping control, feeding length without error, length can accurate 30mm to 999mm by arbitrary setting.
