220v/diesel motor automatic sand mortar spraying pump machine/wall cement plaster machine for construction

Product details
Color:Customized;shipping:air/sea shipping;
After-sales Service Provided:Engineers available to service machinery overseas;Application:spray cement and mortar;
After-sales Service Provided:Field maintenance and repair service;Single gross weight:350 KG;
power:7.5kw;Applicable materials:Mortar Cement Water;
UNIQUE SELLING POINT:High operating efficiency;Horizontal Delivery distance:60m;
Selling Units:Single item;Brand Name:PAISEN;
type:piston type spraying machine;Condition:New;
Certification:ISO9001/CE;Warranty:Two Years;
Weight:350kg;voltage:380v/220v;
Vertical Delivery Distance:30m;Applicable Industries:Building Material Shops,Manufacturing Plant,Retail,Construction works ;
Power:220 voltage/380 voltage;Place of Origin:Hebei China (Mainland);
Dimension(L*W*H):1650x750x1100;Single package size:175X80X130 cm;
Package Type:strong standard export wooden case;motor:electrical /diesel fuel motor;

220v/diesel motor automatic sand mortar spraying pump machine/wall cement plaster machine for construction








Product Description

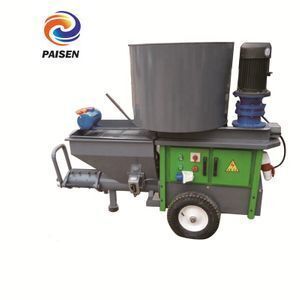

   The piston style cement spraying machine is our newest product, the machine consists of motor, reducer, pump, air compressor, electrical equipment, machine frame and so on. It has a big advantage than the screw style spraying machine, the machine has high pressure, fast speed, high efficiency, easy moving, easy maintenance, and long service life, most important, no need to often change the wearing parts.





Application



     The cement spraying machine is mainly used in the building construction industry, both inside and outside wall for plastering and spraying mortar, external wall insulation mortar spraying, the materials can be mortar roughcast, refractory coating, large building spraying fire materials, waterproofing coating and so on.





1, In the construction engineering industry, the machine is used for horizontal and vertical transferring and spraying mortar or cement.

2. In the chemical and paper industry, delivering the raw pulp material and waste materials.

3. In coal-fired power plants , the machine is used to deliver the fine coal mortar.

4. In the mining tunnel construction industry, the machine is used to grout and protect slope.

5. In the highway pavement maintenance, it used for road surface collapse pressure mud filling.

6. In Prestressing structure construction, the machine is used for cement road surface collapse pressure mud filling.

7. In water conservancy engineering, it is used for reinforcing the dam.

8. In metallurgy, steel and other industry, the machine is used to maintain the blast furnace and slurry infusion of the other equipments.





Lubrication and operation attention



Keep regular lubrication in the gear box. The lubrication oil should use gear oil, and examine the eccentric gear and bearing parts on time.

1, must keep the machine in a stable position.

2, must keep the gear box always having oil.

3,examine each hose and pump, keep it unblock.

4,must keep the hopper having materials when spraying.

5, before using, put 5L water into the hopper, start the machine to pump the water ,so as to wet the hose, hopper and pump.

6, after using , discharge the rest of cement, and put water to pump, so as to clean the hopper, hose, spraying gun in case of blocking the machine.





technical data of the cement sprayer:





voltage

380v/ 220v/diesel motor

power

7.5kw

Air compressor

0.36 cubic meter/hour

Max pressure

5Mpa

Max aggregate diameter

1cm

Cement and sand ratio

1:3, 1:2.5

Vertical Delivery Distance

30m

Horizontal Delivery distance

60m

Weight

350kg

size

1650*750*1100mm

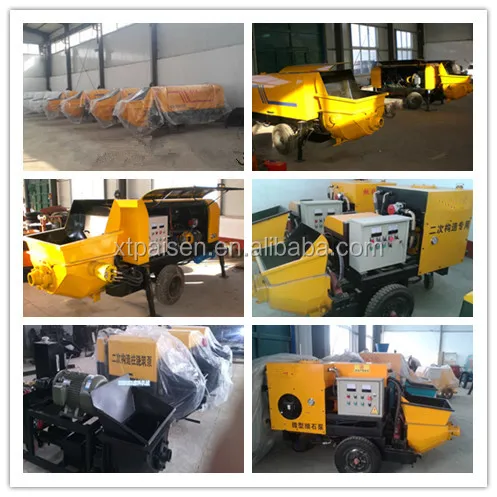

  if need concrete pump, please click here
