Rechargeable Lithium 18650 7.5ah 12v UPS Battery Pack for Motorcycle Starter Motor Products from General Electronics Technology (Shenzhen) Co., Ltd.

Product Details

Type:	Free style;	Size:	Customized;
Model Number:	GEB12v 7.5ah;	Brand Name:	GEB;
Payment Terms:	L/C,T/T,Western Union,MoneyGram,Paypal;	Nominal Voltage:	12V;
Certificate:	ROHS, CE;	Delivery Detail:	Shipped in 10 days after payment;
Port:	HongKong / Shenzhen;	Packaging Detail:	internatinal standard package;
Capacity:	7.5ah;	Place of Origin:	Guangdong China (Mainland);
Composed method:	4S3P;	Application:	Motorcycle Starter, UPS;
Item Name:	12v 7.5ah ups battery pack for mootrcycle starter motor;	Supply Ability:	100000 Pack/Packs per Week;
Package:	Heat shrink tube;	Accessories:	BMS, wire and connector;

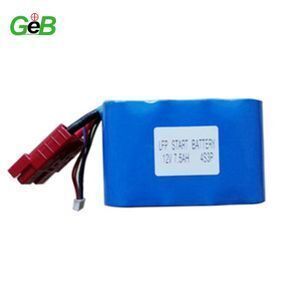

12v 7.5ah ups battery pack for mootrcycle starter motor

Item	Specification
Nominal Capacity	7.5Ah (0.2C, 2.75V discharge)
Minimum Capacity	7495mAh ( 0.2C, 2.75V discharge)
Charging Voltage	4.35V±0.05V
Nominal Voltage	12V
Charging Method	CC-CV
Charging Method	(constant voltage with limited current )
Standard Charging Time	Standard charge: 3.0hours
Standard Charging Time	Rapid charge: 2.5hours
Max. Charge Current	can be customized (ambient temperature 25°C)
Max. Discharge Current	can be customized (ambient temperature 25°C)
Cell Weight	450g max.
Operating Temperature	Charge: 0 to 45°C
(Ambient)	Discharge: -20 to 60°C
Storage Temperature	1 year: -20 to 25°C
	3 months: -20 to 45°C
	1 month: -20 to 50°C

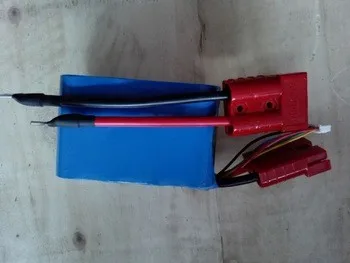

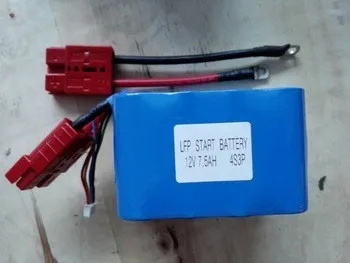

Closer look

Features&Application

Key Features

1.Extremely safe, no explosion, no fire under collision

2.Strong over-discharge resistance and charge retention

3.Strong charging acceptance and quick-charging capability maintenance-free and no acid or water for maintenance in usage

4.Large capability and long life for all high power output applications

5.Environmentally friendly non-toxic, non-contaminating, no rare metal.

6.Low self-discharge and good discharge performance at low temperature 7.Excellent large current discharge performance especially in startup and climbing

Application

Company Information

General Electronics Battery Co., Ltd. is a Sino-American jointventure company integrates R&D,

manufacture and sales Fortune Global 500 lithium battery customers special supplier Over 1000 different sizes and capacities of batteries.

FAQ

1.Q: what functions can the BMS of the battery pack?

A: The BMS have Over-charge protection, Over-discharge protection, Over-current protection, Short-circuit protection, Temperature protection. More functions of BMS can be customized.

2.Q: What is vibration test?

A: Pack installed onto the vibration desk with clamps. During the test , equipment parameters under normal condition, Nickel film without shedding ,no scratch, the voltage is OK.

3.Q: What is drop test?

A: Packs dropped from a height of 0.5 meter to cement ground, total drop times are 6. After that, Nickel film

without shedding, no scratch, the voltage is OK.

4.Q: How to use the battery pack correctly?

A: When you use the battery pack, please notice as below:

Charge: Connecting the battery pack to the charge controller, connect the charger to recharge.

Discharge: Connecting the battery pack to the load ,connect the load to discharge.
