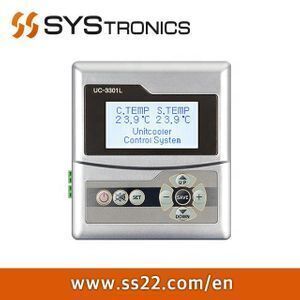

Integrated Unit Cooler Controller / UC-3301L

Supplier: SYSTRONICS CO., LTD.
Region: Gyeonggi-do, South Korea
Contact: Mr. Jang sung chang
Price: $107.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Operation humi.:	5 ~ 90% (Non condensing);	Port:	Incheon;
Output contact capacity:	250VAC, 5A (Relay output);	Output voltage:	100 ~ 220VAC, 50/60Hz (Main fuse 3A / 250V);
Comms. port:	2 Port (RS-485);	Payment Terms:	L/C,T/T;
Packaging Detail:	Package Carton Box with SYSTRONICS Logo;	Input port:	3 Port (Non powered contact);
Place of Origin:	Gyeonggi-do South Korea;	Brand Name:	SYStronics;
Body weight:	358g;	Sensor port:	1 Port (NTC : 10K at 25℃ ±1%);
Input power:	100 ~ 220VAC, 50/60Hz;	Supply Ability:	100 Piece/Pieces per Week;
Output port:	6 Port (Input power output);	Operation temp.:	-10 ~ 60℃ (Non condensing);

Product Description

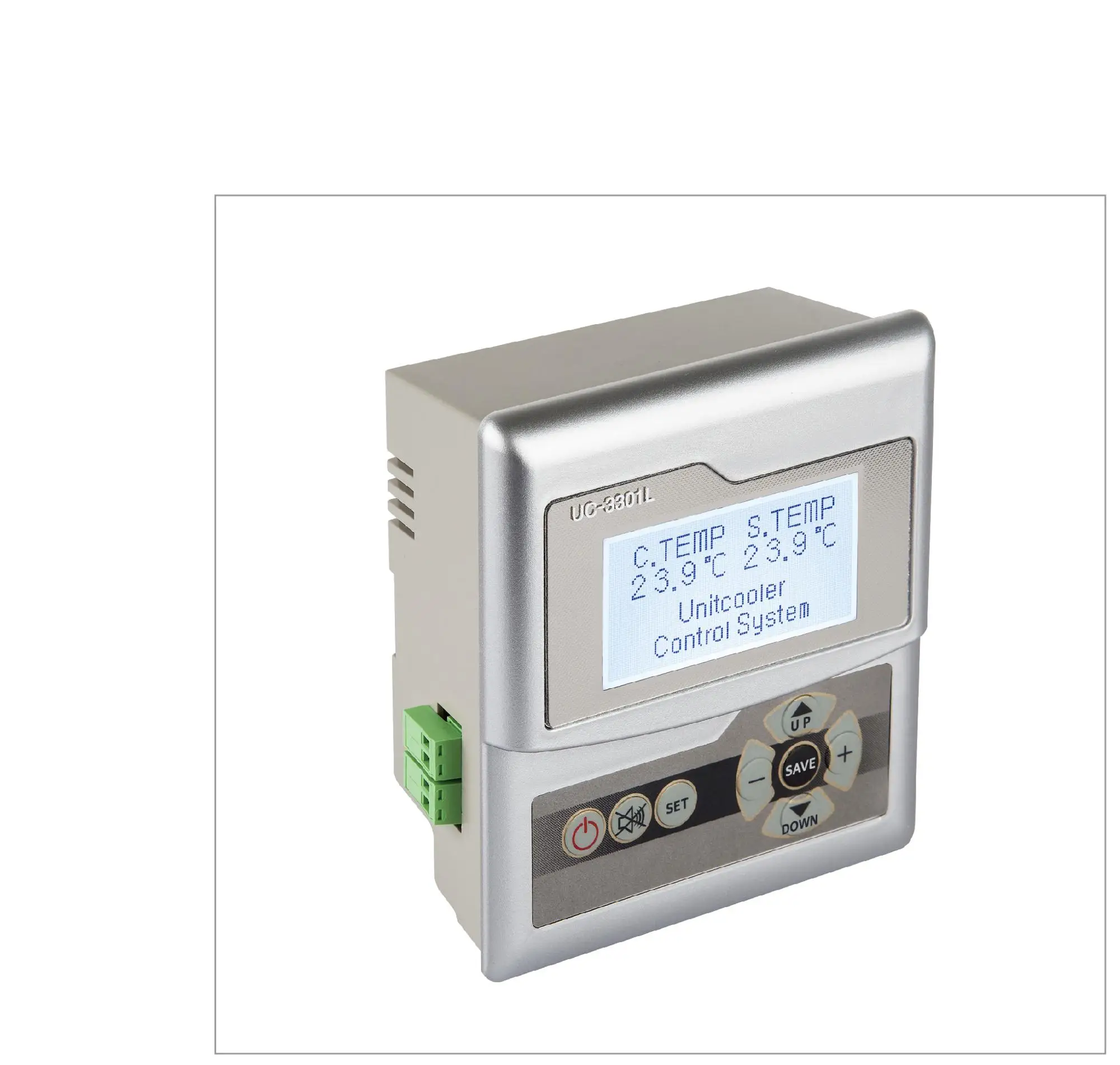

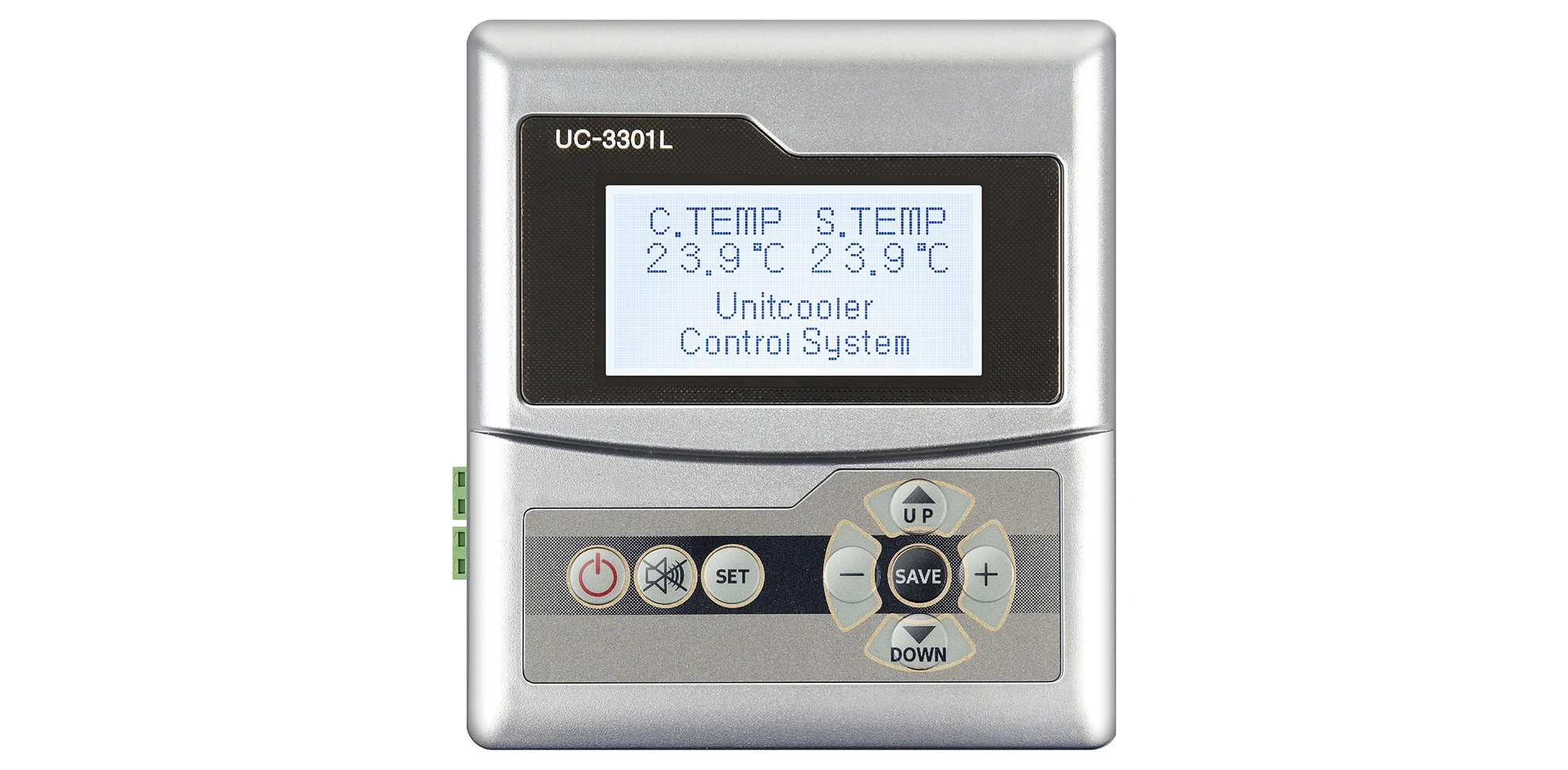

UC-3301L

Integrated Unit Cooler Controller

LCD display is applied to make it visually convenient for checking operation and alert status of
the controller to enhance the visibility of the product. The display and input / output board are
integrated so that installation and management is easy and remote management is possible by
communication function. It is a compact type designed to make control of low temperature storage convenient. It has various functions such as cooling and heating, automatic and manual
defrosting, pump down, and airflow delay. And It can be linked with remote management system
using RS-485 communication.

Specificaion

Feature

• Cooling / heating / automatic, manual
defrost function

• Pump down / cooling and blowing delay
function after defrosting

• Low temperature / high temperature
alarm setting function

• Remote control by RS-485 comms.

Integrated unit cooler controller UC-3301L

Item	Contents	Remarks
Input power	100 ~ 220VAC, 50/60Hz	·
Output voltage	100 ~ 220VAC, 50/60Hz	Main fuse 3A / 250V
Output contact capacity	250VAC, 5A	Relay output
Input port	3 Port	Non powered contact
Output port	6 Port	Input power output
Sensor port	1 Port	NTC : 10K at 25℃ ±1%
Comms. port	2 Port	RS-485
Operation temp.	-10 ~ 60℃	Non condensing
Operation humi.	5 ~ 90%	Non condensing
Storage temp.	-20 ~ 60℃	Non condensing
Body weight	358g	·
Guide weight	63g	·

Normal type cable sensor SCTS-01 / Basic type standard sensor

Item	Contents	Remarks
Temperature range	-45 ~ 80℃	·
Accuracy	NTC : 10K at 25℃ ±1%	·
Sensor weight	58.0g	Cable basic 3M standard

Advanced type NTC sensor SCTS-02 / Selectable type option sensor

Item	Contents	Remarks
Temperature range	-45 ~ 105℃	·
Accuracy	NTC : 10K at 25℃ ±0.5℃	·
Sensor weight	37.5g	Cable basic 3M standard

Well type NTC sensor SCTS-04 / Selectable type option sensor

Item	Contents	Remarks
Temperature range	-45 ~ 80℃	·
Accuracy	NTC : 10K at 25℃ ±1%	·
Sensor weight	84.0g	Cable basic 3M standard

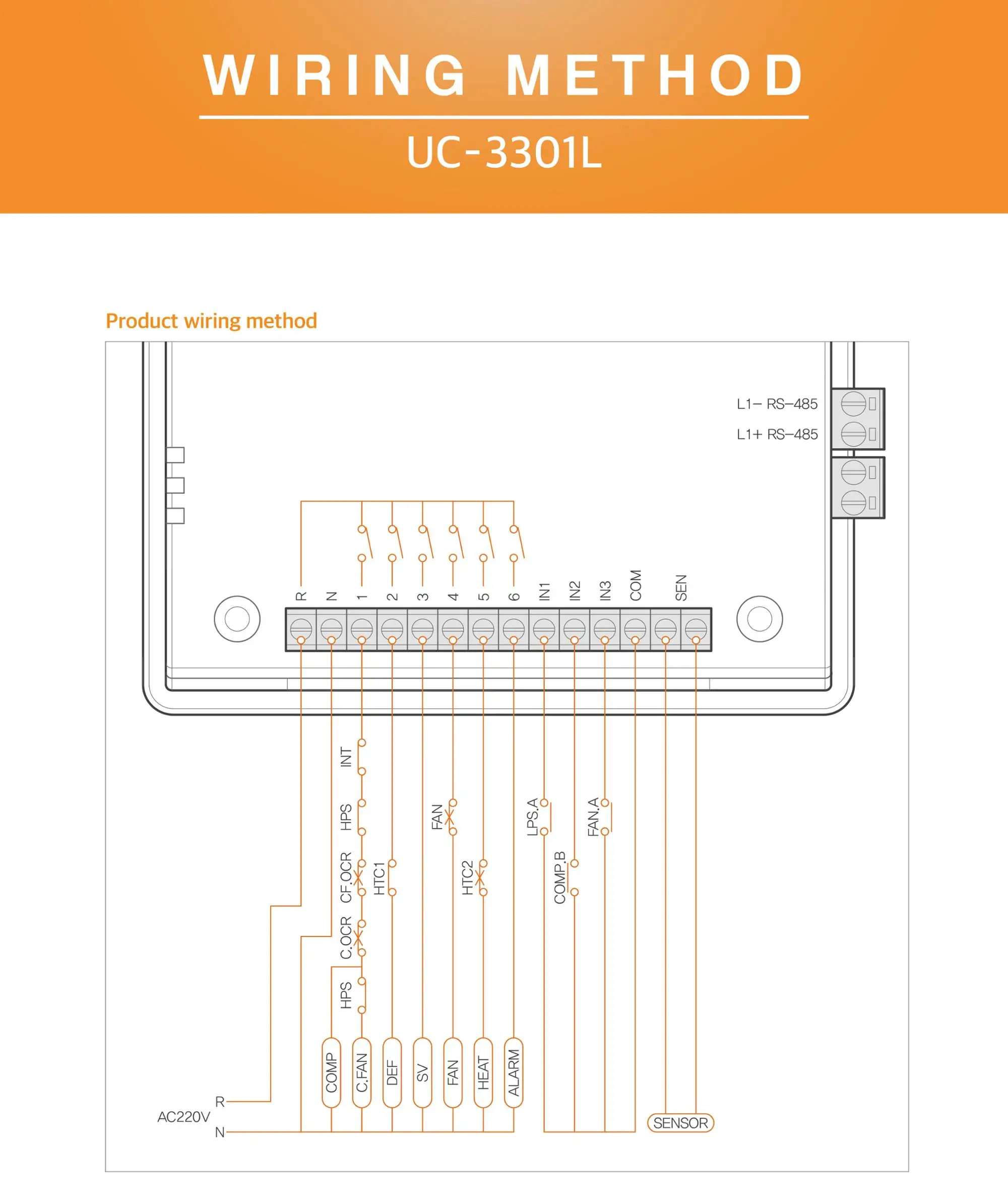

Wiring Method

Input / output specification

Input
IN1	LP (A contact)
IN2	Comp (B contact)
IN3	Fan (A contact)

Output
DO1	Compressor	DO4	Fan
DO2	defrost	DO5	Heater
DO3	Solenoid valve	DO6	Total alarm

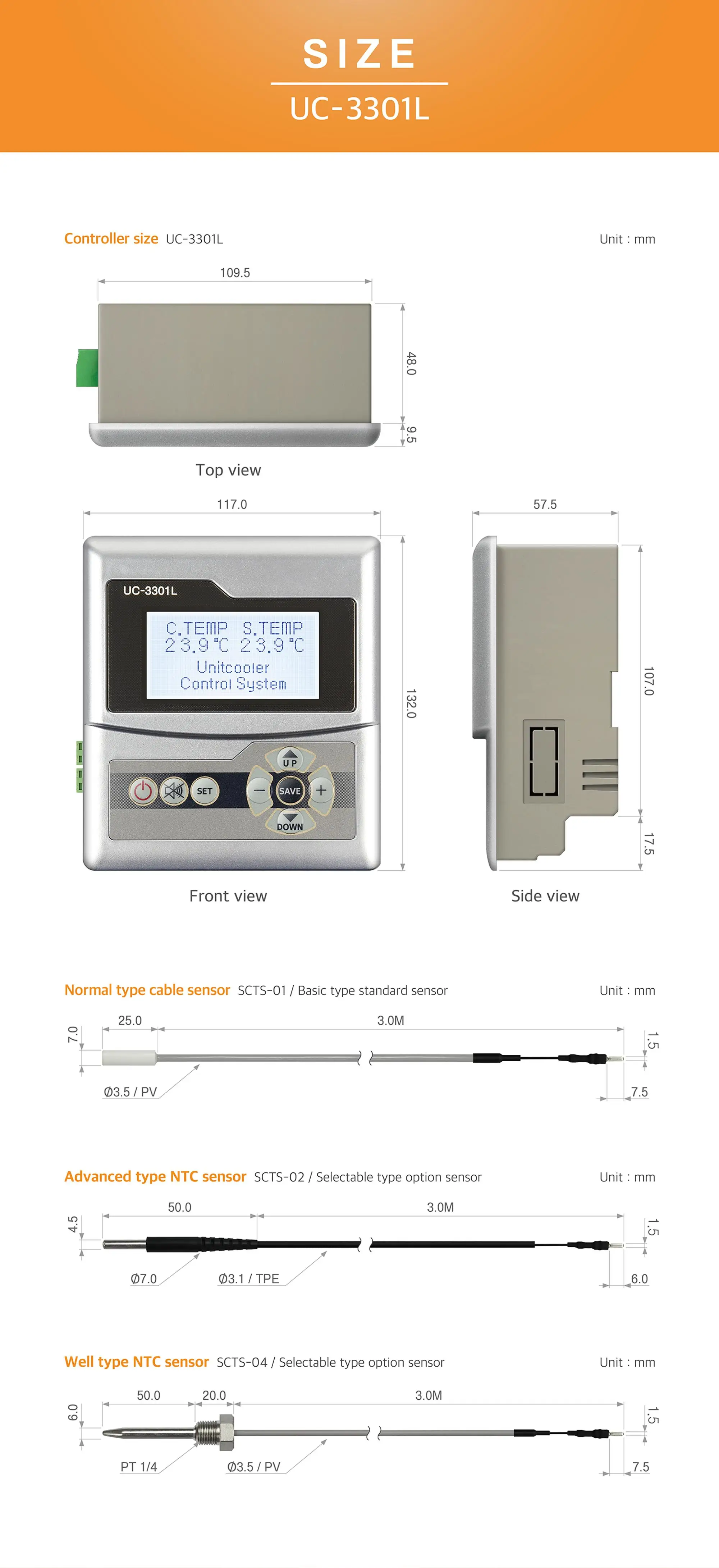

Size

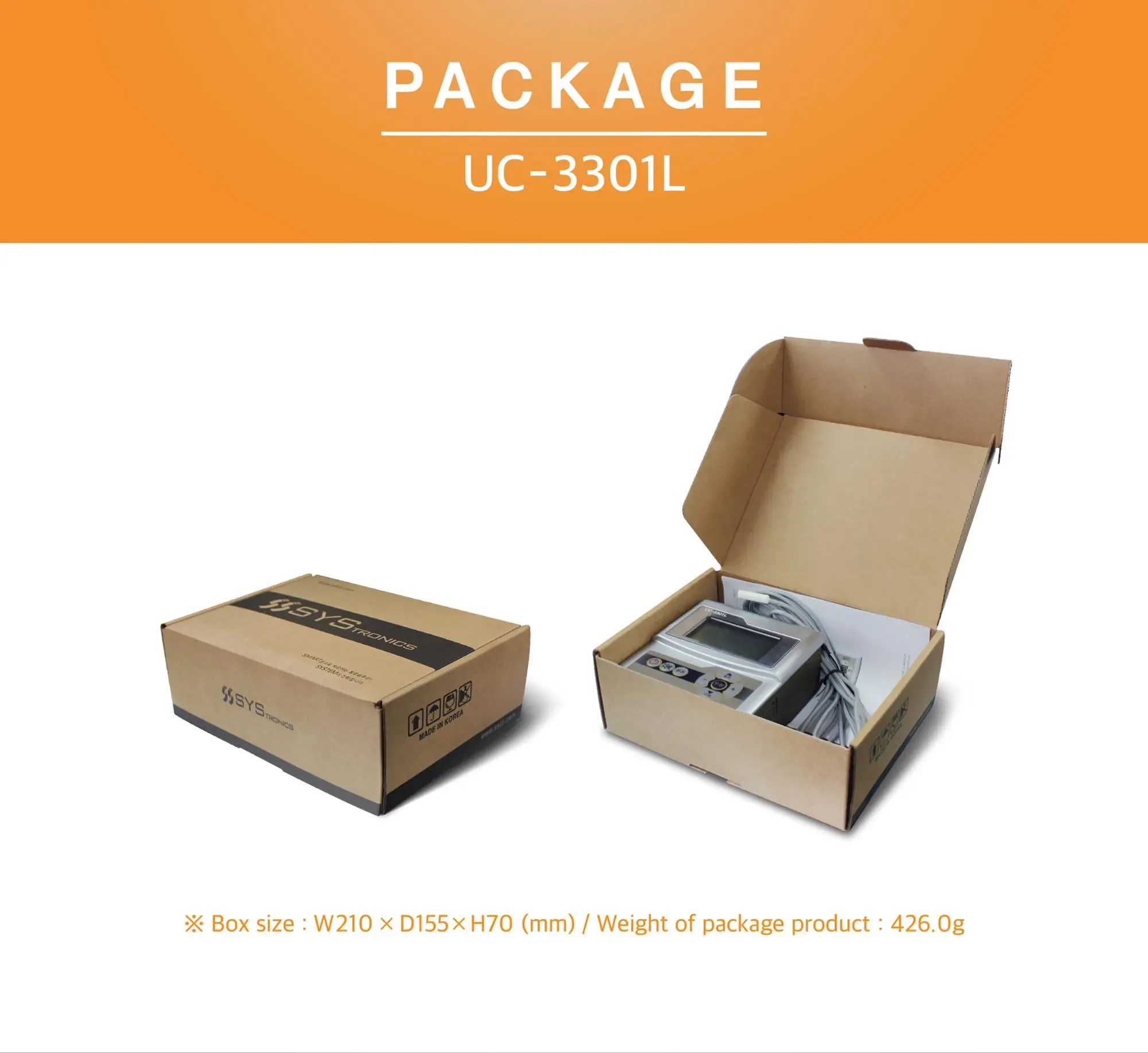

Package

Our Company

Exhibition

Certification
