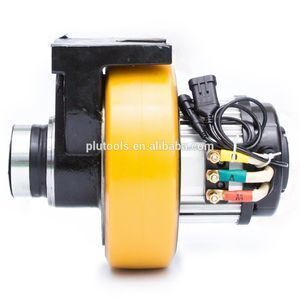

Plutools AC24V 1500W Horizontal AGV Wheel 1100kg load capacity differential drive system

Click here to contact

Product details

Brand Name:	PLUTOOLS;	Motor Rated Power:	1500;
Applicable Industries:	Forklifts, AGV, plotters, electronics equipment;	After-sales Service Provided:	Field maintenance and repair service;
Single package size:	40X40X40 cm;	Battary Voltage:	24V;
Selling Units:	Single item;	Wheel Diameter:	250mm;
Package Type:	Wooden case;	Place of Origin:	Shanghai China (Mainland);
Item:	PLT-250P1500A-24H;	Gear Ratio:	31.43i;
Motor torque:	6.37Nm;	Rated Speed:	2250Rpm;
Warranty:	1 Year;	Single gross weight:	55 KG;
Max Wheel Load:	1100KG;	Rated current:	64A;
Max speed:	0.96m/s;

Product Description

Reference No.	1	2	3	4
Model Name	PLT-250P1500A-24H	PLT-250P1500A-48H	PLT-250P1500M-24HS	PLT-250P1500M-48HS
Traction motor type	ACIM	ACIM	ACIM	ACIM
Rated Power(W)	1500	1500	1500	1500
Battery voltage	24	48	24	48
Traction motor rated speed(RPM)	2250	2250	2250	2250
Traction rated current(A)	64	32	64	32
Traction motor torque(Nm)	6.37	6.37	6.37	6.37
Traction gear ratio	31.43	31.43	31.43	31.43
Traction gear torque(Nm)	160	160	160	160
wheel diameter(mm)	250	250	250	250
Wheel width(mm)	80	80	80	80
Mounting height(mm)	264.5	308.5	264.5	308.5
Max.turning radius(mm)	-	-	242.5	242.5
max.load(kg)	1100	1100	1100	1100
max.speed(m/s)	0.93	0.93	0.93	0.93
Steering Motor
Steering motor type	-	-	Brushed DC	Brushed DC
Steering Power(W)	-	-	400	400
Steering rated current(A)	-	-	24	12
Steering gear ratio	-	-	58.22	58.22
Steering motor torque(Nm)	-	-	1.27	1.27
Steering gear torque(Nm)	-	-	60	60
Steering motor rated speed(RPM)	-	-	3000	3000
