PSA Nitrogen Generator for Metal Annealing,Petrolume&oil ,Chemical fiber,etc

Supplier: Jiangsu Tongyue Gas System Co., Ltd.
Region: Jiangsu, China
Contact: Ms. Vera zhang
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Payment Terms:	L/C,T/T;	Supply Ability:	50 Set/Sets per Month;
Delivery Detail:	Shipped in 35 days after payment;	Application:	nitrogen making;
Brand Name:	TRUE;	Port:	Shanghai;

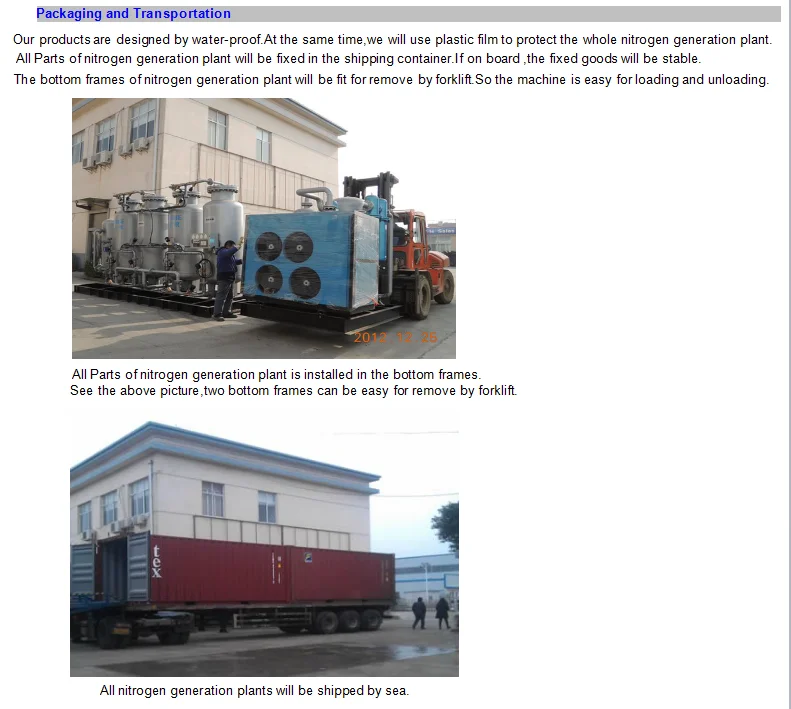

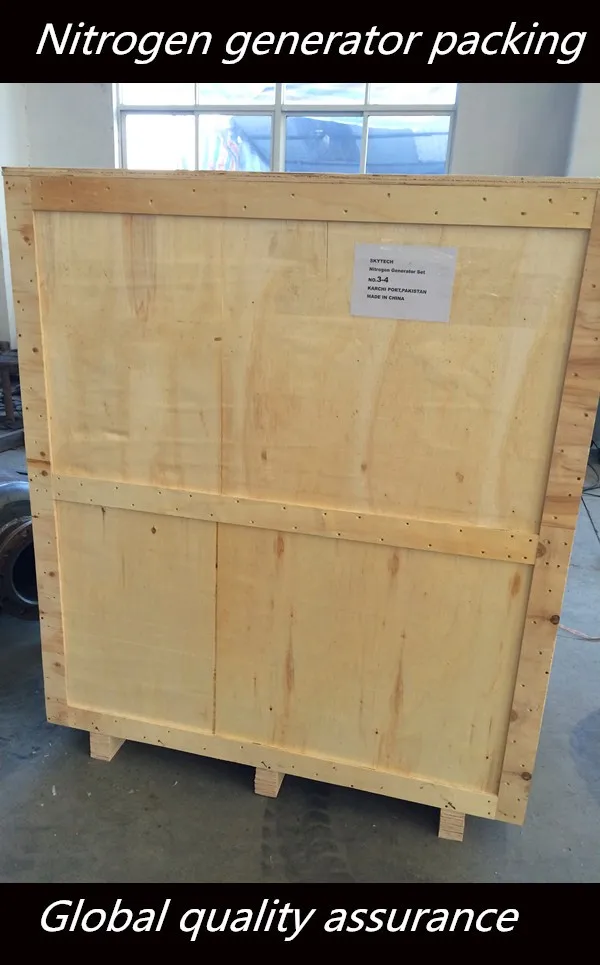

Packaging Detail:	standard Plywood packing,PE packing;	Place of Origin:	Jiangsu China (Mainland);
Certificate:	ISO9001:2008;	Model Number:	TY550-295;

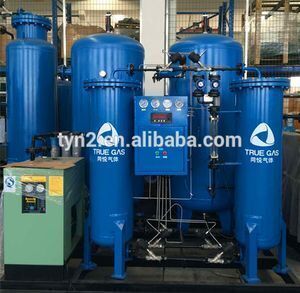

1. PSA Nitrogen Generator

Model:		TY550-295
Nitrogen Capacity		550Nm3/H
Working Pressure:		0.8Mpa(8bars)
Nitrogen Purity		99.5%(vol)
Dew Point		(-)40 degree
Outlet Pressure		0.1-0.65Mpa(adjust)
Working Voltage		220V/50HZ/5KW

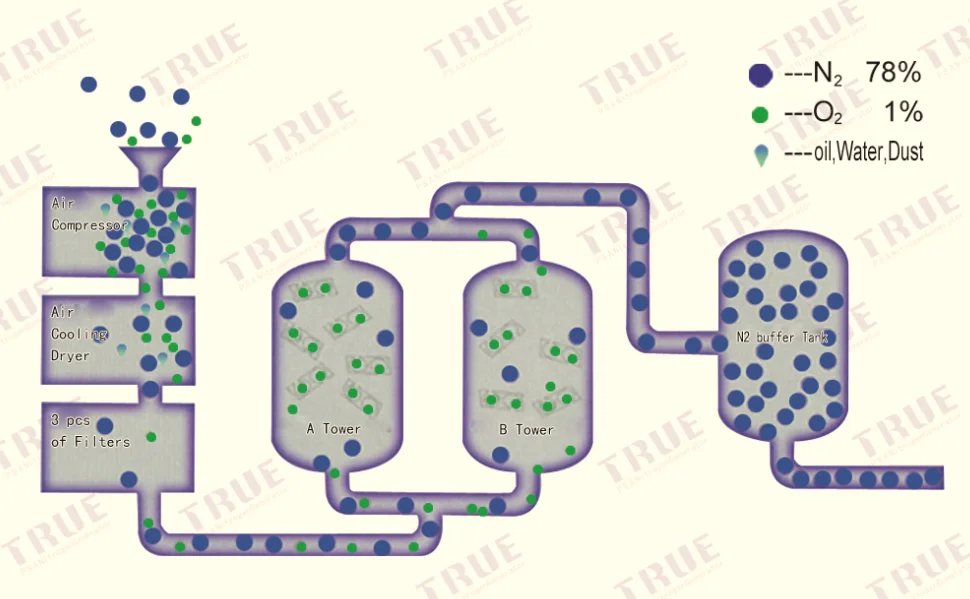

2.Working flow of PSA nitrogen Generator

Working Principles

PSA means Pressure Swing adsorption . As we know there are about 21% oxygen and 78% Nitrogen in the compressed air . When O2 &N2 passing through the carbon molecular Sieve(cms)bed at a certain pressure ,The CMS will preferentially adsorb O2 than N2. N2 will go through as a product gas at pressure while A tower is in the adsorption phase ,B tower is de-pressuring at which time adsorbed O2 will be released to the atmosphere. The A,B tower cycle is then repeated .

3.Application

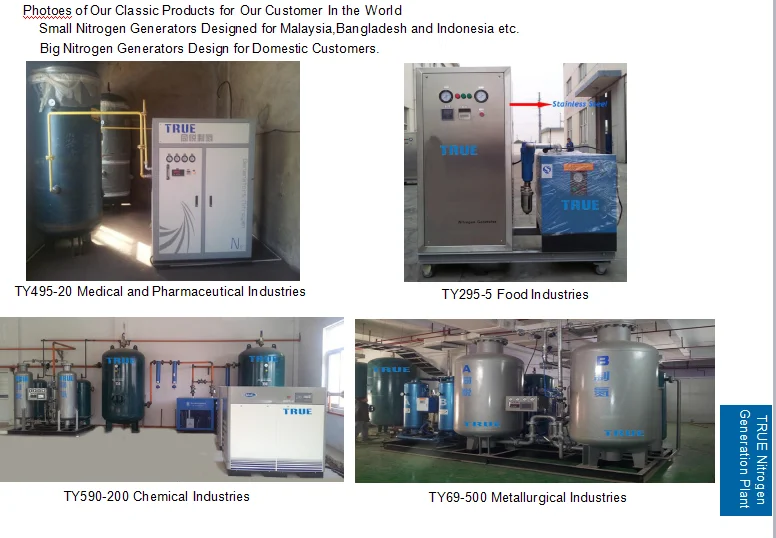

Food packing, Food storing, Electric & Electronic industry, Petro-gas & Oil field, Chemicals & Petro-chemicals, Coal-mine, Metallurgy, Pharmacy, SMT, Fire-resistance, lab, Air driving, and so on...

1. Metallurgy: For anneal protection, agglomeration protection, nitrogenizing, furnace washing and blowing, etc. Used in fields such as metal heating treatment, powder metallurgy, magnetic material, copper process, metallic mesh, galvanized wire, semiconductor, etc.

2. Chemical and new material industries: For chemical material gas, pipeline blowing, gas replacement, gas protection, product transport, etc. Used in fields such as chemical ,urethane elastic fiber, rubber, plastic, tyre, polyurethane, biological technology, intermediate, etc.

3. Electronic industry: For encapsulation, agglomeration, anneal, deoxidization, storage of electronic products. Used in fields such as peak welding, circumfluence welding, crystal, piezoelectricity, electronic porcelain, electronic copper tape, battery, electronic alloy material, etc.

4.Assembly Diagram
