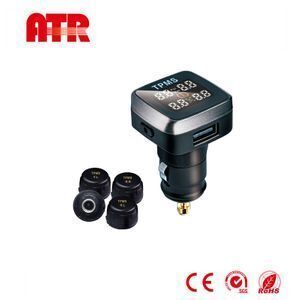

Wireless automatic car tire pressure monitoring system
- 47.50 >=200 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Internal sensor working humidity: | 5-98%; | Internal sensor battery life: | 6 years above; |
| External sensor working temperature: | 5-90℃; | Brand Name: | A.T.R; |
| Warranty: | 1 Years; | Packaging Detail: | Blister in card,standard packing; |
| Display Operating Humidity: | 5-98%; | Internal sensor RF frequency: | FSK 433.92Mhz; |
| Voltage: | 12 +/- 3V; | Certification: | CE; |
| Type: | Digital; | Max Pressure: | < 100 Psi; |
| Model Number: | 97143T; | Delivery Detail: | Shipped in 25 days after payment; |
| Display working temperature: | -40℃- +85℃; | Port: | Shenzhen; |
| Display Static Current: | < 25mA; | External sensor static current: | < 0.7 uA; |
| Supply Ability: | 100000 Piece/Pieces per Month tire pressure monitoring system; | Payment Terms: | L/C,T/T; |
| External sensor working current: | < 12mA; | Place of Origin: | Guangdong China (Mainland); |
Wireless automatic car tire pressure monitoring system
Car tire pressure gauge,auto tire pressure gauge,car tire pressure monitor
Product Description
Product Details
- Automatic connection from sensor to display.
- Warning when the tyre pressure is too high or too low.
- 1-Minute Plug & Play ,easy installation.
- Additional USB port is provided on dispay.
- Fit for 99% of 4-wheel car on the market.
- Accurate data display on LCD screen.
- Wireless automatic data transfer.
- Protect your tyre and prolong its lifetime.
- Safe lock; sensor will not loose during driving.
- Japanese battery can use for 2-3 years.

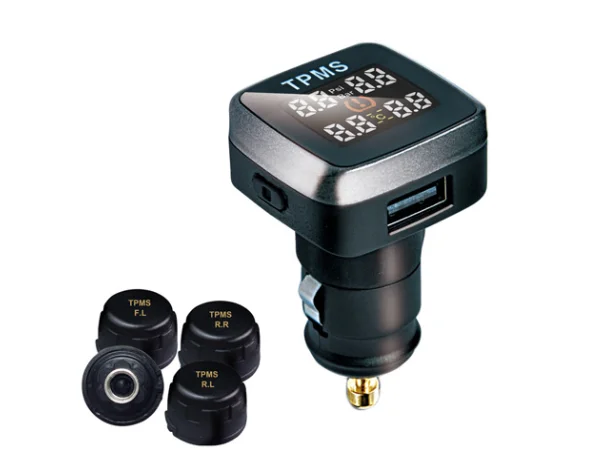

Product Picture:
Internal Sensor Technical Parameter
| Working temperature | -40℃ to +125℃ |
| Working humidity | 5-98% |
| Weight | 43g (not include the valve 24g) |
| Dimension | 60.5*30*20 MM |
| Battery life | 6 years above |
| Pressure detecting range | 0-9Bar(0-131Psi) |
| Temperature detecting range | -40℃-90℃ |
| RF frequency | FSK 433.92Mhz |
External Sensor Technical Parameter
| Sensor weight | < 10g |
| Tire pressure range | 0-9Bar(0-131Psi) |
| Battery model | CR1632 |
| Battery life | more than 3 year |
| Static current | < 0.7 uA |
| Working current | < 12mA |
| Working temperature | -40℃ - + 125℃ |
| Tire pressure tolerance | ± 0.1 / ± 1Psi |
| Temperature tolerance | ± 2℃ |
| Working temperature | 5-90℃ |
Display Technical Parameter
| Input voltage | 12 +/- 3V |
| Static Current | < 25mA |
| Operating Temperature | -40℃ ~ +85℃ |
| Operating Humidity | 5-98% |
