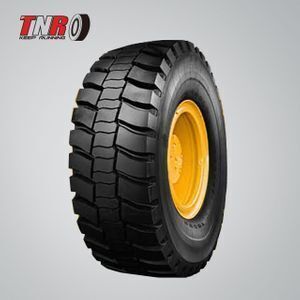

Belaz 7512 tire 3300R51

Supplier: Truck Tires
Region: Shanghai, China
Contact: Ms. Crystal Chen
Price: $9700.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Euclid/Hitachi:	EH2000 (R130B;	Kress:	200C11;
Payment Terms:	L/C,T/T;	Pattern:	E-4;
Unit Rig:	MT 3300AC, MT3300, TMT 150AC, TMT150;	Port:	Qingdao;
Packaging Detail:	According to customer's requirement;	Rimpull:	CW200, R3051, R3351;
Brand Name:	TNR;	Tire Design:	Radial;
Certification:	DOT;	OEM No.:	DOT 66;
Model Number:	3300R51;	Width:	> 255mm;
Type:	Tubeless;	Belaz:	7512, 75128, 75131, 75132, 7514, 75145;
Truck Model:	Cater pillar, Cat, Deer;	Supply Ability:	50000 Piece/Pieces per Month;
Komatsu:	530M, HD1500-5;	Place of Origin:	Shandong China (Mainland);

3300R51

Pattern Description:

1.Rock-deep tread with tough lug and sidewall protectors.
2.Specially designed for large dump trucks engaged in earthmoving.
3.High resistance to cutting and chipping for long tread life.

Specification:

Tire Size	Star Rating	Load Index & Speed Symbol	TRA Code	Tread Depth (mm)	Tube Type	Standard Rim (Rim Width & Flange)	Max load Pressure
							10km/h	50km/h	10km/h	50km/h
							Kg	Kg	Kpa	Kpa
27.00R49	2 star	223B	E-4	76	Tubeless	19.50-4.0	45000	27250	825	700
30.00R51	2 star	230B	E-4	82	Tubeless	22.00-4.5	56000	33500	825	700
33.00R51	2 star	235B	E-4	88	Tubeless	24.00-5.0	65000	38750	825	700
36.00R51	2 star	241B	E-4	92	Tubeless	26.00-5.0	80000	46250	825	700
37.00R57	2 star	246B	E-4	94	Tubeless	27.00-6.0	82500	51500	825	700
40.00R57	2 star	250B	E-4	96	Tubeless	29.00-6.0	100000	60000	825	700
