Best Quality True Color Auto darkening welding helmet EN379

Supplier: Shaodong Lida Tools Co., Ltd.
Region: Hunan, China
Contact: Mr Tom Zhang
Price: $1.00 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Product Name:	Solar Auto Darkening Welding Helmet;	Dark Shade No:	Dual DIN5-9/DIN9-13;
Cutting Function:	Yes;	Brand Name:	HAILI;
Packaging Detail:	Auto Darkening Welding Helmet Package: 6pcs/CTN; Packing Dimension: 724932cm N.W.: 4.8KG G.W.: 6.9KG;	Model Number:	WH-855H;
Sensors:	4;	Payment Terms:	T/T,Western Union,MoneyGram;
Grinding Function:	Yes;	Solar Powered:	Yes;
Sensitivity:	Stepless Adjustment;	Dark Shade Control:	Outside Stepless Adjustment;
Light Shade No:	DIN4;	Supply Ability:	30000 Piece/Pieces per Month;
Switch Time:	1/30000S;	Place of Origin:	Hunan China (Mainland);
Port:	NINGBO/SHANGHAI;	Auto-Darkening:	Yes;
Power Supply:	Solar Cells +Lithium Battery;	Helmet Material:	Nylon;
Cartridge Size:	Filter 13311410MM;	Delay Time:	0.2-1.0S Stepless Adjustment;

1, Description & Specification

Auto darkening welding helmet are designed to protect the eyes and face from sparks, spatter, and harmful radiation under normal welding conditions. Auto-darkening Filter automatically changes from a clear state to a dark state when an arc is struck, and it returns to the clear state when welding stops. This LCD Automatic Welding Helmet with high quality is made from rugged and durable materials that ensure longevity and durability day in and day out. With the massive viewing area, it can allow you to see your weld from all perspectives, also this helmet can use while cutting, shade range DIN5-8, In addition, the helmet is used as a protective shield by not darkening while grinding.

Product Name	Expert Auto darkening welding helmet en379
Optical class	1/1/1/1
View area	9888mm 3.863.46 in
View area	DIN4
Dark state	Available shades, DIN5-8/9-13
Switching time	1/30,000S from Light to Dark
Delay time	Adjustable from 0,2 S (fast) to 1.0 S (slow)
Sensitivity control	Low to high stepless adjustment
Power supply	Solar Cells & Replaceable Lithium battery (CR2450)
Welding/Grinding model	Can be selected
Low battery indicator	Yes, Red LED light
TIG Rated	≥ 5 amps / DC; ≥ 5 amps / AC
ADF Self-check	Yes
Cutting funtion	Yes
Sensors	4
Power on/off control	Fully automatic
Material / Weight	Nylon(PA) / 510±5g
Operating/Store Temp	-10°C to +55°C / -20°C ~+ 70°C
Standards	CE EN75 & EN379, ANSI Z87.1, CSA Z94.3
Application range	Stick Welding (SMAW); TIG DC&AC; TIG Pulse DC; TIG Pulse AC; MIG/MAG/CO2; MIG/MAG Pulse; Plasma Arc Cutting (PAC); Plasma Arc Welding (PAW); Air Carbon Arc Cutting (CAC-A); Grinding.

2, Advantages

Professional Manufacturer of Auto-Darkening Welding Helmet Advantages:

1. Be suitable to all kinds of welding mode.

2. Welding, Cutting & Grinding function can be selected.
3. When arc is struck, Auto-darkening Filter will turn from clear state to dark state, response time is less than 1/25000S.
4. With non-grade adjustable shade number from DIN5 to DIN13.
5. The high performance of Auto-darkening Filter provides to the user’s eyes and face a full protection against UV and IR radiation during the entire welding process, even in the clear state.
6. Auto recovery delay time fast or slow can be selective.
7. Sensitivity adjustment: you can adjust sensitivity (low to high) of the darkening filter according to your working conditions. At the MIG / MAG(co2) / TIG welding or other small electric ARC welding can choose high sensitivity.

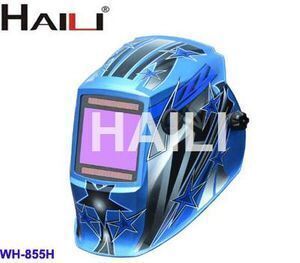

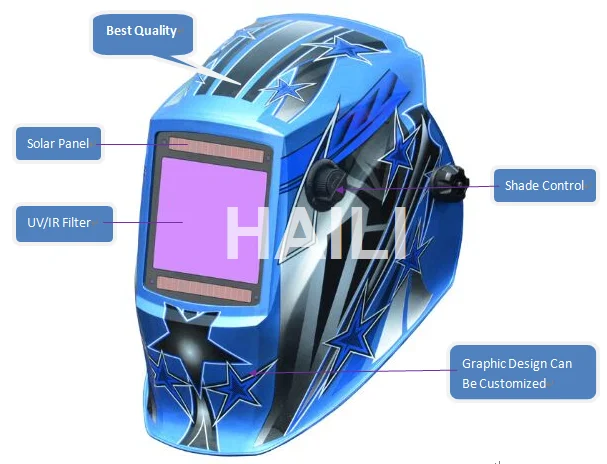

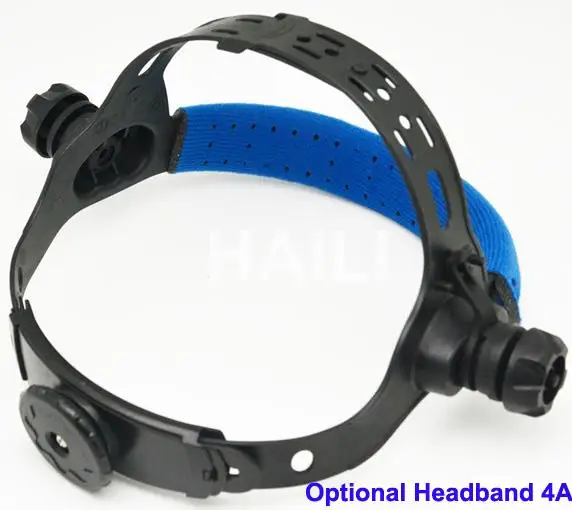

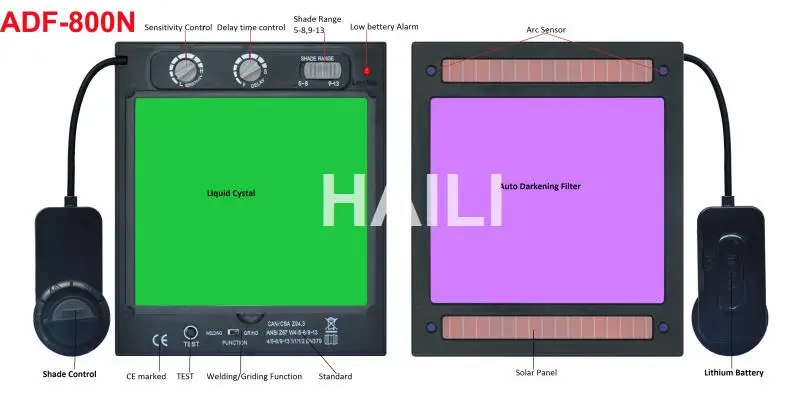

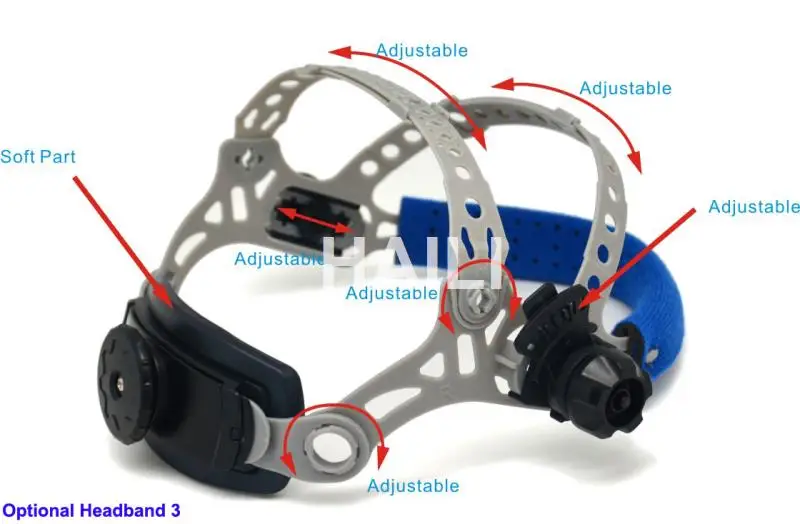

3, Product Pictures
