BWS10KW-96V wind solar hybrid off grid power system battery controller details
Type:wind and solar hybrid system;wind turbine:5000W;
Brand Name:BANGZHAO OR OEM;Packaging Detail:carton or wooden BWS10KW-96V wind solar hybrid off grid power system battery controller;
Supply Ability:8888 Piece/Pieces per Year 10KW-96V wind solar hybrid off grid power system controller;Charge mode:PWM charging;
Payment Terms:T/T,Western Union,MoneyGram,Paypal;Model Number:BWS10kw-96v;
Port:Ningbo or Shanghai or Shengzhen;Place of Origin:Zhejiang China (Mainland);
Warranty:1 Year;Delivery Detail:Shipped in 7 days after payment;

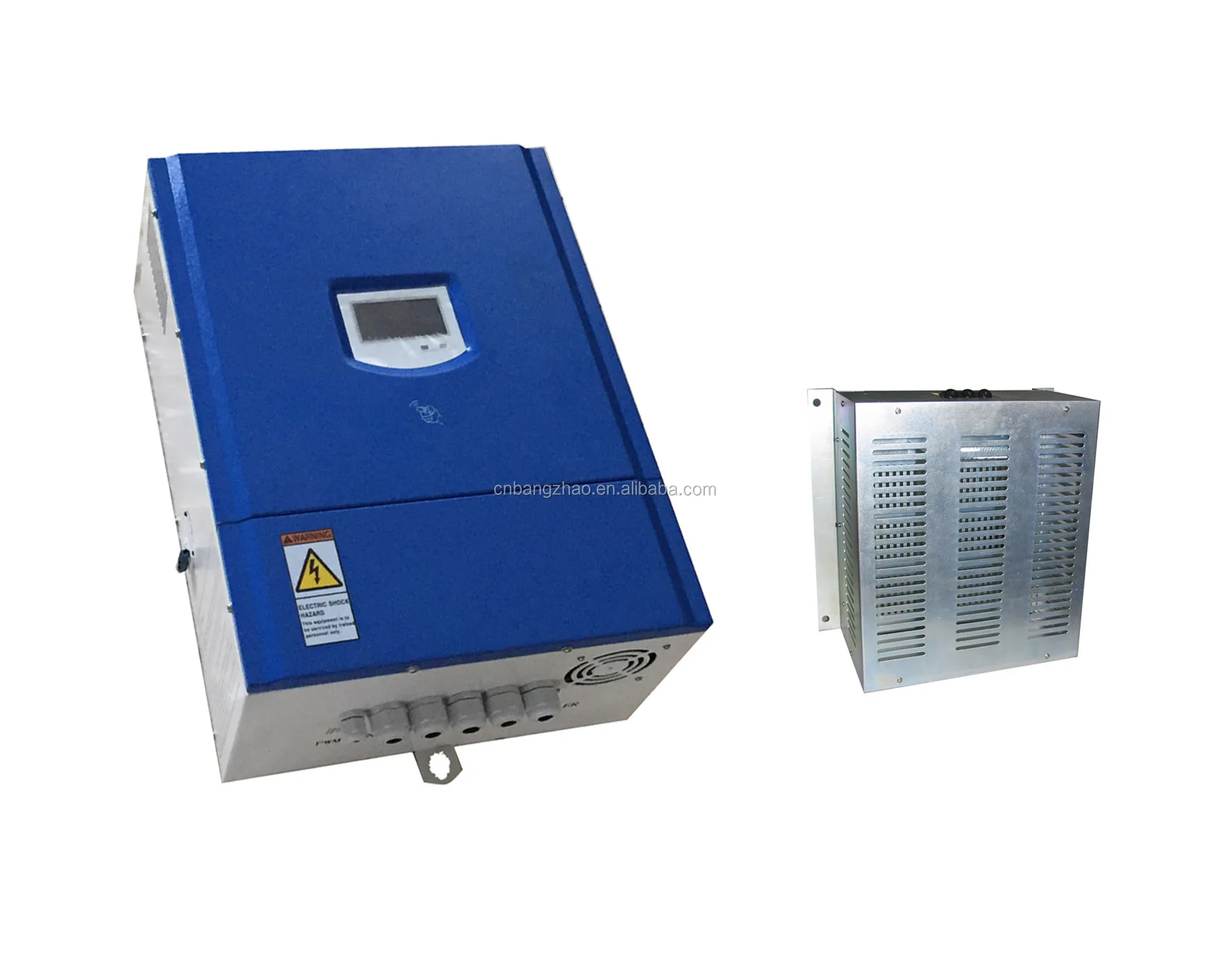

BWS10KW-96V wind solar hybrid off grid power system battery controller

Product Description



Product Characteristic for 10KW-96V wind solar hybrid off grid power system controller

The big screen LCD display. Clearly present the working status of the wind turbine, solar panel, battery and controller.(Wind turbine voltage, current, power display ;solar voltage, current, power display, battery charging current, voltage, charging power, power display.)

Two sets of control systems:PWM constant voltage system and three-phase dump load system.

PWM constant voltage control is 120% of the rated power of the wind turbine . In case exceeding of PWM’s capacity, the three-phase dump load will automatically start immediately to ensure safe running of the overall wind turbine system.

Under the circumstances of disconnecting or damage of the battery, the three-phase dump load will start automatically to avoid the idling for wind turbine and the occurrence of runaway accident.

Under the strong or super-strong wind conditions PWM control to ensure battery charged by the wind turbine with constant voltage and current.

The protection function of reverse connection, disconnection and damage-resisting of the battery will be applied.

Over-charging protection of the battery: When the battery is full (the battery voltage getting 125% of the rated voltage), the controller will carry out three-phase dump load automatically to stop charging the battery.

Auto recharging of battery: When the battery voltage reduces to 108% of the rated voltage, it stops three-phase dump load to recharge battery automatically.

For the different wind turbine type, the controller can be equipped with mechanical yawing, furled empennage, mechanical or hydraulic, pneumatic, electric magnetic and other brake functions.

The inside of the controller is equipped with surge arrester. Contain the over voltage into the wind turbine under the bearable voltage of the equipment or system. On the other way, to conduct the strong lightening current into the earth directly to avoid any damage of equipment.

Ammeter and voltmeter indication: Indicate the charging current and voltage of the battery.

The controller is equipped with manual three-phase dump load switch. To using this switch, the wind turbine will carry out three-phase dump load forcibly.

 Optional communication Mode:RS232,RS485,GPRS,USB,RJ45 ect, Can monitor multiple devices running.



Technical Parameters For  10KW-96V wind solar hybrid off grid power system controller

+

Type BWS-

10KW-120Vdc

10KW-220Vdc

10KW-96Vdc

Wind turbine rated power

10KW

10KW

10KW

Wind turbine max. power

20KW

20KW

20KW

Solar panel

3000W

3000W

3000W

Battery

120dc

220dc

96Vdc

Function

Rectifier,charge, control

Display mode

LCD

Display content

Wind turbine voltage, wind turbine current, wind turbine power, solar panel voltage, solar panel current, solar panel power, battery voltage, charge current

PWM constant pressure voltage

>140Vdc

>260Vdc

116Vdc

3-phase load voltage of the wind turbine

150±1Vdc

270±2Vdc

120±2Vdc

Recovery charging voltage of the wind turbine

135 ± 1Vdc

245±2Vdc

108±2Vdc

Stop charge voltage of solar panel

150±1Vdc

270±2Vdc

120±2Vdc

Recovery charging voltage of solar panel

<140Vdc

<260Vdc

<116Vdc

Low-voltage of the battery

100±1Vdc

180±2Vdc

80±2Vdc

Self-provided connecting wire of the battery

>20mm²

>10mm²

20mm²

PWM fuse

100A

63A

100A

Charging fuse

125A

80A

125A

Work environment temperature

-30-60°C

Relative humidity

<90% No condensation

Noise (1m)

<40dB

Degree of protection

IP20(Indoor)

Cooling method

Forced air cooling

*Communication interface (optional)

RS485/USB/GPRS/Ethernet

*Temperature compensation(optional)

-4mv/°C/2V,-35°C~+80°C,

Accuracy:±1°C

Size of the controller (mm)

645*480*330

645*480*330

645*480*330

Weight of the controller

25 Kg

25Kg

25Kg

Size of the load (mm)

760*520*550

760*520*550

760*520*550

Weight of the load

37Kg

37Kg

37Kg



 *Above parameter only for reference

1. Could be custom made to user specifications. 2, Could have solar power control subject to user demand.
