2018 cheapest vertical wind generator 100w high efficient

Supplier: Shenzhen Green Electricity Kang Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms. Aida Qi
Price: $150.00 /set
Min. Order: 1 set

Click here to contact

Product details

max power:	150w;	Packaging Detail:	package for wind generator price: foam, carton and as your requirement;
cut in wind speed:	2.5m/s;	start in wind speed:	1.5m/s;
Type:	Wind Power Generator;	cut out wind speed:	15m/s;
Delivery Detail:	3 working days;	rated DC volatge:	DC12;
rate power:	100w;	Port:	shenzhen;
Place of Origin:	Guangdong China (Mainland);	Product name:	Butterfly vertical wind generator;
Supply Ability:	10000 Set/Sets per Month;	Model Number:	CL-100w;
Brand Name:	Green Elec;	Payment Terms:	T/T,Western Union;

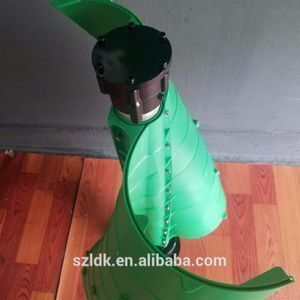

cheapest vertical wind generator price high efficient

Feature:

1. Large power, small volume, low weight, high efficiency
2. Carbon fiber blades, high efficiency of anti-wind ability

3. Blades with the ability of automatically stall protection under strong wind

specification:

Model	C-100	C-100 new	CL-300	CL-300 new
Wind turbine Name	Wind butterfly	Wind butterfly	Wind butterfly	Wind butterfly
Rated power	100W	100W	300W	300W
Rated DC voltage	DC 12V/24V	DC 12V/24V	DC 12V/24V	DC 12V/24V
Rated current	4/8A	4/8A	25A/12.5A	25A/12.5A
Rated speed	350r/m	350r/m	390r/m	390r/m
Max power	150W	150W	350W	350W
Number of blade	5 pcs	5 pcs	5pcs	5pcs
Starting wind speed	2m/s	2m/s	2.5m/s	2m/s
Cut-in wind speed	2.5m/s	2.5m/s	3m/s	2.5m/s
Cut-out wind speed	18m/s	18m/s	18m/s	18m/s
Security wind speed	36m/s	36m/s	36m/s	36m/s
Rated wind speed	13m/s	13m/s	13m/s	13m/s
Engine (generator)	Three-phase permanent magnel generator	Three-phase permanent magnel generator	Three-phase permanent magnel generator	Three-phase permanent magnel generator
Rotor diameter
Blade material 3blades	Carbon fiber reinforced plastics	Carbon fiber reinforced plastics	Carbon fiber reinforced plastics	Carbon fiber reinforced plastics
Output line anti-winding device	FRP (Fiber glass-Reinforced plastics )	FRP (Fiber glass-Reinforced plastics )	FRP (Fiber glass-Reinforced plastics )	FRP (Fiber glass-Reinforced plastics )
Over-speed wind protection	Electromagnetic brake	Electromagnetic brake	Electromagnetic brake	Electromagnetic brake
Life span	15 years	15 years	15 years	15 years
Equipment surface protection	Galvanization plastic coating	Galvanization plastic coating	Galvanization plastic coating	Galvanization plastic coating
Working temperature	-40°C-70°C	-40°C-70°C	-40°C-70°C	-40°C-70°C
N.W.	9kg	10kg	25kg	39kg
Packing material	Carton box and foam material	Carton box and foam material	Wooden case and foam material	Wooden case and foam material
packing dimension	1010505325mm	1010505325mm	2cartons	2cartons
G.W.	12kg	13kg	27kg	41kg
