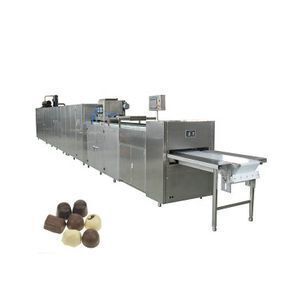

Mini Chocolate Depositing Machine/ Chocolate Bar Making Machine

Supplier: Shanghai Yucho Industrial Co., Ltd.
Region: Shanghai, China
Contact: Ms Icy Wang
Price: $45800.00 /set
Min. Order: 1 set

Click here to contact

Product details

Output product name:	Chocolate;	Warranty:	1 Year;
After-sales Service Provided:	Field installation, commissioning and training;	Function:	Can make three depositor with two nut center filled;
Type:	single/double color/center filled;	Brand Name:	YC;
Application fields:	Snack food factory;	Certification:	CE;
Power(W):	36kw;	Package Type:	export wooden boxes Mini Chocolate Depositing Machine/ Chocolate Bar Making Machine;
Weight:	22 tons;	Selling Units:	Single item;
Condition:	New;	Voltage:	220V/380V;
Machinery Function:	Making chocolate;	Usage:	CHOCOLATE;
Dimension(LWH):	1700016502100mm;	Material:	All Stainless Steel 304;
Motor:	Servo Motor;	Name:	Shanghai Manufacturer Chocolate Ball Coating Machine;
Single package size:	2800X200X150 cm;	Single gross weight:	28,000 KG;
Application:	Chocolate;	After-sales Service Provided:	Engineers available to service machinery overseas;
Place of Origin:	Shanghai China (Mainland);

Mini Chocolate Depositing Machine/ Chocolate Bar Making Machine

Product Description

Product Application

Semi auto or Full Automatic Europe Technology Chocolate Making Forming Machine Product Application

Chocolate Depositing Machine is the dedicated equipment for depositing/molding chocolate at a rationed amount. This chocolate depositing machine series can be used to produce single flavor, two flavors, triple flavors, pastes central filling, nuts central filling and other kinds of chocolates according to different configurations of the machines. This series has two major machine types: semi-automatic and fully automatic and its configurations can be customized according to production needs.

SPECIFICATION FOR Europe Technology ChocolateMaking Forming Machine Line
Model	YC-Q150	YC-Q175	YC-Q510	YC-Q330(3+2)	YC-Q510(3+2)
Capacity(Piece of Mould/min)	6-15	6-15	6-15	6-15	6-15
Whole Machine Power (kW)	9	23	25	28	61
Number of Mould (Piece)	200	280	330	380	410
Mould Size (mm)	275×175×30	330×200×30	510×200×30	330×200×30	510×200×30
Machine Weight (kg)	500	4500	5000	5300	7000
Outside Dimension (mm)	4000×520×1500	16000×1000×1800	16000×1200×1800	18000×1200×1900	1900013002500
YC Chocolate Machine	Enrrope Technology, Grundfos circulation pump with hot water, • PLC Touch screen, SS 304 for all parts, • Refrigeration system: Copland

Main Features

Cheaper and Europe Technology Chocolate Making Forming Machine

1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) All parts are stainless steel.
4) can produce different color center filled chocolate
5) Cheaper and Europe technology

More Machine Video,Pls Click To Contact Us.

certifications

YUCHO GROUP LIMITED

Shanghai Yucho Industrial Co., Ltd. belonging to Yucho Group Limited, for a long time Yucho Group introduce foreign advanced technology, engaged in investing various types of potential food machinery factory, now we have designed and developed the most advanced sets of food machinery used to produce candy, chocolate, cake, bread, biscuit and packing machine that have excellent characteristics such as centralized functions, simple operation and full automatic with high quality, most of products get CE certification.

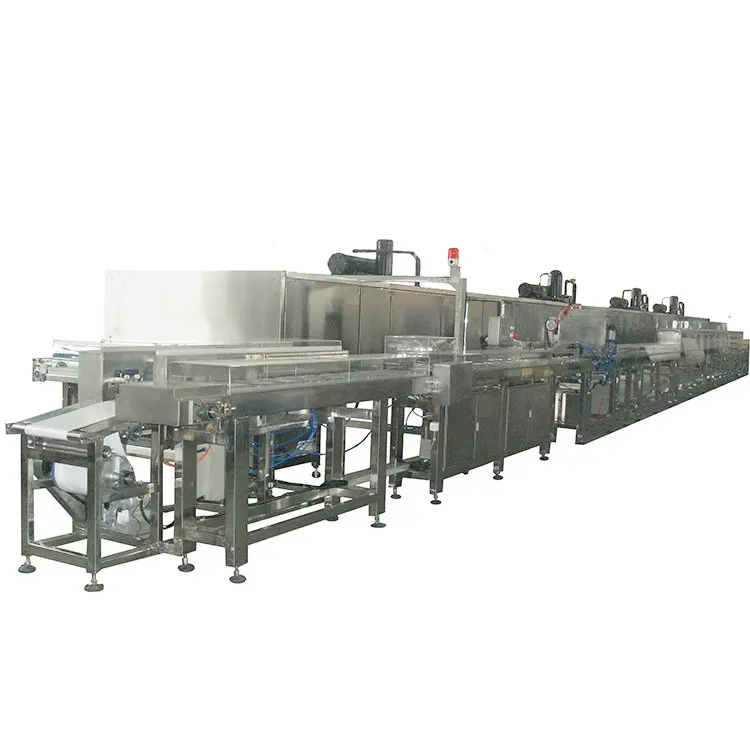

Chocolate Making Machine Production Line Can with center filled nut
