AM-30 Pneumatic Crimping Tools for Kinds of Terminal machine with CE certification Cable tools pneumatic crimper

Click here to contact

Product details

Type:	air crimping tool;	keywords:	air crimping tool;
Power Source:	Pneumatic;	Model Number:	AM-30;
out force:	13.5KN;	Package Type:	carton;
Single package size:	40X40X24 cm;	Weight:	6kg;
Application:	for crimping non-insulated/insulated terminal/wire ferrules;	Product type:	pneumatic crimping machine;
Package:	Carton box or wooden case;	Single gross weight:	5.5 KG;
Brand Name:	LSD;	Color:	yellow/blue;
Place of Origin:	Zhejiang China (Mainland);	Package Preview:	https://sc01.alicdn.com/kf/HTB1O4aRaOnrK1Rjy1Xcq6yeDVXaj.jpg_640x640.jpg;
Selling Units:	Single item;	applicable air pressure:	0.4-1Mpa;

Product Description

1.Details Description

Feature

1.The machine is driven by standard cylinder, with the advantage of high-efficiency and high-quality in crimping strength and speed.

2.can be used to crimp different kinds of terminals

3.different kinds of crimping die can be selected.

4.Accessories with the machine: one die set,One foot valve, two aire pipes

5.There are two storages for storing 10PCS of the extra crimping dies.It is the biggest difference from the old type AM-10.

Specification

Model	AM-30
Crimping range	for non-insulated terminals:≤10mm2
	for pre-insulated terminals:≤6mm2
	for wire end ferrules:≤50mm2
Output force	13.5KN
air pressure range	0.4-1 mpa
carton size	404024cm3
weight	5.5kg

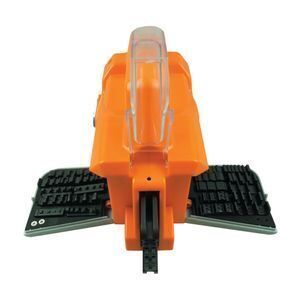

2.Pictures of AM-30 Electrical crimping tool

Packaging & Shipping

1.Trade Items Of Products

Payment	Paypal,T/T,Western Union
Port	Shanghai or Ningbo
MOQ	1set
Supply Ability	100sets/Month
OEM	Accept
Delivery	A.By Courier: 4-7 Working days by special offer
	B.By Air: 7 Working days at appointed airport
	C.By Sea: 20-25 Working days at appointed port
