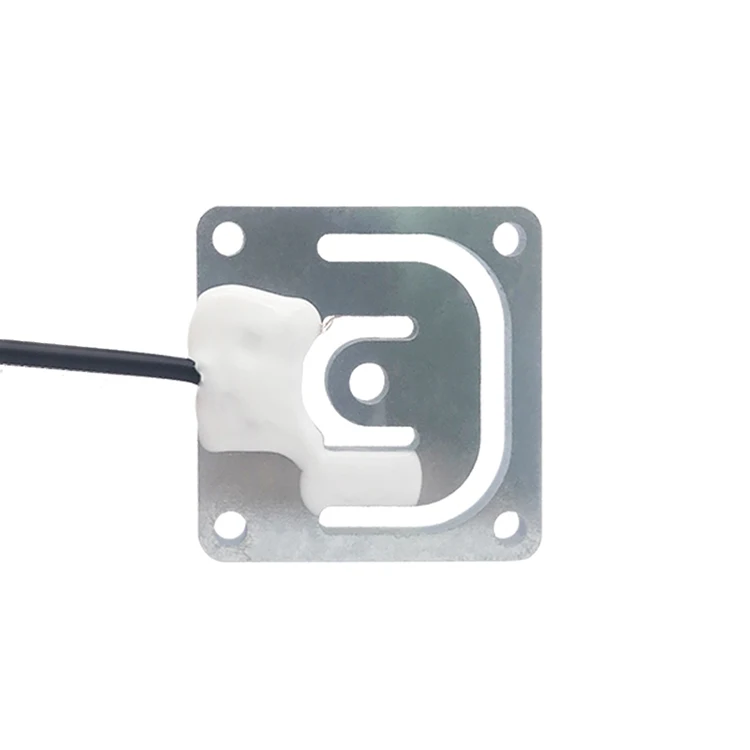

Customized Micro Load Cell Miniature Load Cell With Cheap Price

 Customized Micro Load Cell Miniature Load Cell With Cheap Price

Our Services

Specifications	Results
Capacity	5—150kg
Full scale output	1.0±10%mV/V
Zero un balance	±0.1mV/V
Non-linearity	±0.05%F.S
Hysteresis	±0.05%F.S
Repeatability	±0.05%F.S
Creep	0.05%F.S/30min
Temp.effect on output	0.05%F.S/10℃
Temp.effect on zero	0.1%F.S/10℃
Input impedance	1000±10Ω
Output impedance	1000±5Ω
Insulation resistance(MΩ)	≥5000MΩ/100V
Excitation voltage	3-10V(DC)
Compensated temp. range	-10-60℃
operating temp. range	-20-70℃
Safe overload	150%FS
Ultimate Overload	200%FS
Cable size	UL32AWG-120mm
Wiring code	Input: red (+) black (-) Output: green (+) white (-)
material	Stainless steel or manganese steel

FAQ

1.Are you Manufacturer or trade company?

We are manufacturers

2.Does NL offer any discount?

Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.When will you arrange the production?

We will arrange the production immediately after receiving your payment.

4.What terms of payment are available?

We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

 5.How do you ensure good product quality?

We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?

Yes, we provide 1 year warranty for most of our products.
