7kW DC Wallbox EV Charger Station, CCS2 Plug, 90V-265V, IP54

Our commercial AC EV charging stations are designed to deliver exceptional performance with a 7kW output power. They operate with an input rating ranging from 90V to 265V, and feature an AC input connection of L2+L3+PE (NEMA, JPS). The maximum input current is 32A, and the stations support both 50Hz and 60Hz frequencies.

These chargers adhere to multiple charging protocols including CHAdeMO 2.0, DIN 70121, ISD1S118, IEC61851-23, and IEC61851-24, ensuring broad compatibility with various electric vehicles. The power factor exceeds 0.99, and the efficiency of the station is a high 95%. The output voltage range is from 200V to 750V DC, with a maximum output current of 20A.

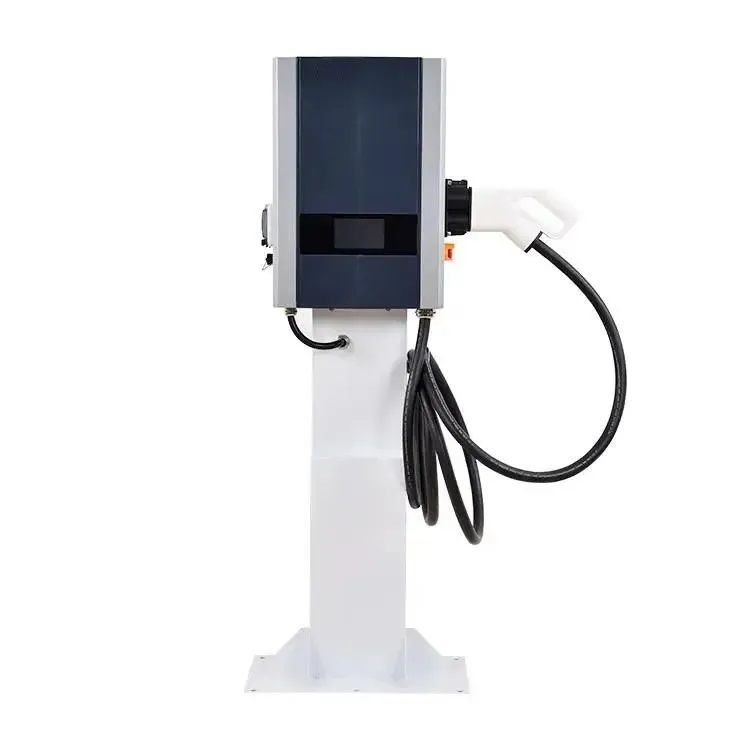

For user interaction, the stations feature a TFT-LCD touch panel along with push buttons. They are compactly packed with dimensions of 548 x 378 x 160mm for the wall-mounted unit and 1500 x 520 x 250mm for the upright unit. The wall-mounted version weighs 22KG, while the upright model weighs 25KG.

The chargers are built to withstand extreme conditions, with an operating temperature range of -40°C to 85°C and are suitable for use at altitudes up to 2000 meters. They come with a 5-meter cable (available in CHAdeMO, CCS, and GB/T configurations), with customized lengths also available upon request.

These stations comply with EN61851-1 regulations and are certified with CE and ROHS, ensuring adherence to international safety and quality standards.
