Rail Corrugation Wear Measuring Gauge digital rail measurement tools
- 950.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
PRODUCT DESCRIPTION

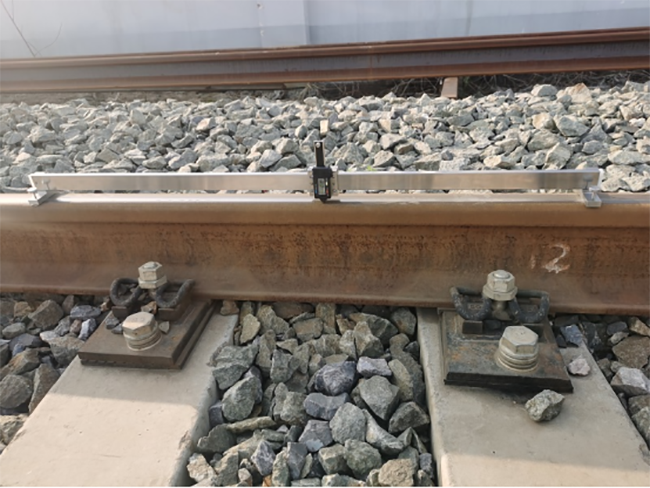

Digital corrugation Wear Gauge is a direct reading measuring tool which is used straight vertical measurement method.It is mainly used for measuring rail top surface and side surface corrugation wear value.
BENEFITS
It’s simple in operation, compact in size, easy to carry, high precision in measurement, reliable in installation and positioning, simple in use Convenient;Easy to site construction, ensure the quality of work.
TECHNICAL DATA
unit(mm)
| Model | LJ-BM-A |
Horizontal measure range | 1000 |
Vertical measure range | -8 - +25 |
Accuracy | ±0.05 |
Resolution | 0.01 |
Repeat error | 0.02 |
Working temperature | -5 - 40℃ |
APPLICATION
This digital corrugation wear gauge is a direct reading measuring tool which is used straight vertical measurement method. It is mainly used for measuring rail top surface and position and side surface corrugation wear value.
