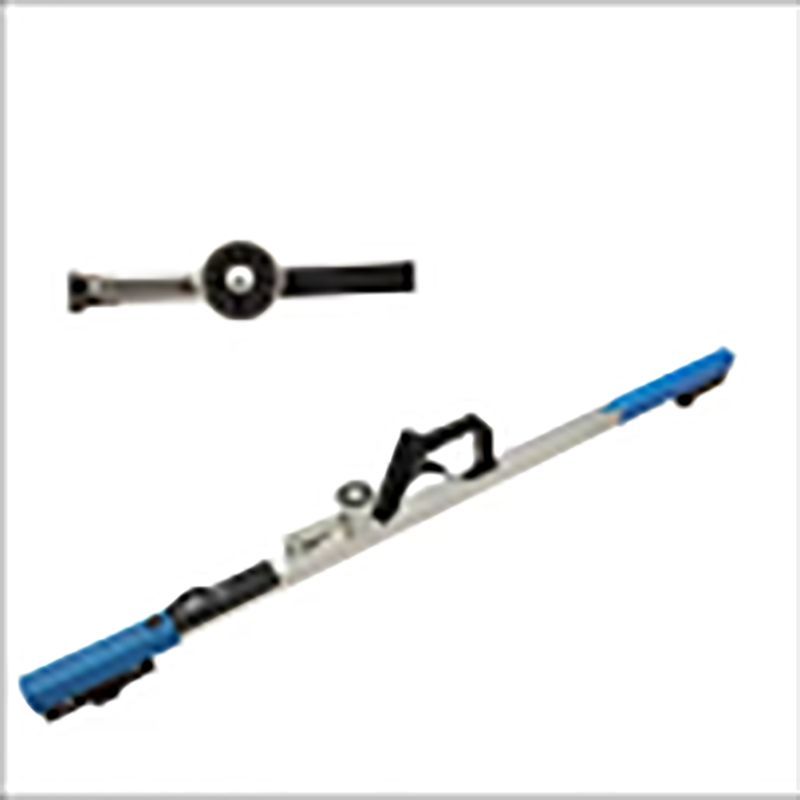

Analogue Railway Track and Switch Gauge Mechanical Track gauge
- 160.00 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
Digital Track Gaug
Digital switch Track Gauge can directly read the measurement values of railway track gauge, super elevation , check rail gauge and back to back distance,flangeway clearance through microelectronics, embedded and sensor tecnologies and OLED display screen.
Features
1. Large LED backlit display: especially suitable for day outside and dark night 2. Quick calibration operation: simple measurement process 3. Large capacity battery:long standby time 4. Accurate measurement:keep long-term stability 5. Temperature compensation :working temperature is -30~+55℃ 6. Insulated design 7. Anti-electromagnetic interference 8. Waterproof:could use in rainy day 9. power saving function: no operation within 15 minutes, the system will automatically shut down. 10. Approval by CRCC , CE certificate.
Specification
Model(1435mm) | TGC-W-II 1435 |
Track gauge(mm) | 1410-1470 |
Check Rail Gauge(mm) | 1381-1401 |
Back to back distance(mm) | 1338-1358 |
Super-elevation range(mm) | -150~+150 |
Super-elevation resolution(mm) | 1 |
Track gauge resolution(mm) | 1 |
Application rail line | railway speed less than 160km/h |
Model for narrow gauge 600mm 900mm 1067mm Model for broad gauge 1520mm 1600mm 1676mm for choose. | |
Company information
Wuhan Linkage Track Equipment Co., Ltd established in 2013. We are the leading manufacturer for railway equipment which are being used all over the world. The track equipment are manufactured keeping in view the stringent quality requirement and with utmost care and dedication to suit the requirements of our esteemed buyers all over the world
